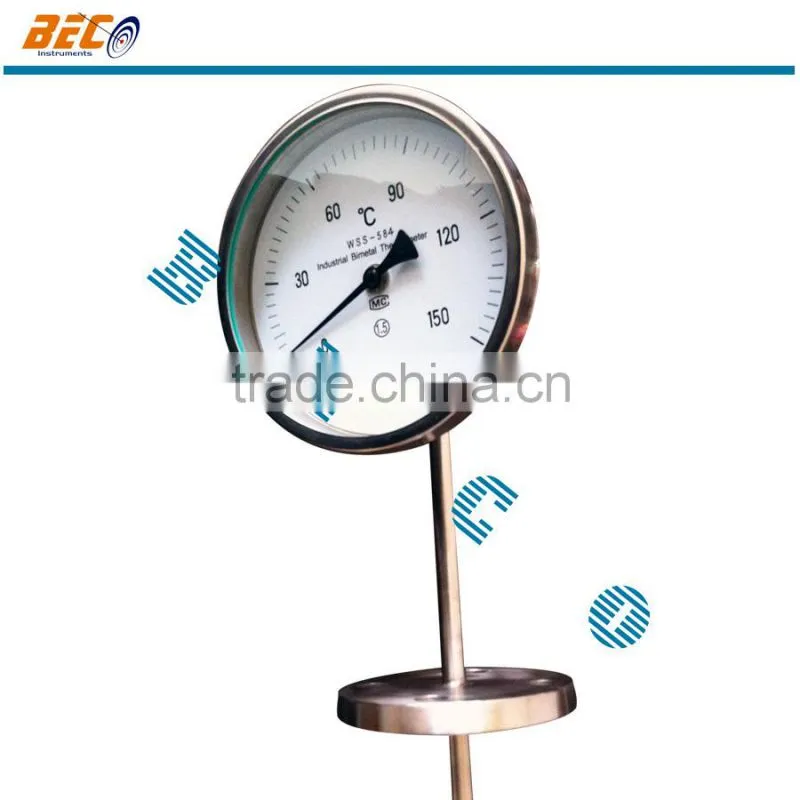

WSS584 Universal bimetallic thermometer for liquid food

Description:

This series of thermometers is designed for installation in pipes, vessels, plant and machinery.

To allow fitting to the process, different installation lengths and process connections are available. Through the high protection class of the thermometer (IP 65) and its liquid damping, operation under high vibration conditions is possible. The imperial nominal sizes are commonly used in worldwide and related field.

Main Specifications:

Measurement Range: -60-500℃;

Accuracy Level: 1.5% FS;

Dial dimension: 2.5”(60mm), 4”(100mm), 6”(150mm);

The Length of Liner: 100-2000 mm;

Liner Diameter: 6mm,10mm( For the lenth of 100-1250mm), 12mm( For 1250-2000mm liner);

Mounting Thread: M16*1.5, M27*2, G1/2”, G3/4” Etc;

Water Protection Level:IP65;

Electric Contact details

Accuracy Level: 1.5% FS;

Rated Power of Contacts: 10VA;

Max Voltage: ~380V or 220V;

Max Current: 1A;

The Working Votage is Between 15V and 48V;

 Ordering information

Model / Connection design / Scale range / Process connection / Stem diameter, material / Insertion length / Options

Products Show:

 Packaging & Shipping

Application:

Heating system;

Hot water tank;

Solar power system;

Heat transfer station.

Chemical industry, petrochemical industry, process

technology and food industry

Facility management

For aggressive medium

1. Your inquiry would be replied within 24 working hours, nomatter weekend or holiday.

2. Customized design is available, OEM and ODM are welcomed.

3. Delivery the goods to our customer all over the world with speed and precision,

4. Offer customer the competitive price with high quality gauges.

5. Well-trained and experienced staff will answer all of your inquires in fluent English.

6. Protection of your sales area, ideas of design and all your private information.

Please Attention:

1. The pressure gauges work in the temperature of -40℃ to 70 ℃, higher or lower temperature would leads to extra measurement error;

2. If the pointers or movement are not work properly, please contact us, we will teach you how to fix that or change the another gauges for you;

3. Collision or harsh vibration will break the guages, please move the gauges carefully;

4. Before using, please make sure that the pointer is in the zero point, or the gauges are not be available;

5. For the measurement of steam pressure, please connect the gauges with a spiral pipe, or not high temperature steam would enter the bourdon tube, that would affect the accuracy level, even lead to leakage.
