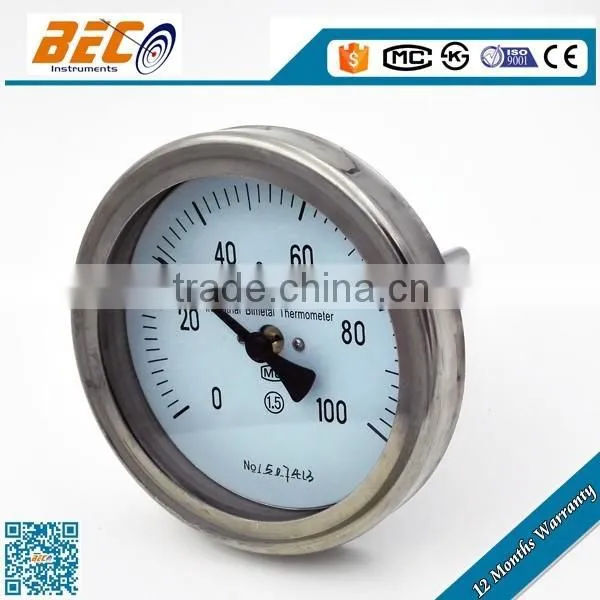

All stainless steel back connection 4" dial bimetal thermometer

Description:

This series of thermometers is designed for installation in pipes, vessels, plant and machinery.

To allow fitting to the process, different installation lengths and process connections are available. Through the high protection class of the thermometer (IP 65) and its liquid damping, operation under high vibration conditions is possible. The imperial nominal sizes are commonly used in worldwide and related field.

Main Specifications:

Measurement Range: -60-500℃;

Accuracy Level: 1.5% FS;

Dial dimension: 2.5”(60mm), 4”(100mm), 6”(150mm);

The Length of Liner: 100-2000 mm;

Liner Diameter: 6mm,10mm( For the lenth of 100-1250mm), 12mm( For 1250-2000mm liner);

Mounting Thread: M16*1.5, M27*2, G1/2”, G3/4” Etc;

Water Protection Level:IP65;

Electric Contact details

Accuracy Level: 1.5% FS;

Rated Power of Contacts: 10VA;

Max Voltage: ~380V or 220V;

Max Current: 1A;

The Working Votage is Between 15V and 48V;

 Ordering information

Model / Connection design / Scale range / Process connection / Stem diameter, material / Insertion length / Options

Products Show:

 Packaging & Shipping

Application:

Heating system;

Hot water tank;

Solar power system;

Heat transfer station.

Chemical industry, petrochemical industry, process

technology and food industry

Facility management

For aggressive medium

1. Your inquiry would be replied within 24 working hours, nomatter weekend or holiday.

2. Customized design is available, OEM and ODM are welcomed.

3. Delivery the goods to our customer all over the world with speed and precision,

4. Offer customer the competitive price with high quality gauges.

5. Well-trained and experienced staff will answer all of your inquires in fluent English.

6. Protection of your sales area, ideas of design and all your private information.

Please Attention:

1. The pressure gauges work in the temperature of -40℃ to 70 ℃, higher or lower temperature would leads to extra measurement error;

2. If the pointers or movement are not work properly, please contact us, we will teach you how to fix that or change the another gauges for you;

3. Collision or harsh vibration will break the guages, please move the gauges carefully;

4. Before using, please make sure that the pointer is in the zero point, or the gauges are not be available;

5. For the measurement of steam pressure, please connect the gauges with a spiral pipe, or not high temperature steam would enter the bourdon tube, that would affect the accuracy level, even lead to leakage.

BECO is one of the leading measurement instruments supplier of high quality,competitively priced pressure gauges, temperature gauges, pressure transmitter and those pressure and temperature measurement instruments. BECO.CN’s products offering include bourdon tube type pressure gauges, diaphragm capsule pressure gauges (For micro pressure situation ). With internal parts made of stainless steel,brass/bronze, stainless iron. Pressure gauges’  dimension range from 1 inch to 8 inch. Other products include bimetallic thermometers from 2.5 inch to 6 inch in dimension as well as thermowells, pressure transmitter.

BECO are young, energetic, optimistic and friendly, totally committed to meet everyone requirement from our clients. We promise that every inquiry would be replied within 24 hours. Also senior engineer waiting here to solve all your confusion of our instrument.

1. What kind of payment terms are acceptable ?

Beco: Currently we accept T/T, WN payment.

For small oders( Less than 1000 USD), full payment in advance;

For bulk orders, 30% payment in advance, balance done before delivery.

2. What is the delivery time?

Beco: Small orders: 10 days;

Bulk orders: 15-20 days.

3. What’s the products quality warranty ?

Beco: The products quality warranty is 12 months.

4. How do you ship the pressure gauges and other products ?

Beco: Before shipping, we use PC bag, corrugated carton, buble pack and buble box to pack the gauges carefully.

Shipping Method:

Express: FedEX, UPS, TNT, EMS etc. We provide cheaper, safer, faster delivery;

By Air: In some area, the freight by air is more expensive than express, plese attention;

By Sea: The most economic delivery, but take long time.

5. How do you control your products quality ?

Beco: All our products have passed CMC, ISO9001:2008, CE certificates.  Besides, all material need to be inspected before using. All products need to be callibrated for twice during manufacturing.

6. Can you supply OEM/ODM service ?

Beco: Yes, OEM service is available. Also, our engineer is professional in this field over 10 years, we’ll provide all what we can to help you with ODM service.
