Computer Data Transfer Cable
US$ 0.2 - 26.9
MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
Hengfei
Model Number:
DJYPVP
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or according to your requirement
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UL2464 Computer Cable/Instrumentation CableUS$ 0.2 - 26.9MOQ: 500 Meters -
28AWG Neon Computer CableUS$ 0.2 - 26.9MOQ: 500 Meters
-
Low Voltage Computer Interface CableUS$ 0.2 - 26.9MOQ: 500 Meters
-
Power Switch Computer CableUS$ 0.2 - 26.9MOQ: 500 Meters
-
500V Computer Peripheral CableUS$ 0.2 - 26.9MOQ: 500 Meters
Place of Origin
Hunan, China
Brand Name
Hengfei
Model Number
DJYPVP
Conductor Material
Copper
Insulation Material
PE
Jacket
PVC
Number of Conductors
Single core or multi-core
Application
computer,network
Specifications
1.Standard:IEC608892.Certificate:CQC ,3C
3.Strict QC
4.99.95% purity copper conductor
5.Free sample
Computer Data Transfer Cable
Application
This series of cable is applied to rated voltage 500V and below,can be used as the connection lines of the computers and automatic equipment which have higher requirement for the anti-jamming. The core of the cable used low density polyethylene which has perfect chemical stability.PE with high insulation resistance, good voltage rsistance,small dielectric coefficient and little influence on dieletric loss from the effects of temperature and frequency,not only can meet the performance quirements,but also ensur the life of cable.

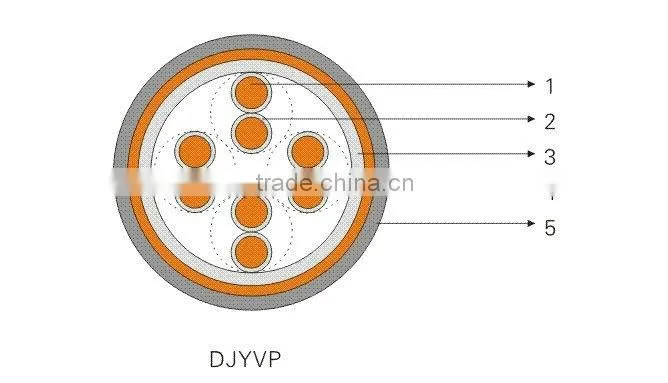

Construction
1. Conductor 2.Insulation 3.Tape
4.Braid shield 5.Sheath
Technical data
Rated voltage: 0.6/1KV
Highest long working temperature of conductor: 70°C
Laying temperature:above -15°C
Minimum bending radius:12D
Product description
| Type | Descfiption | Application |
| DJYPVP | PE insulation pair group copper wire braided separate shield and general shield PVC sheath computer cable | Fixed installation indoor, in cable trench or in the pipenline |
| DJPY2VP2 | PE insulation pair group copper tape separate shield and general shield PVC sheath computer cable | |
| DJYP3VP3 | PE insulation pair group aluminum/plastic composite tape separate shield and general shield PVC sheath computer cable | |
| DJYVPR | PE insulation pair group copper wire braided general shield PVC sheath computer flexible cable | Applied to the need of frequently move or soft area |
| DJYVP2R | PE insulation pair group copper tape general shield PVC sheath computer flexible cable | |
| DJYVP3R | PE insulation pair group aluminum/plastic composite tape general shield PVC sheath computer flexible cable | |
| DJYPVR | PE insulation pair group copper wire braided separate shield PVC sheath computer flexible cable | |
| DJYP2VR | PE insulation pair group copper tape separate shield PVC sheath computer flexible cable | |
| DJYP3VR | PE insulation pair group aluminum/plastic composite tape separate shield PVC sheath computer flexible cable | Applied to the need of frequently move or soft area |
| DJYPVPR | PE insulation pair group copper wire braided separate shield and general shield PVC sheath computer flexible cable | |
| DJYP2VP2R | PE insulation pair group copper tape braided separate shield and general shield PVC sheath computer flexible cable | |
| DJYP3VP3R | PE insulation pair group aluminum/plastic composite tape separate shield and general shield PVC sheath computer flexible cable | |
| DJYVP22 | PE insulation pair group copper wire braided general shield steel tape armoured PVC sheath computer cable | Directly buried |
| DJYVP2-22 | PE insulation pair group copper tape general shield steel tape armoured PVC sheath computer cable | |
| DJYVP3-22 | PE insulation pair group aluminum plastic composite tape general shield steel tape armoured PVC sheath computer cable | |
| DJYPVP22 | PE insulation pair group copper wire braided separate shield and general shield steel tape armoured PVC sheath computer cable | |
| DJYP2VP2-22 | PE insulation pair group copper tape separate shield and general shield steel tape armoured PVC sheath computer cable | |
| DJYP2VP3-22 | PE insulation pair group aluminum/plastic composite tape separate shield and general shield steel tape armoured PVC sheath computer cable |
