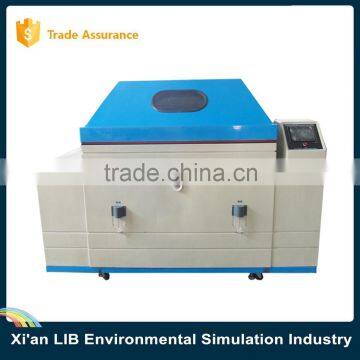

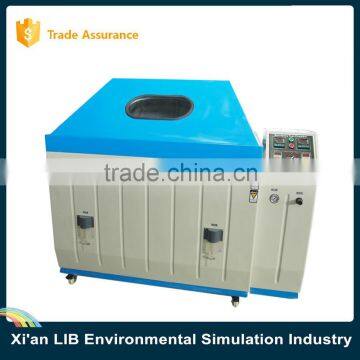

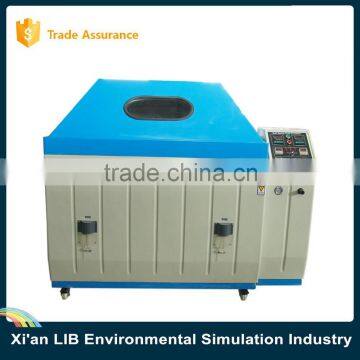

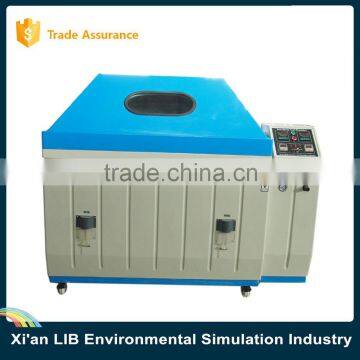

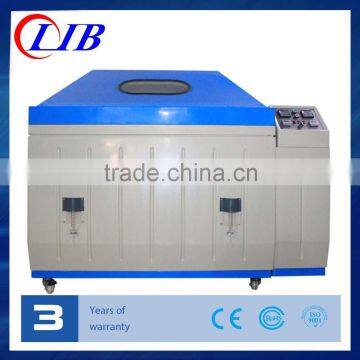

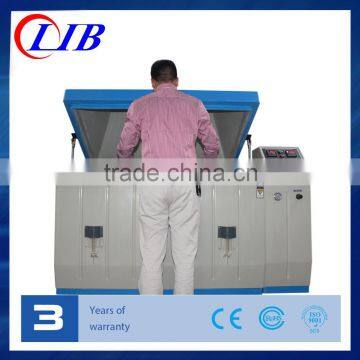

BS 6949 Salt Spray Test
BS 6949 Salt Spray Test
Perform salt spray corrosion testing
Small Size & Medium Size & Large Size
Comply with international standards as ASTM, IEC, ISO, DIN, MIL, JIS
Technical Information
Model |
S-150 |
S-250 |
S-750 |
S-010 |
S-016 |
S-020 |
|||||
Internal dimensions (mm) |
450*600*400 |
600*900*500 |
750*1100*500 |
850*1300*600 |
850*1600*600 |
900*2000*600 |
|||||
Overall dimensions (mm) |
800*1080*1080 |
870*1400*1150 |
1150*1750*1400 |
1250*2000*1550 |
1250*2300*1550 |
1300*2700*1550 |
|||||
Technical structure | |||||||||||
Temperature range |
Ambient ~60℃ |
||||||||||
Humidity range |
95% ~ 98% RH |
||||||||||
Temperature fluctuations |
+/- 0.5 ℃ |
||||||||||
Temperature deviation: |
+/- 2.0 ℃ |
||||||||||
Test time |
1~999 hours, settable |
||||||||||
Spray deposition |
1~2ml / 80cm2 · h |
||||||||||
Spray type |
Continuous / Periodic |
||||||||||
Temperature Controller |
LED display, P.I.D+S.S.R. microcomputer integrated controller |
||||||||||
5.7" programmable color display touch screen controller (option) | |||||||||||
Temperature sensor |
Platinum resistance. PT100 / MV A-class |
||||||||||
Salt fog collected |
With standard funnel and metering cylinder |
||||||||||
salt water filtration |
With water filter near the suctiontubes( Avoid the nozzle blockage) |
||||||||||
Salt water preheating |
The temperature for salt water should be equal with workroom temperature |
||||||||||
Spraying system |
Tower spray and nozzle without crystallization(Fog is more fine and uniform distribution) |
||||||||||
Interior /Exterior material |
Glass fiber reinforced plastics; (corrosion resistance, Anti-aging, high strength) |
||||||||||
Standard configuration |
round bar / 1 piece; sample holder / 1 piece; spray nozzle / 2 pieces; Fog collectors / 2 pieces; metering cylinder / 2 pieces |
||||||||||
safety device |
Humidifier dry-combustion protection, independent over-temperature protection, water shortage protection, over-current protection, refrigerant high-pressure protection switch, over-current circuit breaker, earth leakage protection and so on. |
||||||||||
Sealing |
Hydrostatic hood seal |
||||||||||
Standard |
ISO 3768/3769/3770, DIN50021-75, ASTM B-117, JIS H8502, IEC 68-2-11,IEC68-2-52, MIL-STD-750, ISO 9227 |
||||||||||
Nominal Power |
2500W |
3500W |
4500W |
6500W |
8500W |
11000W |
|||||
Power Supply |
AC220V 50HZ |
AC220V 50HZ |
AC220V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
AC380V 50HZ |
|||||

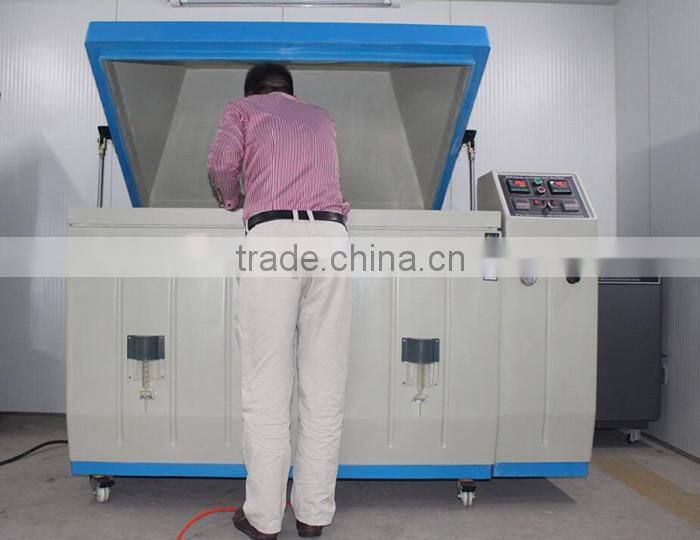

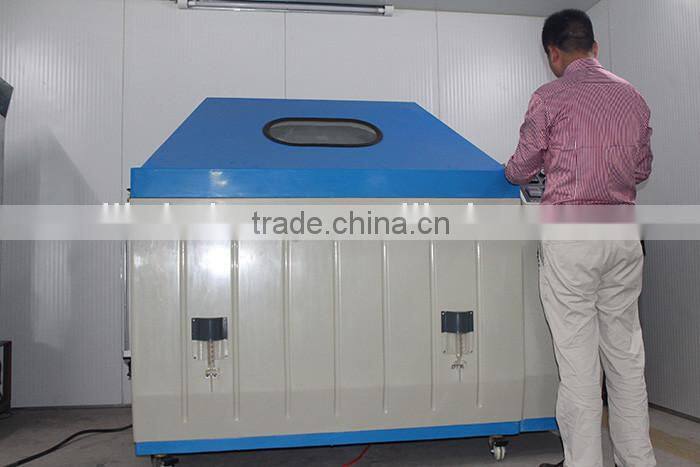

Fog Chamber and Bracket
Chamber is made from Glass fiber reinforced plastics,material is corrosion resistance, Anti-aging, high strength.
Hydrostatic hood seal
Test specimen bracket / holder
Atomizer Tower and Nozzle
Corrosion resistance atomizer tower. quartz spray nozzles
No crystallization of atomizer tower spray and nozzle.
2 collectors in fog chamber.

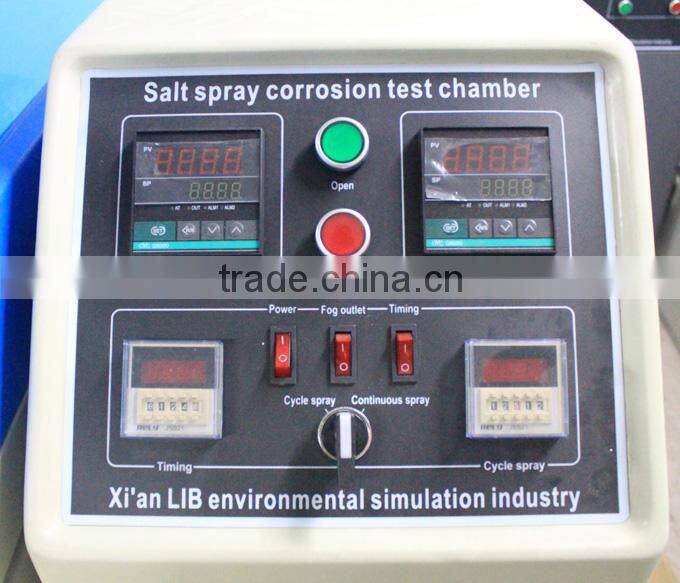

Control Panel
LED display, P.I.D+S.S.R. microcomputer integrated controller
5.7" programmable color touch display controller (option)
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
