Specifications
lotion filling machine1.filling100-1000ml
2.filling precision 1%
3.filling 3600 bph

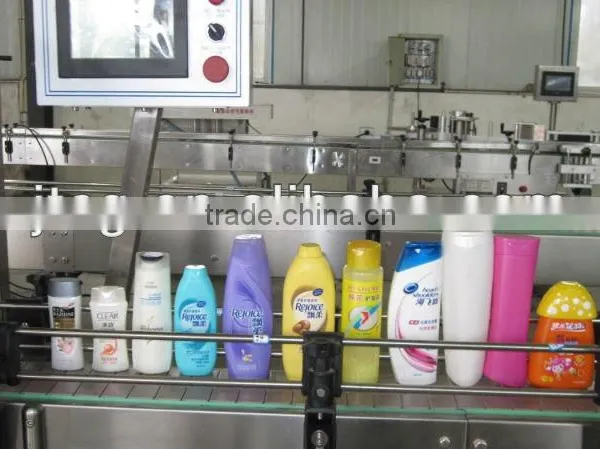

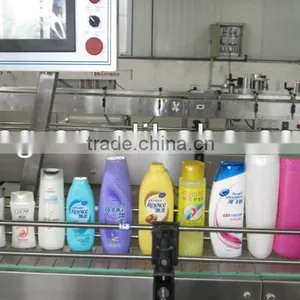

4.filling lotion,shampoo,daily chemical

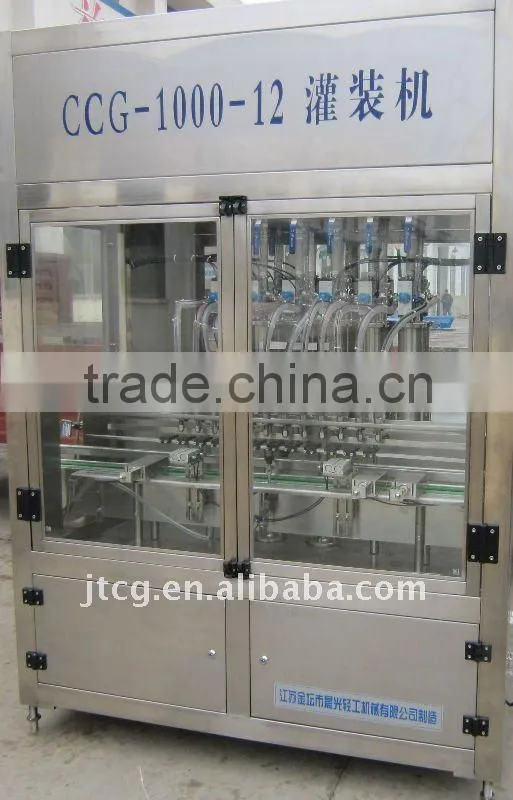

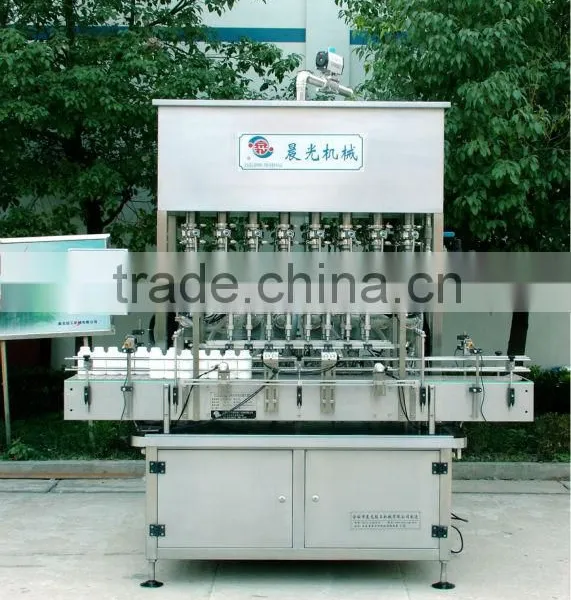

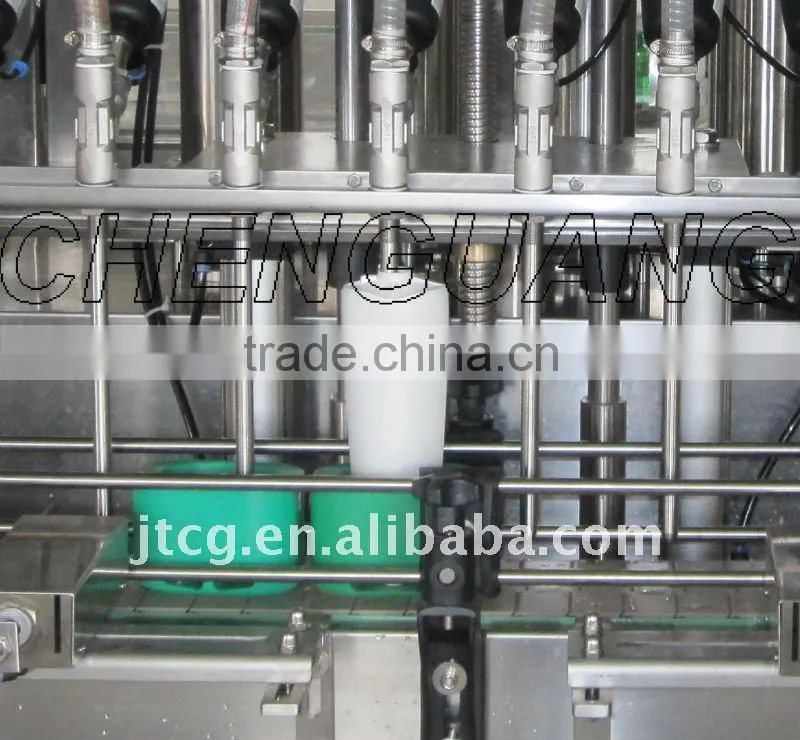

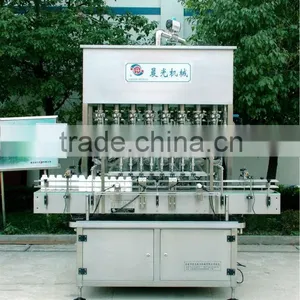

CCG1000-8 Automatic Lotion Filling Machine
For different filling speed requirements, you can choose 4 / 6 / 8 / 10 / 12 heads filling machines.
Technical performance:

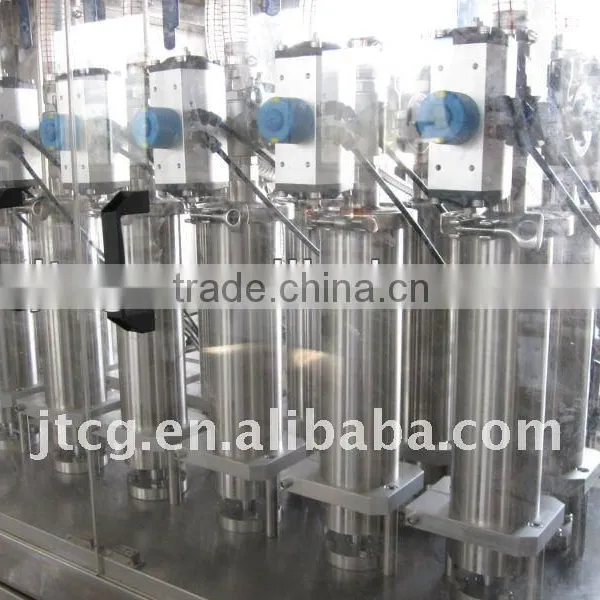

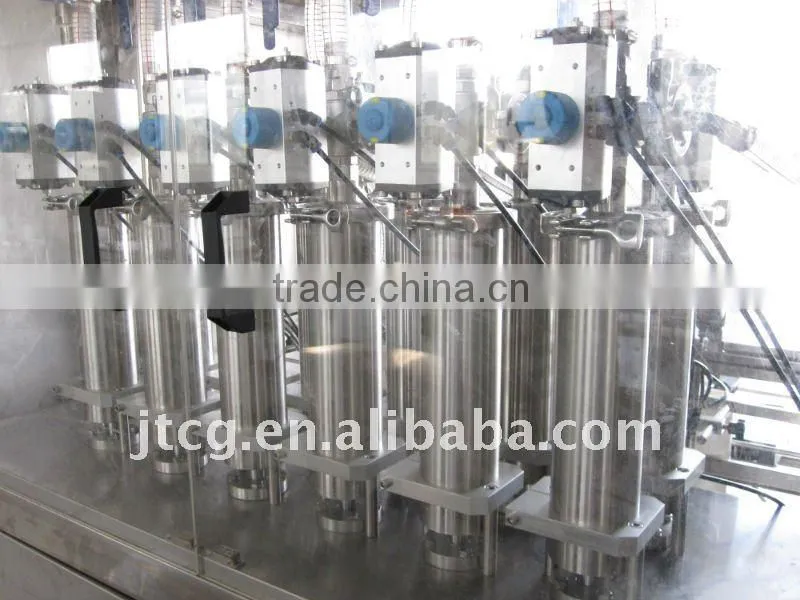

The filling process is under control of PLC. All operations complete on the touching screen. It adopts the piston filling way. It has the characteristics of simple structure, stable run and convenient operation. It is fairly ideal and economic filling equipment within chemical, daily chemical, food, cosmetic, medicine and pesticide etc, and especially fitting for high-viscous materials, like oil, seed coating agent, etc.
Technical parameters:
Filling head |
8 heads (4//6/8/10/12 heads can be selected) |
Application |
200ml-1000ml (various bottle shapes) |
Voltage |
220V/380V |
Power |
1Kw |
Suitable bottle diameter |
50mm-110mm |
Filling error |
≤ ±1%. |
Filling Speed |
≤ 3600bottles/hour (100ml water for test) |
Overall Dimension |
2000mm × 1100mm × 2200mm |
Air source requirements |
stable 0.55Mpa-0.65Mpa air |
Machine weight |
600 kg |
Performance advantages:
1. Control system---- Mitsubishi PLC control system, random minitrim filling measurement
2. Control panel----7in. color screen, easy-operated , stable and reliable

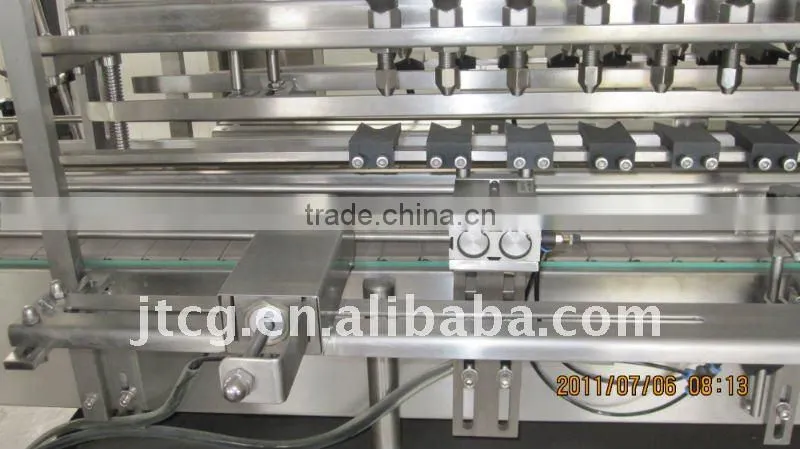

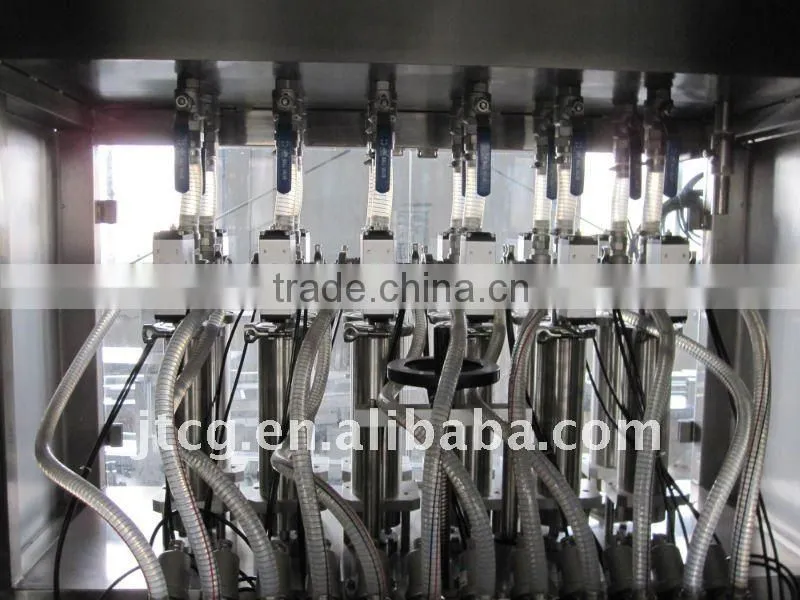

3. Function improvement----The feeding nozzle is equipped with filling blocker(prevent leaking, dropping and drawing). This machine can realize diving filling according to the material properties.(this function can be selected)
4 .Real-time alarm---Automatic alarming when the fault happens, automatic stopping and alarming when the system
appears serious breakdown.
5.Electrical elements----Adopting international famous brand to ensure the remarkable quality, stability and high precision.
6.Machine elements----The parts contacted with the material use the 316 high-quality stainless steel and non-poisonous, anti-corrosive PTEF hose. Other machine parts use the 304 high-class stainless steel
7. Counting detection----Real- time counting, reflecting the output directly.
8. Filling detection----No-bottle no-filling, it will not conduct filling if the bottles are not enough.
9. Maintenance condition----Fully accords to the GMP requirements, easy to disassemble and clean.
10. Changing specification----No need to change any components, easy to realize changing the bottle types by simple adjust
11. Environmental protection configuration----Equipped with eco-friendly frame, realizing more clean and sanitary operating environment.
