Main characteristic:

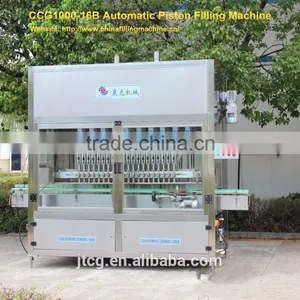

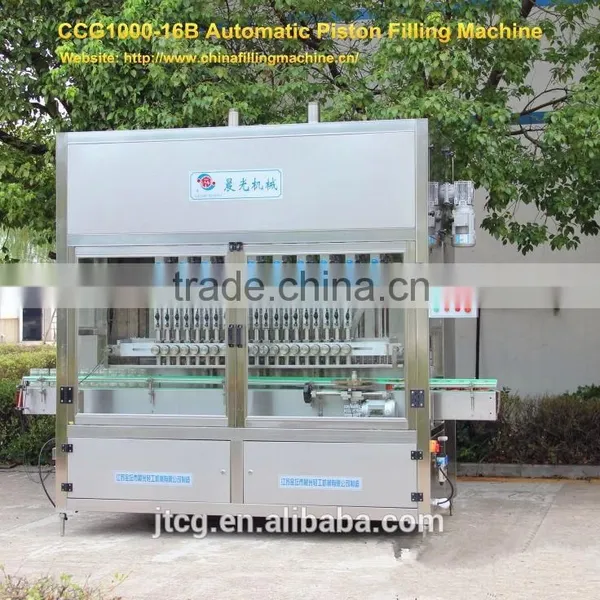

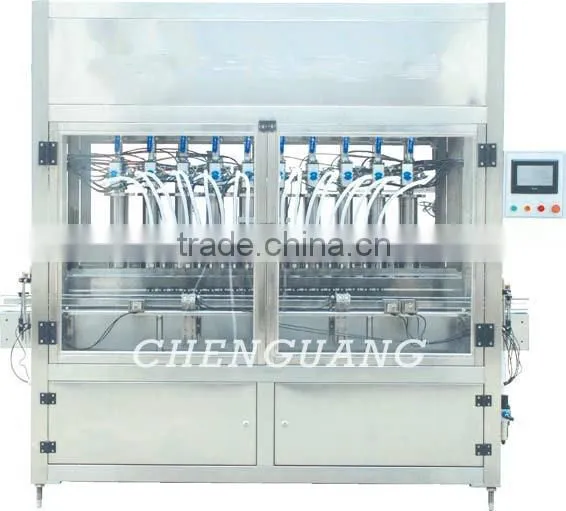

This automatic filling piston filler is mainly used for viscosity liquid filling & applicable for different shape containers, wide used in Chemical, Food, Pharmaceutical, Oil and other many industries. The main machine is composed of piston filler, inside hopper. It can be connected with capping machine, labeling machine, date/ batch coding machine, etc to perform a complete production line.

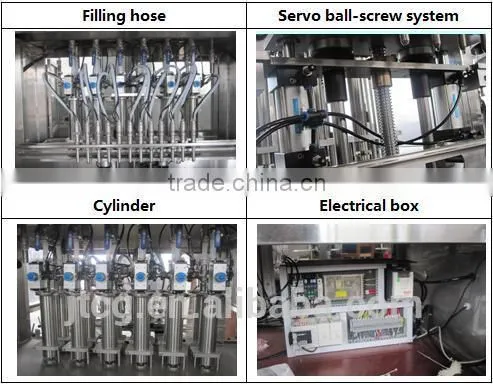

1. This machine adopts servo ball-screw system to drive the piston cylinder, which can fill high viscosity material, such as Oil, Sauce, Ketchup, Honey, Lubricant oil, etc;
2. Heating & Agitating device inside hopper is optional according to production request, max heating temperature to 40°c to helps melt the filling materials.
3. If filling material is a foamy liquid, diving function device is optional to sure no overflowing while filling.
4. Machine automatic self-clean function is optional. Use the pneumatic diaphragm pumps draw the clean solvent into filling machine hopper, by cycle filling to clean the hopper and filling nozzles.
5. The PLC programmable system was applied, and use color touch screen to form the control center, automatically adjust the filling speed. The control center language can be set to English, Latin, Polish, Japanese, Chinese, Korean, etc.
6. The stainless stell, non-poisonous & anti-corrosive PTEF hose are applicable for excellent durability and sanitation compliance.
Technical Parameters:
| Filling Nozzles | 16 heads (can be selected more or less according to production requirements) |
| Filling Volume | 50ml ~1000ml |
| Suitable Bottle Opening | Φ 50mm ~ Φ 110mm |
| Filling Speed | ≤ 6400 bottles / hour (200ml water) |
| Voltage | 3 phase 4 wire, 220V/380V |
| Power | 1Kw |
| Air Pressure | 0.55-0.65Mpa |
| Air Consumption | 0.6 ~ 0.9 m3/min |
| Material | Stainless Steel 316 & 304 (upon request) |
| Precision | ≤±1% |
| Dimension | (L) 3000mm x (W) 1100mm x (H) 2200mm |
| Weight | 800 Kg |
| Country Origin | China |
Suitable Products:
CCG1000-16B Automatic Piston Filling Machine
01. High Efficiency/ Low cost --- >
- High precision of packing measuring
- High qualified rate, high capacity, fast changing
- Less labor, simple operation, easy maintenance
02. Clean working --- >
- No drip, easy to clean, no dust or odor
- Excellent durability and sanitation compliance
- Outside: Standard Export Wooden Case Pack
- Inner: Stretch Film
1. Technicial guidance & pre-maintain;
2. Quality guarantee for 1 year.
3. Able to send engineer to install & maintain. (Hotel & delivery fee paid by customer);
4. You are welcome to share us the sample to test machine;
Contact:
Jennifer
JIN TAN CHENGUANG LIGHT-INDUSTRY MACHINERY CO., LTD
ADD: No. 198, 2nd Road, South Circle Jintan, Jiangsu Province, China
QQ: 1241498672
Tel: (86) 519 - 6808 8770
Company Profile
Jintan Chenguang Light-Industry Machinery was founded in 1996, which is a high-tech company focusing on R&D and producing packaging machinery.
The company is located in Jintan, Jiangsu Province, Yangtze River Delta. To the east lies Shanghai; to the west Nanjing. It takes about an hour to reach Changzhou railway station or Nanjing airport. Our company covers an area of 18,000 m² and building area 8,456 m² with registration capital of RMB6,000,000. The main products are brand "JING JIU" series filling machine, capping machine, labeling machine, pouch packaging line and related auxiliary equipments such as the bottle unscramble, bottle feeder, cap sender, cap sorter, packing table, etc. Many techniques have obtained Chinese Patents. Company's products have been purchased by more than 20 provinces, 600 clients home and abroad. Due to convincing quality and excellent service, our company enjoys a high requtation in this field.
Because our company has been sticking to the Technological innovation and relying on many colleges and institutes, we possess a series of independent intellectual property rights products and techniques. So far, the company has developed eight patent new products, won eighteen National Patent, and has two High-tech products in Jingsu Province. As early as 2003 the company was rated as "high-tech enterprises", in 2013, we earned the award of "China 10 outstanding manufacturer of in-household care products industry". Apart from the innovation, we also lay emphasis on inner management as well as brand construction. At present, our company has passed ISO9001 & ISO14000. Since 2002, JINGJIU has been awarded famous-brand products in Jiangsu Province for eleven years in a row. In 2013, JINGJIU was awarded Well-know trademarks of Changzhou City.
Welcome to visit Chenguang to create our prosperous future all together.
