China compaies for ozone test equipment
| Model | OC-100 | OC-250 | OC-500 | OC-010 |
| Workroom dimensions (mm) | 450*450*500 | 500*600*750 | 700*800*900 | 1000*1000*1000 |
| Exterior dimensions (mm) | 1150*900*1650 | 1200*1100*1900 | 1350*1280*2100 | 1650*1480*2200 |
| Power | 4.0(KW) | 4.5(KW) | 4.5(KW) | 6.5(KW) |
| Temperature range | 0℃~70℃ | |||
| Humidity range | ≥65%R.H | |||
| Temperature fluctuation | ±0.5℃ | |||
| Speed rate for cooling | Ambient temperature ~ 0℃ within 20 min. | |||
| Timing range | 0~999 hours | |||
| Ozone concentration | 0~10000PPHM (Adjusted) | |||
| Air flow speed | 12-16mm/S | |||
| Sample holder rotate speed | 1 r/min (adjustable) | |||
| Clamps tensile stretch | 5%~35% | |||
| Max. ozone concentration | 120gO3/m³ | |||
| Ozone output | 3.5gO3/h ((oxygen input, flow rate 100L/h) | |||
| Standard | ASTM D 1149 | |||
| Power & voltage | AC 380V 50HZ | |||
Design and Construction
Test area and shelf
Test area is made of stainless-steel
Dynamic shelf which on put test specimen.
Control Panel
5.7" programmable color touch display controller
Setting mode: touching type
Program: 100 groups in 999 sections
PC Link with software
Cooling system
TECUMSEH from France
Environment friendly Refrigerant R404A & R23
Ozone Generator
Ozone test chamber equipped with ozone generator.
Sensors
Temperature sensor PT-100 A class
Humidity sensor Dry and wet bulb sensors
Resolution: temperature: ± 0.01 ℃; humidity: ± 1%RH
Safety protection
Humidifier dry-combustion protection
Independent over-temperature protection,
Over-current protection
Refrigerant high-pressure protection switch
Over-current circuit breaker
Earth leakage protection and so on

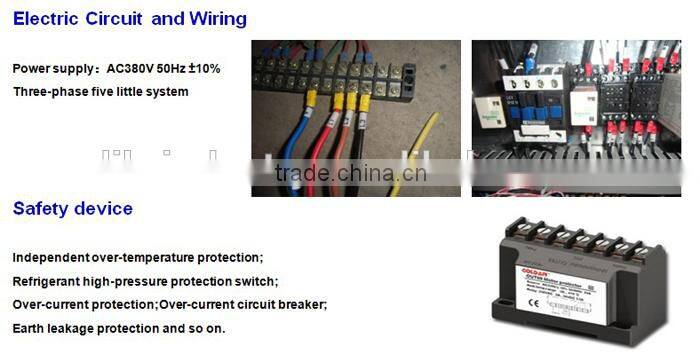

Power supply and Wiring
380V, 50 Hz 10% +/-
Three-phase five little system
Installation conditions
Ambient Temperature 5℃~+30 ℃ ≤85% RH
Test chamber should be away from wall over 80 cm to
adequately ventilate and heat dissipation
Export Standard Wooden Package
Packed in standard export packing material.
Can be used for Sea, Air,Railway, Truck transportation.
Three years Warranty ; Lifelong Service
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 25 days , if you need in urgent , we can speed up the production ,will short to 15 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
