Dust Deposition Chamber
Product Description

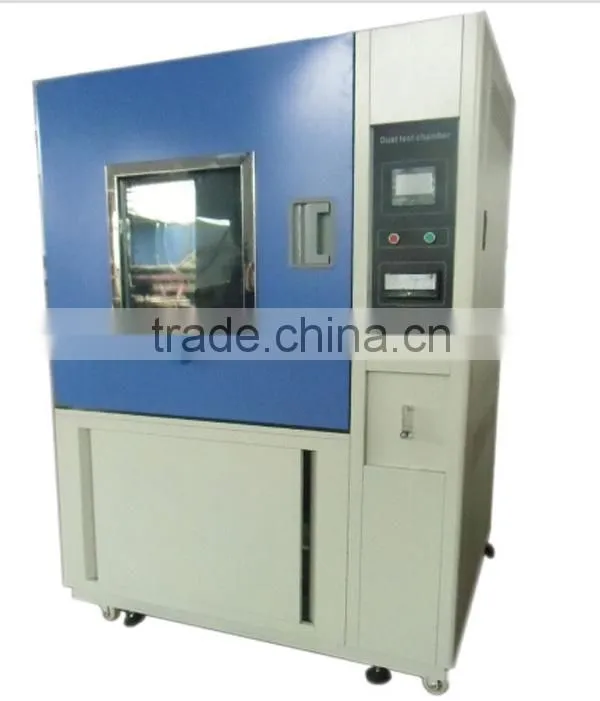

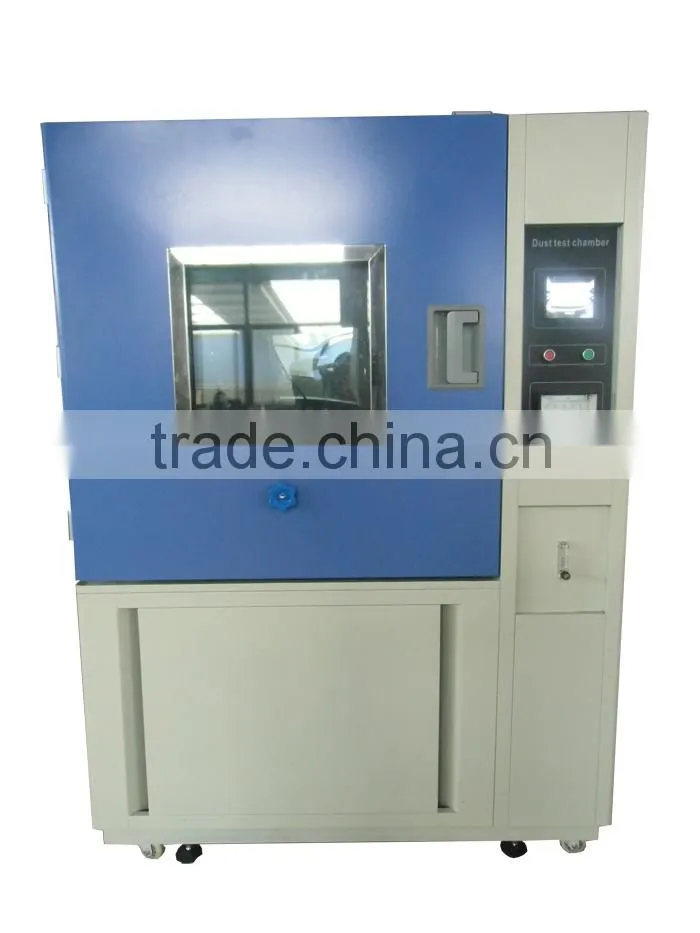

Dust Deposition Chamber
Main Technology Parameters
| Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
| Internal dimensions | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1200*1800*1200 |
| Overall dimensions | 1050*1420*1820 | 1250*1420*1820 | 1250*1900*1820 | 1500*2200*2200 |
| Performance index | ||||
| Normal wire diameter | 50um | |||
| Normal width of a gap between wire | 75um | |||
| The Talcum powder amount | 2kg ~ 4kg/m3 | |||
| Fight time | 0 ~ 99H59M | |||
| Fan cycle time | 0 ~ 99H59M | |||
| Specimen power outlet | Dust-proof socket AC220V 16A | |||
| Control system | ||||
| Controller | 5.7" programmable color display touch screen controller | |||
| PC Link with software, R-232 interface | ||||
| Vacuum system | Equipped with a pressure gauge, air filter, pressure regulator, connecting tube | |||
| Circulating fan | Enclosed alloy low-noise motor, multi-vane centrifugal fan | |||
| Heating system | Independent Nichrome electronic heating system | |||
| Safety Devices | Electric leakage, short circuit, Over-temperature, motor overheating Over-current protection/ Power failure memory function for controller | |||
| Note: The test chamber can meet the standards IEC60529 GB2423,GB4706,GB4208, and satisfy the experiment requirements of parts enclosure protection grade for household appliances for DIN,low-voltage apparatus, automobiles,motorcycle. | ||||

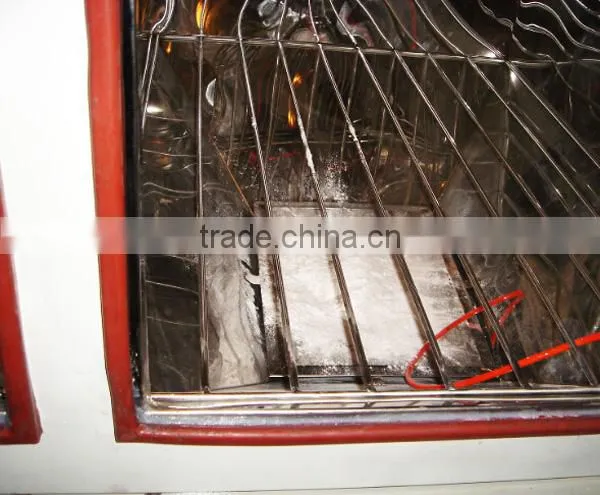

Test Area And Shelf
1. Is made of stainless-steel;
2. A shelf is located above the sieve and funnel, you can put test specimen on it;
3. Load of shelf is 50kg (If you need heavier load, please confirm with us);
Controller Panel
5.7'' programmable color touch display;
99 programs 99 sections;
R-232 interface;
PC Link with software;
Show total process time on controller;
Dust Deposition Chamber
Packaging & Shipping
Export Standard Wooden Package
Can be used for Sea, Air, Railway, Truck transportation.
Our Services
3 Years Warranty
