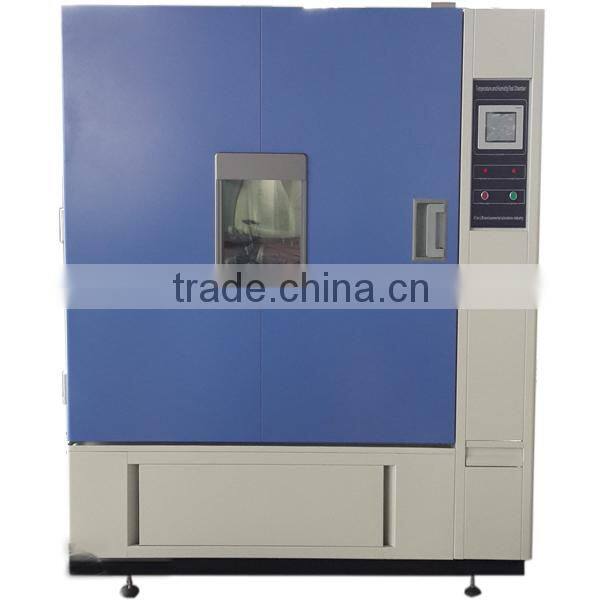

Laboratory Apparatus Used Physics Dry Aging Machine
Laboratory Apparatus Used Physics Dry Aging Machine
Main Technology Parameters
Model |
0-100 |
0-225 |
0-500 |
0-800 |
0-1000 |
Workroom size (mm) |
450*450*500 |
500*600*750 |
800*700*900 |
800*1000*1000 |
1000*1000*1000 |
Exterior size(mm) |
750*880*850 |
800*950*1000 |
1100*1100*1300 |
1100*1450*1400 |
1300*1400*1400 |
Technical structure | |||||
Temperature range |
RT+10℃~+250 ℃ (Max to 400℃) |
||||
Temperature fluctuations |
± 0.5 ℃ |
||||
Temperature deviation |
± 2.0 ℃ |
||||
Heating rate |
about 6 ℃ / min |
||||
Control system | |||||
Controller |
Digital PID Temperature Control |
||||
Sensor |
PTR Platinum Resistance PT100 |
||||
Heating system |
Independent Nichrome electronic heating system |
||||
Circulatory system |
Cold resistance and low noise centrifugal wind wheel |
||||
Used material | |||||
Exterior material |
Carbon Steel Plate with antistatic hull painting |
||||
Interior material |
SUS304 stainlesssteel |
||||
Insulation window |
Double thermostability silicone rubber sealing |
||||
Standardconfiguration |
1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1 overflow water tube, 1 copy of operating specification |
||||
Timing Function |
0.1~999.9 (S,M,H) settable |
||||
Power Supply |
AC220V 50HZ |
||||
Ambient Temperature |
5℃~+30 ℃ ≤85% RH |
||||
Standard |
GB/T2423.1-2001; GB/T2423.2-2001 |
||||
Small Volumes Oven

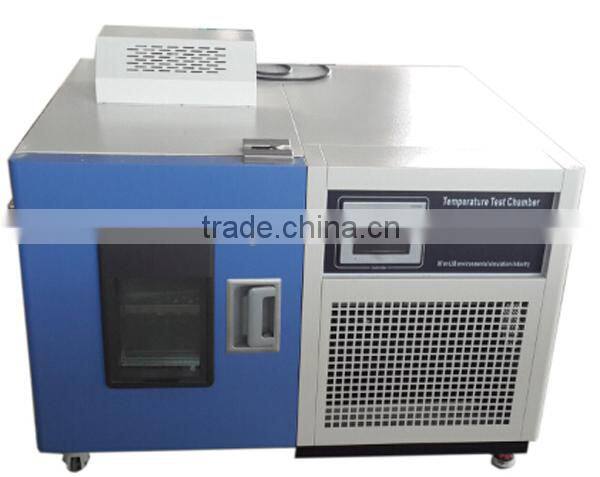

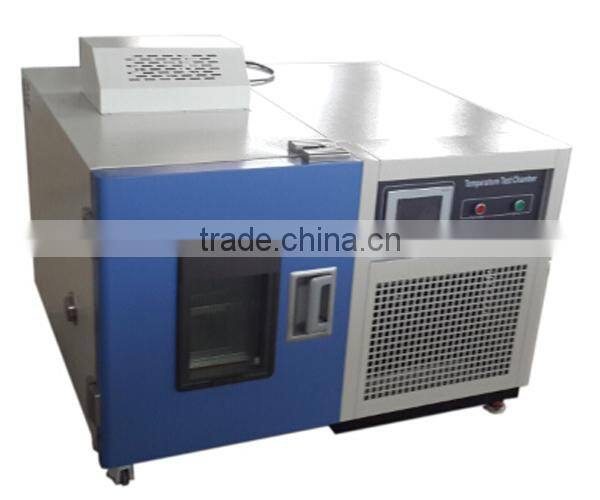

Type 1 --- Desktop Small Size
Type 2 --- Upright Small Size
Big Volumes Oven (Model O-225 ~ Model O-1000 Big Size)

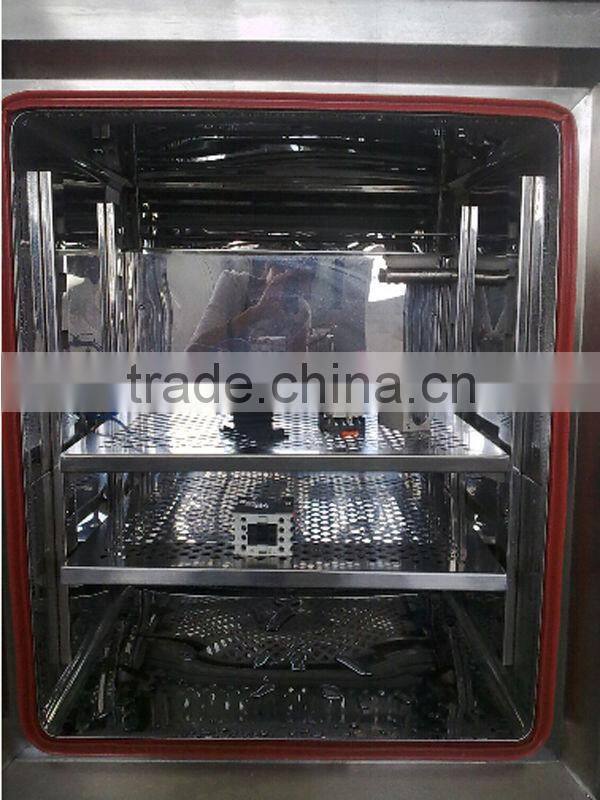

Test Area And Shelf
1. Stainless Steel Shelf;
2. The Height is adjustable;
3. Standard Loads 50 kg.If you need more,please declare in advance.

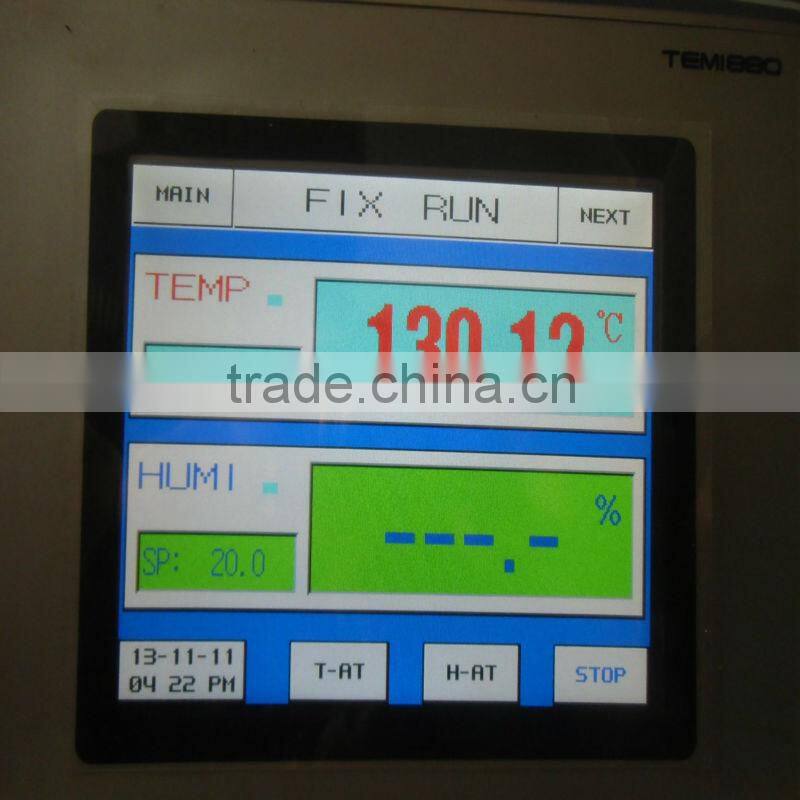

Control Panel
1. Digital PID Temperature Control;
2. Optional Controller languages : English,German,French,Russian,Spanish,Korean,Japanese;
3. Storage and record data;
4. RS232 and RS485 Interface.
Laboratory Apparatus Used Physics Dry Aging Machine
Export Standard Wooden Package
It can be used for Sea,Air,Railway,Truck transportation.
3 Years After sales service Warranty
LIB INDUSTRY
Frequently Asked Questions
Question: I need chambers very urgently, do you have stock ?
LIB: we have no stock, our standard delivery is 20 days , if you need in urgent , we can speed up the production ,will short to 18 days , customer should notice before order .
Question: How about your LIB payment terms?
LIB: Our payment is 50% with order, and 50% before delivery.
Question: Can LIB arrange delivery to our office (Lab)?
LIB: Yes, LIB can arrange shipping to your country and to your office ( Lab) by sea, by air, by train and by truck on conditions FOB, CFR, CIF, DDU and DDP for customers .
Question: Can we visit your plant before order?
LIB: We welcome and sincerely invite you or your team to visit our plant, we will help you to arrange hotel and pick you up from airport.
Question: Have you sold chambers to our country?
LIB: Now LIB climatic test chambers sold to more than 25 countries, like USA, Canada, Russia, UK, Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand Vietnam, Thailand, Iran, Brazil ……and so on .
Question: Can you arrange installations and commissioning in our lab?
LIB: Firstly, for standard chamber we had 5 days commissioning before shipping , you just need link power in your lab, then can start to operate; Secondly; we had detailed operation manual with chamber , any problems you can find and solve in it; Thirdly, some of customized chambers we should to install and teach your team to operate .
Question: How about your warranty?
LIB: It is three years warranty for every LIB’s chamber, and lifetime service. Now LIB has 8 agents in the world, and in Europe (Italy) , America (USA) Middle East(Iran) had service office, we can in first time to solve your problems.
