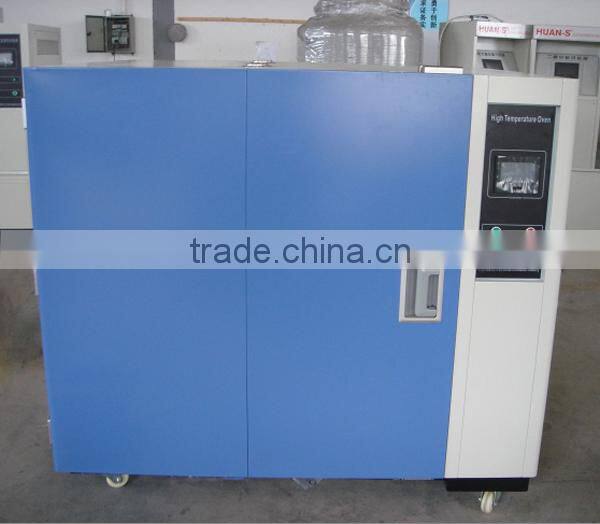

High Temperature Control Oven

Name: High Temperature Control Oven
Brand: LIB INDUSTRY
SKU: 107871019
Availability: InStock

US$ 2,000 - 14,198 MOQ: 1 Set

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

LIB INDUSTRY

Model Number:

O-225

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Guangzhou Shenzhen Tianjin Dalian HK

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name LIB INDUSTRY

Model Number O-225

Power Electronic

Usage Universal Testing Machine

High Temperature Control Oven

Product Description

High Temperature Control Oven

Main Technical Parametrs

Model	0-100	0-225	0-500	0-800	0-1000
Workroom dimensions(mm)	450450500	500600750	800700900	80010001000	100010001000
Exterior dimensions(mm)	750880850	8009501000	110011001300	110014501400	130014001400
Technical structure
Temperature range	RT+10℃~+250 ℃ (Max to 400℃)
Temperature fluctuations	± 0.5 ℃
Temperature deviation	± 2.0 ℃
Heating rate	about 6 ℃ / min
Control system
Controller	Digital PID Temperature Control
Sensor	PTR Platinum Resistance PT100
Heating system	Independent Nichrome electronic heating system
Circulatory system	Cold resistance and low noise centrifugal wind wheel
Used material
Exterior material	Carbon Steel Plate with antistatic hull painting

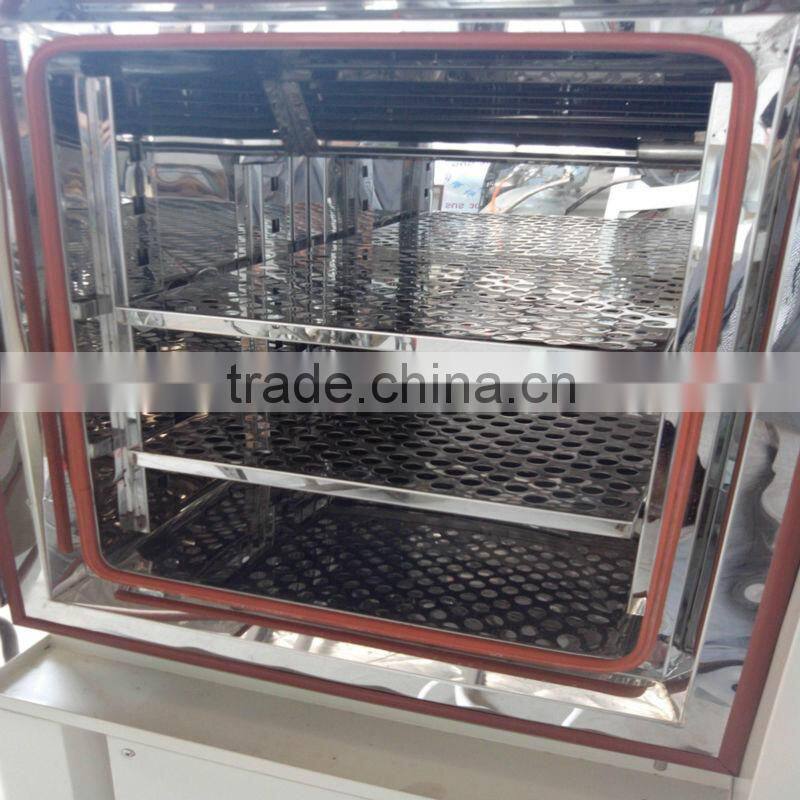

Interior material	SUS304 stainlesssteel
Insulation window	Double thermostability silicone rubber sealing

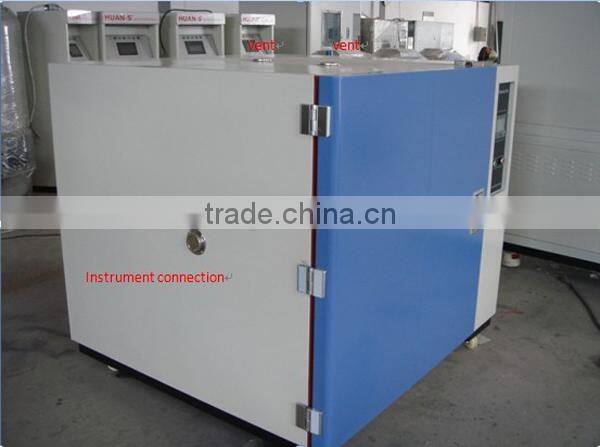

Standardconfiguration	1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1 overflow water tube, 1 copy of operating specification
Timing Function	0.1~999.9 (S,M,H) settable
Power Supply	AC380V 50HZ
Ambient Temperature	5℃~+30 ℃ ≤85% RH
Standard	GB/T2423.1-2001; GB/T2423.2-2001
