Specifications
Cold Heat Moisture Chamber1.Can be Circle and Program
2.3 years warranty
3. 20 days Delivery

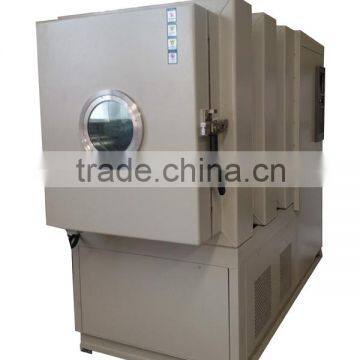

Temperature vacuum Climatic chamber
Temperature vacuum Climatic chamber
Features
| Model | THV-100 | THV-225 | THV-500 | THV-1000 |
| Workroom dimensions(mm) | 450*450*500 | 500*600*750 | 800*700*900 | 1000*1000*1000 |
| Exterior dimensions(mm) | 1050*880*1440 | 1050*1020*2000 | 1320*1320*2170 | 1670*1520*2315 |
| Technical structure | ||||
| Temperature range | -70℃~+150 ℃ | |||
| Pressure range | Normal to 0.5kPa | |||
| Temperature fluctuations | ± 0.5 ℃ | |||
| Temperature deviation | ± 2.0 ℃ | |||
| Heating rate | about 3 ℃ / min | |||
| Cooling rate | about 1 ℃ / min | |||
| Pressure deviation | ±2 kPa( ≥40 kPa), ±5%(40 kPa…4 kPa), ±0.1 kPa (≤4 kPa) | |||
| Reduce pressure time | ≤ 30min (Normal to 1kPa) | |||
| Control system | ||||
| Controller | Programmable color touch-screen controller | |||
| Sensor | PTR Platinum Resistance PT100Ω/MV | |||
| Heating system | Independent Nichrome electronic heating system | |||
| Cooling system | French TECUMSEH compressor | |||
| Humidification system | External isolation, stainless steel surface evaporation humidifier | |||
| Dehumidification system | Evaporator | |||
| Water supply system | automatic control, water saving and power reducing | |||
| Circulatory system | Cold resistance and low noise centrifugal wind wheel | |||
| Material | ||||
| Exterior material | Steel Plate with coating | |||
| Interior material | SUS304 stainless steel | |||
| Insulation window | Double thermostability silicone rubber sealing | |||
| Standard configuration | 1 Cable hole (Φ 50,) cover, 2 sets of shelf, 2 protector tubes, 1 overflow water tube,1 copy of operating specification | |||
| Timing Function | 0.1~999.9 (S,M,H) settable | |||
| Power Supply | AC380V 50HZ Three-phase five little system | |||
| Ambient Temperature | 5℃~+30 ℃ ≤85% RH | |||
Controller and PC link
Connect to PC / Easy operation
RS-232 interface
RS-485 interface
Inner workroom and shelves
Material : SUS304 Stainless Steel (Adjustable)
Test hole

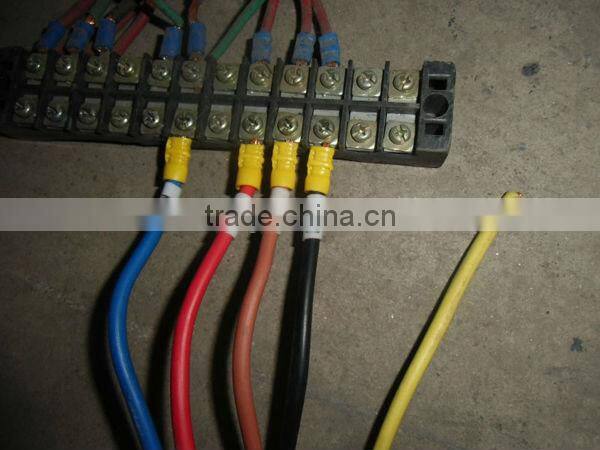

Power Supply and wiring
(AC380V+/-10 50Hz+/-10 Three-phase five-wire system)
LIB Manufacture Production process flow
Export standard Wooden Package
LIB Industry Warranty 3 Years
All of our test chambers has three year warranty period. If the equipment is under the ordinary usage and arise any hardware problem which caused by product itself, rather than human error, we will offer the repair to you.
* Firstly, we can provide the spare parts with you. And also provide the solution about the trouble of the products.
* Secondly, Please send back the apparatus, which will be repaired by our company.
* Lastly, we would like to appoint our technical engineer to your company to repair the apparatus.
