Specifications
13 5/8" 10000psi Single Ram BOP(1)API Spec 16A
(2)NACE MR-01-75
(3)H2S
(4)API Q1&ISO 9001
Specifications
U-Shaped Ram BOP is designed and manufactured according to API Spec 16A standard
Specifications
1 Spec 16A Hydraulic Ram BOP 2 widely used in oilfield 3 2000-20000psi4 7-1/16"-21-1/4"

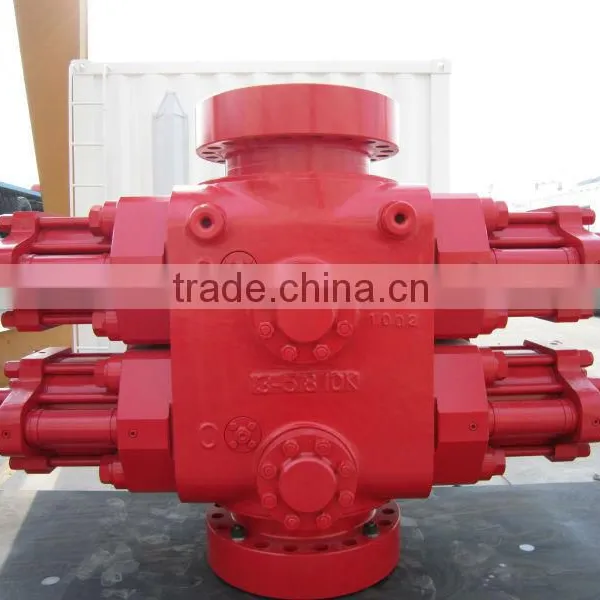

Hydraulic Ram BOP
* API dual-ram BOP , BOP Hydraulic ram BOP of wellhead equipment
* Bore size: 7-1/16", 9", 11", 13-5/8", etc.
* working pressure: 3000psi, 5000psi, 10000psi and 15000psi.
* Body Styles: single, double, triple
* End type: API flanged, studded and other types are available.
All BOPs are strictly manufactured as per API Spec 16A, and can be used to replace Shaffer ram BOP, Cameron ram BOP, or Hydril ram BOP.
Hydraulic BOP ramadopts hydraulic pressure to close and open the ram. When there's no electric power, the ram can be closed manually. When the well needs to be closed for a long period, the ram must be locked manually. Hydraulic ram BOP can be used independently, and it also can be used with other BOP.
The hydraulic ram BOP is equipped with various types of pipe rams, which can seal the annular space between casing and drilling tools, and even the hollow well without pipe string.
The hydraulic ram BOP
Standard: |
API Spec 6A&16A |
Working pressure: |
2000psi-10000psi(14 Mpa-70Mpa) |
Bore size: |
7 1/16"-13 5/8" |
Top &bottom connection: |
Flanged,studded |
