2.0kw LTD80 hoist suspended access platform / rope hoist cradle / construcion gondola working platform manufacturer
• China CE construction scaffolding / suspended platform / temporary gondola ZLP800 have exported to Peru, Colombia,Chile,Vietnam, Thailand, India, Malaysia,UAE,Spain and other countries, and we have agent in Hongkong.
• Suspended platform are designed and constructed in modular form so it can be mounted in any size.
• The welding of the support structure of the platform is made of quality steel profiles
• The connection of the individual parts of the structure in each unit is made with nuts and bolts.
• The powered suspended platform is equipped with wheels for easy movement around the construction site
• Along with standard powered suspended platform we also manufacture specialpowered suspended platform with 90°, 45° and Circular shapes. •We can also manufacture suspended platform as per client’s specific requirements
Structure of Suspended Platform
Five main structure: (1) Platform (2) Hoist Assembly (3) Satety Device (4) Electric System (5) Suspension Mechanism
Powered suspended platform are designed and constructed in modular form so it can be mounted in any size from 2-8 meters.
The welding of the support structure of the platform is made of quality steel profiles
The connection of the individual parts of the structure in each unit is made with nuts and bolts.
The powered suspended platform is equipped with wheels for easy movement around the construction site.
ZLP Suspended platform / Cradle / Gondola
Specification :
1.Type: zlp 630 & zlp800 & zlp 1000
2.Surface finished: Hot galvanized & aluminum alloy
3.Lifting height: 100m , 300m maximum
4.HS Code: 84289090
5.Certificate: ISO9001 & CE
6.Warranty : The whole machinery is for one years, some main components are 6 years
7.We can also customize for you
Technical parameters:
| Model | zlp630 | zlp800 | zlp1000 |
| Material of platform | Steel & Aluminum alloy | ||
| Rate loading capacity | 630kg | 800kg | 1000kg |
| Length of platform | 6m | 7.5m | 7.5m |
| Safety lock | LS30 | ||
| Hoist Model | LTD63 | LTD80 | LTD80(S dirve ) |
| Loading quantity (20 gp) | 9 | 8 | 7 |
| Counter weight | 25kg*40 | 25kg*40 | 25kg*40 |
| Diameter of wire rope | 8.3mm | 8.3mm | 8.6mm |
| Voltage | 220v/380v/415v 50/60hz 3 phase or single phase | ||
Parts List of Complete Suspended Platform / Cradle / Gondola
| NO. | Parts Name | Quantity | Description |
| 1 | Working platform | 3 |
The length of work platform include 1m,2m,3m,1.5m,2.5m The work platform can be made in any combination based on customer's requirement . |
| 2 | Hoist | 2 | LTD 63 & LTD80 Surface finished : hot galvanized |
| 3 | Safety lock | 2 | LS30 |
| 4 | Suspension machanism | 2 | Surface finished : hot galvanized |
| 5 | Control panel | 1 | Along with hoist |
| 6 | Limit position switch | 2 | |
| 7 | Limit position plate | 2 | |
| 8 | Wire rope | 100m*4 | 4*31SW- FC- 8.3 &8.6&9.1 |
| 9 | Electric cable | 1 bundle | 3*2.5+2*1.5YC-5 |
| 10 | Counter weight | 25kg*40 | three types: cement & cement with steel cover & iron-casting |
| 11 | Heavy hammer | 4 | |
| 12 | Life rope | 100m*1 | Selective |
| 13 | Self -lock device | 1 | Selective |

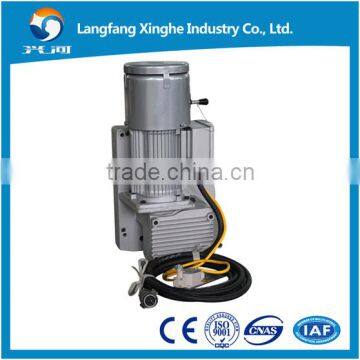

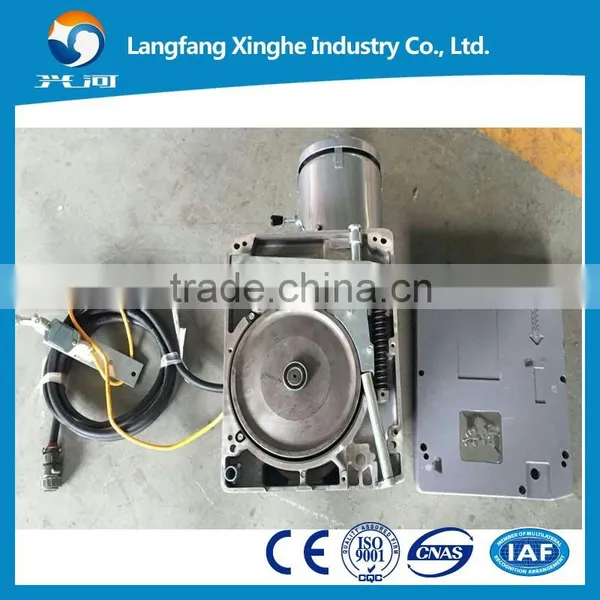

Hoist:unique anti-rope clamping device,Inside gear technique (machining-heat treatment-fine machining-surface nitridation-fine grinding)

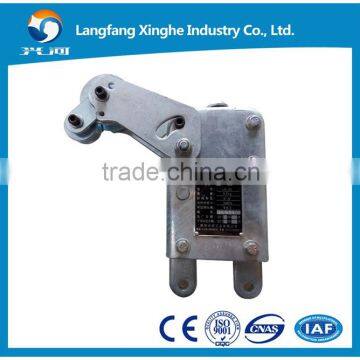

Safety Lock:Lock cylinder and lock plate use imported special stainless steel,the strength can reach to 1300MPa.

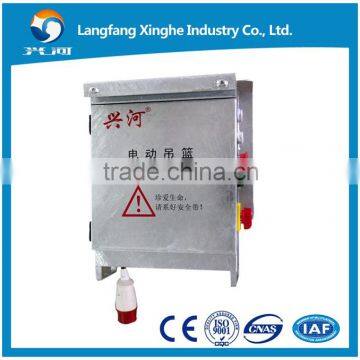

Electric box:use famous brand,CHNT,Schneider,DELIXI

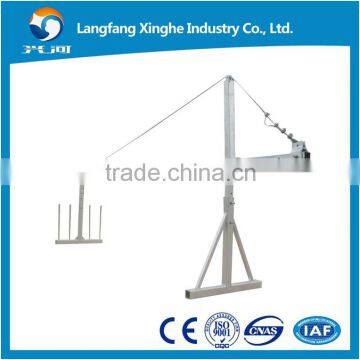

Suspension mechanism:Using Q235,Q215 steel tube, with hot galvanized surface, working life can be more than 15 years.
Suspended Platform / Cradle / Gondola Product Show
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
20GP can load 8 sets with counter weight, 10~12 sets without counter weight
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist, safety lock, electric control box and other parts. All these components are made in our factory by our worker, it means stable and competitive quality, delivery and services.
Langfang Xinghe Industry Co,Ltd are willing to make our world safe and wonderful.
