Home > Products > Window cleaning > zlp window cleaning cradle / electric winch suspended platform / mobile suspended scaffolding
zlp window cleaning cradle / electric winch suspended platform / mobile suspended scaffolding
- 500 Set / Sets per Month
- Tianjin Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Hebei, China | Brand Name: | XINGHE | Model Number: | ZLP630,ZLP800 |
Product Description
zlp window cleaning cradle / electric winch suspended platform / mobile suspended scaffolding
• China CE construction scaffolding / suspended platform / temporary gondola ZLP800 have exported to Peru, Colombia,Chile,Vietnam, Thailand, India, Malaysia,UAE,Spain and other countries, and we have agent in Hongkong.
• Suspended platform are designed and constructed in modular form so it can be mounted in any size.
• The welding of the support structure of the platform is made of quality steel profiles • The connection of the individual parts of the structure in each unit is made with nuts and bolts. • The powered suspended platform is equipped with wheels for easy movement around the construction site
• Along with standard powered suspended platform we also manufacture specialpowered suspended platform with 90°, 45° and Circular shapes.
•We can also manufacture suspended platform as per client’s specific requirements
Parts contains:

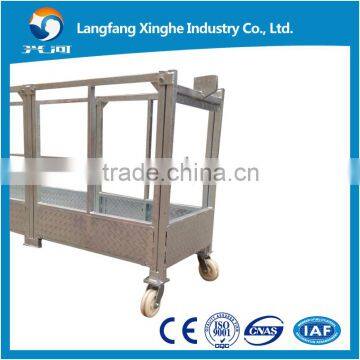

1. Platform(basket): Steel or Aluminum Alloy (painted or hot galvanized)
2. Suspension Mechanism: Steel (painted or hot galvanized)
3. Electric hoists:LTD63 or LTD80
4. Safety Lock: LS30
5. Electric control box: Along with hoists
6. Steel wire rope: 8.3mm ,8.6mm or 9.1mm
7. Electric cable: 3*2.5+2*1.5
8. Counterweights: Cement , cement with steel cover & Iron counterweight
9. Spare parts
Key Points:
1. Max lifting height: 100m;
2. Main models: ZLP500, ZLP630, ZLP800 & ZLP1000;
3. Types: Painted, hot galvanized, aluminum;
4. Voltage: 220v/380V/415V 50/60HZ 3 phass;
5. Couterweight: Cement, cement with steel cover, Iron-casting counterweight.;
6. H.S Code: 8428909090;
7. Certification: CE & ISO;
8. We can also customize for you.
zlp series suspended platform / cradle / gondola technical parameters
Item | zlp630 suspended platform | zlp800 suspended platform |
Rated Loading | 630kg | 800kg |
Lifting Speed | ~9.5m/min | ~8.5m/min |
Platform size(L*W*H) | (3*2000mm)*690mm*1180mm | (3*2500mm)*690mm*1180mm |
Suspension Mechanism
|
Rated exerted length of front beam
| 1.1m~1.5m |
Terrain clearance of front beam | 1.45m~1.75m |
Type | LTD63 | LTD80 |
Motor type | Customization | Customization |
Power | 2*1.5Kw | 2*2.0Kw |
Voltage | 380v/415v/220v(50hz) | 380v/415v/220v(60hz) |
Speed | 1400n/min | 1400n/min |
Braking torque | 15N.M | 15N.M |
Safety Lock | ||
type | LS30 | |
Angle of tilted locking rope | 3°~8° | |
Allowable impact force | 30KN |
Quality | ||
Suspension platform | 300kg | 370kg |
Hoist | 52kg*2 | 56kg*2 |
Safety lock | 5.5kg*2 | 5.5kg*2 |
Suspension mechanism | 320kg (not including counter weight) | 320kg (not including counter weight) |
Electricity box | 18kg | 18kg |
Complete machine | 753kg | 831kg |
Counter weight | 1000kg(25kg*40pcs) | 1000kg(25kg*40pcs) |
Loading quantity | 20GP | 12sets suspended platform |
40HQ | 30sets suspended platform |
Wire rope | ||
Type | 4*31SW+FC-φ8.3 Broken pulling force≥53500N | 4*31SW+FC-φ8.6 Broken pulling force≥62500N |
Cable line | Type | 3*2.5+2*1.5YC-5(one picec) |
1. Working platform, suspension mechanism
With hot galvanized steel,the suspension mechanism uses 80*80,70*70 square tube, thickness is 3.75mm, front and rear girder is 2.35mm thickness, middle girder is 2.48mm, thickness of working platform is 2.2mm.
2. Hoist
With famous brand of motor, large braking torque, unique anti-rope clamping device, when the rope is clamped,the alarming rings,the motor stops working, so that factor of safety is increased meantime, maintenance cost of hoist is reduced. Lubrication oil is 220# industry gear oil.
3. Safety lock
The lock cylinder uses special stainless steel, with strong impact resistance, higher toughness, wear resistant, long services life,safe and reliable.
4. Electric system
The electric components uses CHNT,SCHNEIDER brand, reliable quality,easy to maintain.
5. Counter weight
The shell of counter weight uses 1.5mm steel plate, the using life can be more than 5 years.
6. Wire rope
4*31sw high quality wire rope
Hoist and safety lock are packed in one plywood case, size 610*310*340mm;
Control box/ control panel is packed in a plywood case,size 570*440*270mm;
Other components are fastened by rope and then by pallet
20gp: 8sets; 40gp:20sets
Langfang Xinghe Industry Co,Ltd, established in 1980 year, is professional in production,sales and rental of temporary suspended platform in China.
As a market leader and key player in suspended platform&cradle sector, since its establishment, we focus on facade solutions, high rise building cleaning&maintenance. Our team has long lasting experience and kowledge in design and production of suspended platform and related components. With technique creation, strict inspection,and perfect after-sales services, we are getting more and more domestic and overseas market share.
Our main products includes suspended platform/cradle ZLP630, ZLP800 with its components, hoist, safety lock, electric control box and other parts. All these components are made in our factory by our worker, it means stable and competitive quality, delivery and services.
Langfang Xinghe Industry Co,Ltd are willing to make our world safe and wonderful.
Contact Information:
Langfang Xinghe Industry Co., Ltd
Add:Xiguangzhou Village, WenanTown, LangFang, Hebei, China (Mainland)
Tel:18533637981
WhatsAPP:+8615127625031
Email:export002(mounse)
