Ref No. |
OFF-SGHP-5KW |
|
System Basic Information |
Solar Panel Rated Output Power |
5KW |
Suggested for 24hrs Power Consumption: |
<20KWH |
|
Rated Output AC Capacity |
5KW |
|
Solar panel | ||
Type |
Crystalline Silicon PV Module, A-class |
20pcs |
Max Power |
250W |
|
Vmp |
30.5V |
|
Imp |
8.20A |
|
Size |
1640*990*40mm |
|
Weight |
22kg/pc |
|
25 years power output guarantee (Note: 2pcs panels connect in series) | ||

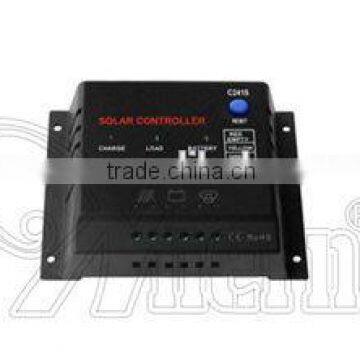

Controller | ||
Voltage |
96V |
1pc |
Current |
50A |
|
Warranty |
3 years |
|
PWM high-efficiency charging controller, LED display, intelligent control; Temperature compensation, various protections.short circuit, deep discharge, input surge voltage, over current. | ||
Circuit Breaker |
Used for protection of controller, installed between PV array combiner and controller |
1pc |

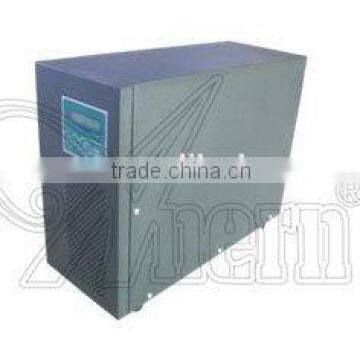

Inverter | ||
Input Voltage |
DC96V |
1set |
Output Voltage |
AC220V/110V 1-phase |
|
Frequency |
50/60Hz |
|
Efficiency |
95% |
|
Note: This inverter provides grid power switch and battery charging functions. | ||
Battery | ||
Capacities |
12V/200AH per piece |
16pcs |
Service life |
6 years |
|
Warranty |
3 years |
|
Solar panel rack |
Flat-roof type mounting rack, steel material, anti-rust treatment(Other types of racks can be customized as per client's requirement) |
1 set |

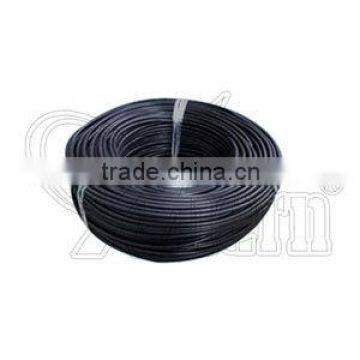

Cable |
60m |
|

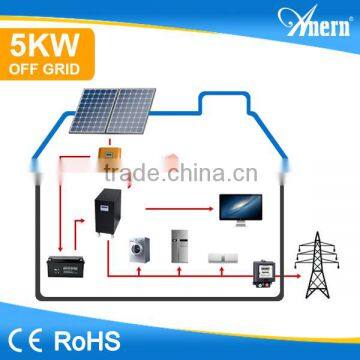

This is an off-grid system which uses batteries to store the solar energy, at the same time, the system can be connected with the grid for utilization of grid power. The system uses battery power in priority, but when sunshine is not so good or loads consumption is too big which caused the battery power inadequacy, then the system can switch automatically to grid power supply. Meanwhile, the system can charge the batteries with grid power until batteries are fully charged. Then the system will switch back to battery power supply.

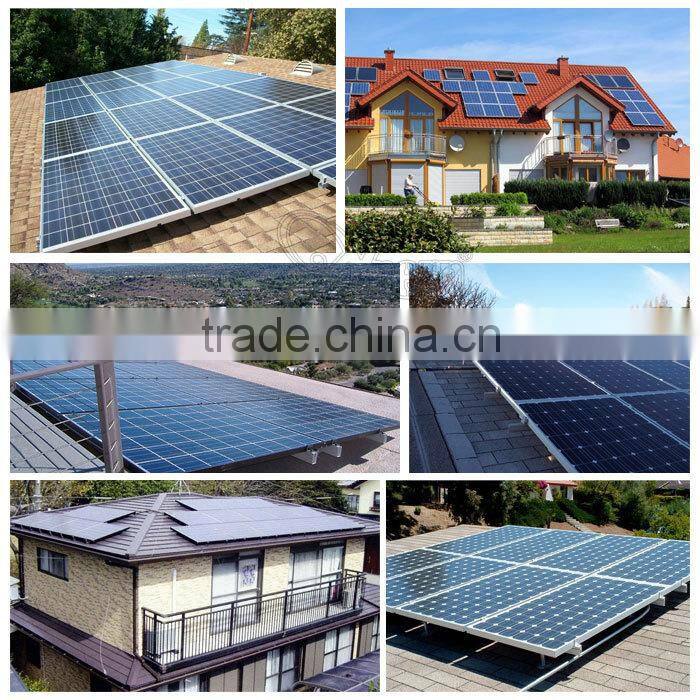

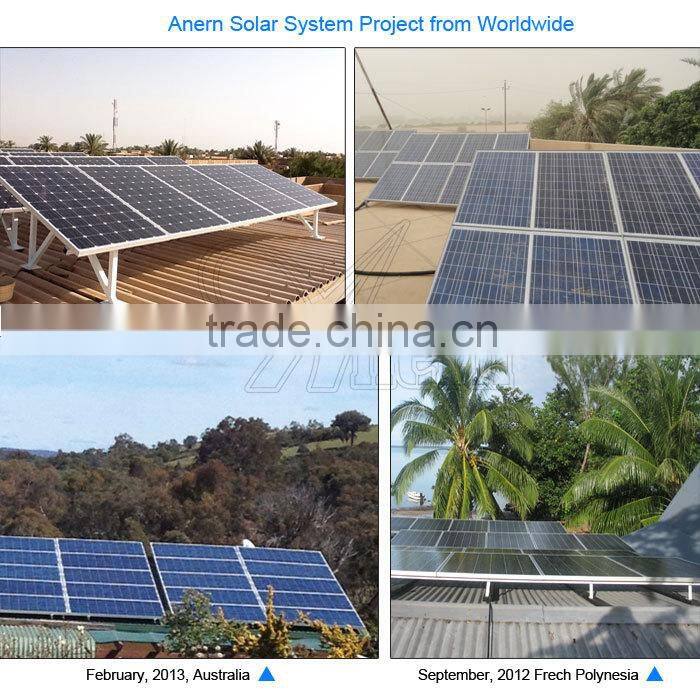

Anern solar system project from worldwide:
Applications:
2.household appliances, lighting, communications equipment, meteorological equipment.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service from well-trained and experienced staffs is customers’ best choice to secure good communication, on time delivery, reliable warranty etc.
3. OEM is available for Anern Products.
4. Sample is available.
Solar product off grid solar system 5kw from China manufacturers
