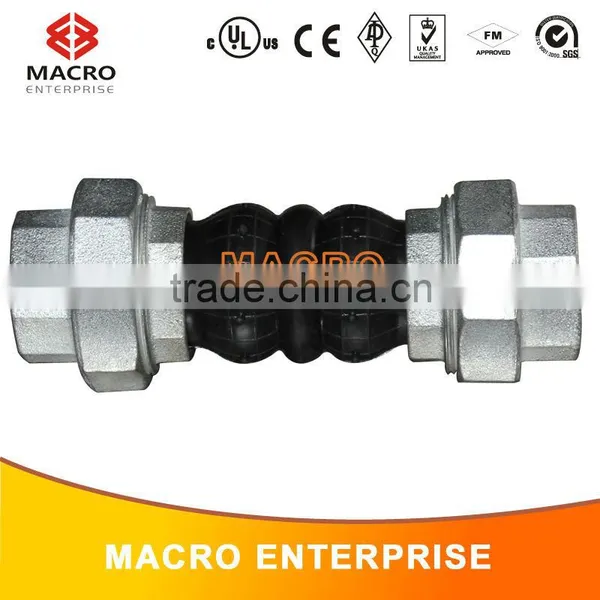

two bellows thread union type pipe expansion joint
Design Conditions
1) For single/double sphere floating flange rubber expansion joints
TYPE |
I |
II |
III |
Working Pressure MPa(Kg.f/cm2) |
1.0 (10) |
1.6 (16) |
2.5 (25) |
Burst Pressure MPa(Kg.f/cm2) |
2.0 (20) |
3.0 (30) |
4.5 (45) |
Vacuum Kpa (mmHg) |
53.3(400) |
86.7(650) |
100(750) |
Applicable temp. °C |
-20 to +115(-30 to +250 special condition) |
||
Applications |
Air, Pressurized air, Water, Sea water, Hot water, Oil, Acid, Alkali etc |
||
2) For double/twin spheres threaded union rubber expansion joints
Working Pressure MPa (Kg.f/cm2) |
1.6 ( 16 ) |
Burst Pressure MPa (Kg.f/cm2) |
4.8 ( 48 ) |
Vacuum Kpa (mmHg) |
53.3(400) |
Applicable Temp. °C |
-20 to +115 (-30 to +250 special condition) |
Applications |
Air, Pressurized air, Water, Sea water, Hot water, Oil, Acid, Alkali etc
|
