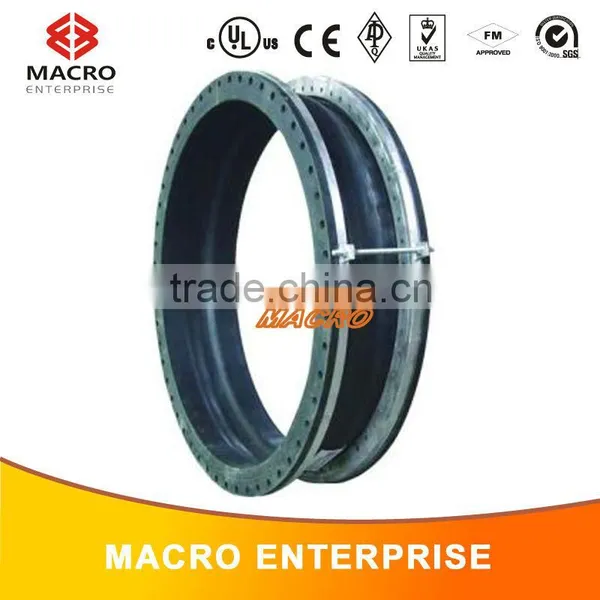

single & multiple arch wide spool expansion joint
Slip-On expansion joint offers the perfect solution for new and existing installations. Its high degree of flexibility insulates and protects equipment from the damages of vibration and can easily accommodate normal misalignments.
The slip-on installation alleviates the need for, and cost of, pipe flanges by simply using pipe clamps to secure the joint to existing system pipes.
Design Conditions

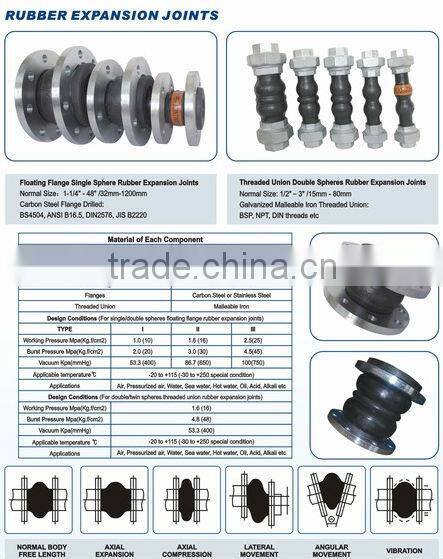

1) For single/double sphere floating flange rubber expansion joints
TYPE |
I |
II |
III |
Working Pressure MPa(Kg.f/cm2) |
1.0 (10) |
1.6 (16) |
2.5 (25) |
Burst Pressure MPa(Kg.f/cm2) |
2.0 (20) |
3.0 (30) |
4.5 (45) |
Vacuum Kpa (mmHg) |
53.3(400) |
86.7(650) |
100(750) |
Applicable temp. °C |
-20 to +115(-30 to +250 special condition) |
||
Applications |
Air, Pressurized air, Water, Sea water, Hot water, Oil, Acid, Alkali etc |
||
2) For double/twin spheres threaded union rubber expansion joints
Working Pressure MPa (Kg.f/cm2) |
1.6 ( 16 ) |
Burst Pressure MPa (Kg.f/cm2) |
4.8 ( 48 ) |
Vacuum Kpa (mmHg) |
53.3(400) |
Applicable Temp. °C |
-20 to +115 (-30 to +250 special condition) |
Applications |
Air, Pressurized air, Water, Sea water, Hot water, Oil, Acid, Alkali etc |
