Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Pipe & Tube > Large Diameter Stainless Steel Pipes for API Lining Pipes

Large Diameter Stainless Steel Pipes for API Lining Pipes

Name: Large Diameter Stainless Steel Pipes for API Lining Pipes
Brand: Macro
SKU: 107854367

Large Diameter Stainless Steel Pipes for API Lining Pipes thumbnail-1

Large Diameter Stainless Steel Pipes for API Lining Pipes photo-1

US$ 2,660 - 7,680 MOQ: 1 Ton

Key Specifications

Get Latest Price

Standard:

JIS, AISI, ASTM, DIN, EN

Place of Origin:

Hebei, China

Brand Name:

Macro

Contact Supplier Request Quote Chat Now

Hebei Macro Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xingang or any Chinese sea Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard JIS, AISI, ASTM, DIN, EN

Place of Origin Hebei, China

Brand Name Macro

Model Number TP304,TP304L,TP316L,TP310

Type Seamless

Steel Grade Other, 300 Series, TP304,304L,TP316/316L,TP410,SS304,SS410

Application high temperature or general service, High temperature or general purpose

Certification SGS

Welding Line Type ERW

Thickness 5s to sch 80s

Outer Diameter 10.3mm to 762mm, 10.29mm to 762mm

Specifications

Large diameter stainless steel pipes for API lining pipes
Quality anti-corrosion
Cold drawn,cold rolled
mirror polishing

Large diameter stainless steel pipes for API lining pipes

Annealing Requirements:

Lengths: All sizes from NPS1/8 to NPS 8 will be a length up to 24ft (7315MM, 7.315meter)

Size: NPS 1/8” TO 30”

Outer Diameter: 0.405inch to 30inch ( 10.29mm to 762mm)

Thickness: SCH 5S (1.65mm to 6.35mm); SCH 10S (1.24mm to 7.92mm); SCH 40S (1.73mm to 9.52mm); SCH 80S (2.41mm to 12.70mm)

Both ends can be threaded comform to ANSI B1.20.1 (NPT threads)

Other stainless steel pipes/tubes conform to the below standards can be supply:

ASTM A213, ASTM A249, ASTM A264, ASTM A270, ASTM A358, ASTM A511, ASTM A554, ASTM A789;

EN 10217, EN10216-2, GOST9941,

JIS G3468, JIS G3446, JIS G3459, JIS G3448

Applications: The products are widely used in fertilizer, petroleum, central-station, manufacture of electric fumance tube, power station, shipping millitary, chemical industry, environmental protection, traffic, metallurgy and mine, printing and dyeing, food industry, medical equipment, and so on

Descriptions

Standards	ASTM A312/A312M-01a
Materials	Austenitic Stainless steel
Material Grades	TP304H, TP309H, TP309HCb, TP310H, TP310HCb,TP316H,TP321H,TP347H,TP348H
Thickness Grades	SCH 50S, 10S, 40S, 80S
Producing Technology	cold rolled, cold drawn, straight-seam welded
Length Scope	up to 7.315meters (24foot),can be requested
Surface Finishing	natural color, common polishing, mirror polished
Applications	for high-temperature and general service
Usages	fluids, such as oil, natural gas, hot or cold water pipes;steam
Ends Type	Both ends can be threaded,beveled or requested

Packing: Each in a PVC bag, Bundle with knitted plastic bag, wooden case or according the customer's request

Main Producing Process for seamless pipes, welding-seam stainless steel pipes

Advantaged Producing Equipments to ensure the high quality products, with precision size,dimensions

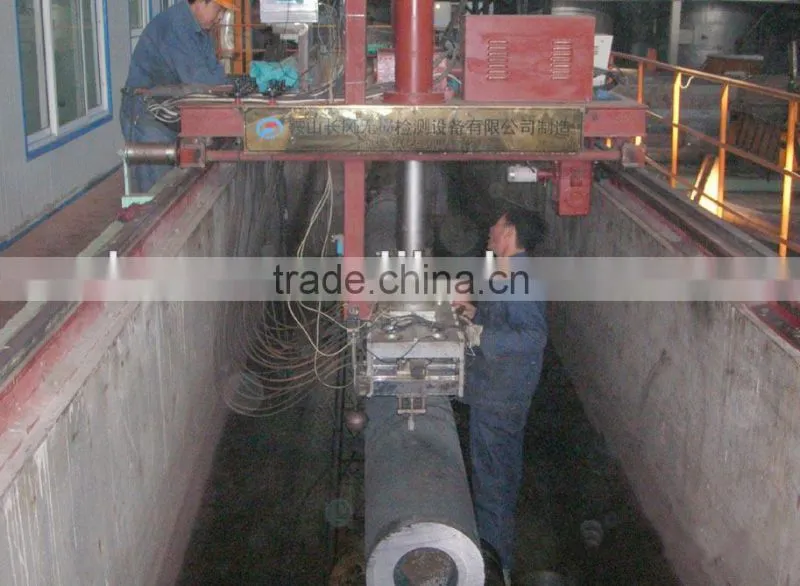

Inspections Equipments for Non-destructive Test

Metal Specifications for stainless steeal pipes conform to ASTM A312/A312M; available size and annealing requirements as belows:

Metal Specification or Grades as below:

Available Sizes or dimensions:

Production processes for seamless steel pipes

The main production processes for austenitic stainless steel pipes/tubes(seamless or ERW technical)

Heat treatment conform the belows

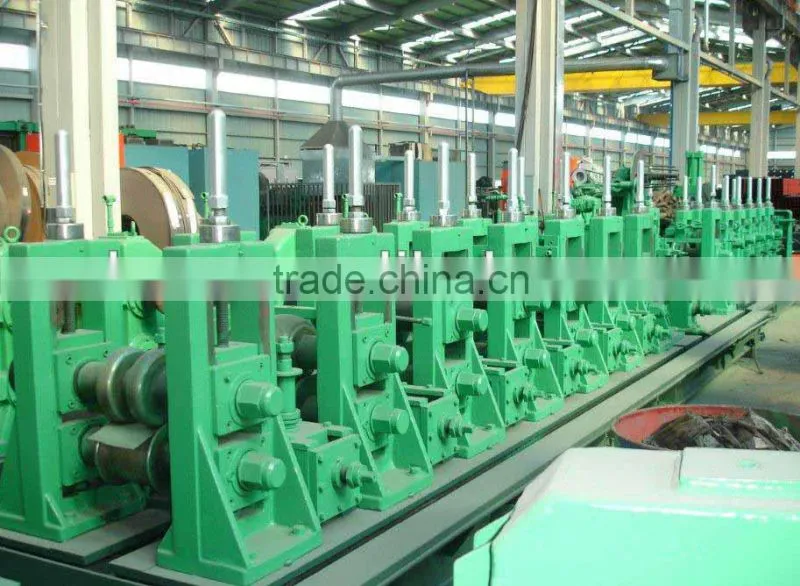

Advantaged equipment to ensure the high quality goods

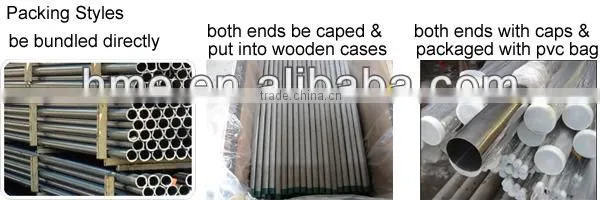

Generally packing styles

Please welcome you contact us to requestion more details for products, quotations etc, as professional supply, we MACRO ENTERPRISE will supply your the best price and service...
