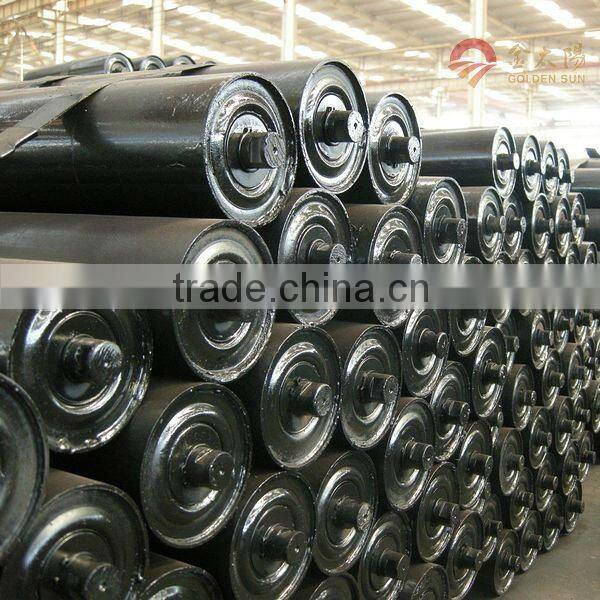

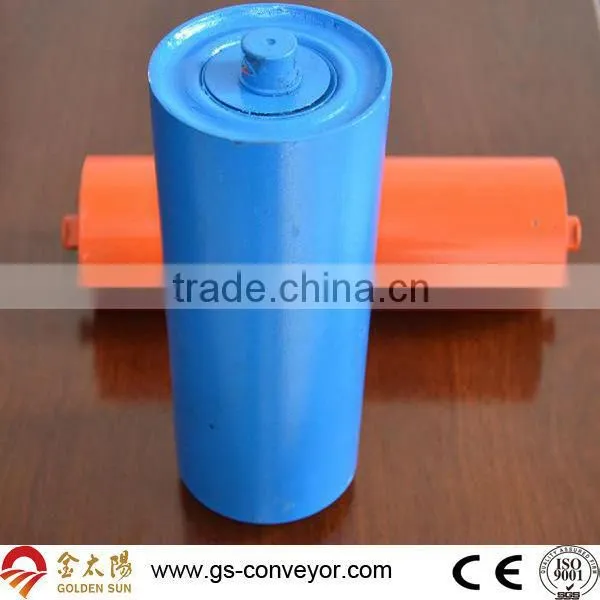

Carrier conveyor roller manufacturer with ISO CE certificate
Features:
1)Steady running, reliable quality and reduce maintenance;
2)Less movement longitudinally, rotating smoothly, extends the life span;
3)Various bearing housing and sealing structure are available for the customer's choice;
4)Multi pass labyrinthine sealing, preventing the mixed dirt and water immersed;
5)Manufacturing by steel pipe especially for of high precision roller, ensuring the strong load, low shaking and less noise.
| Diameter: | 50-219mm. | MOQ: | 5set |

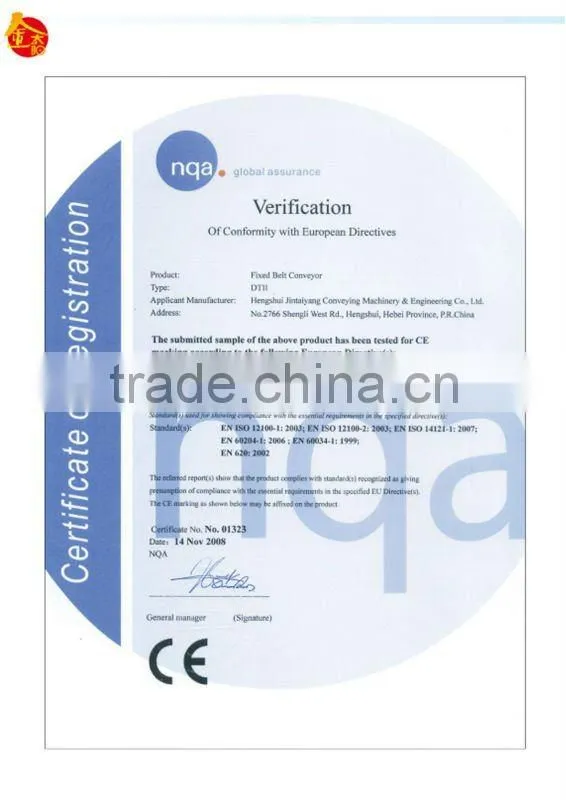

| Length: | 150-3500mm. | Certification: | ISO,CE,SGS |
| Lifetime: | 30,000 hours. | Port of loading: | Tian jin port |
| Type conveyor: | DTII, DTII (A),TD75 | Payment | T/T |

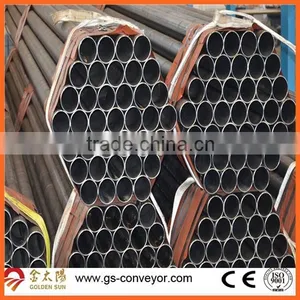

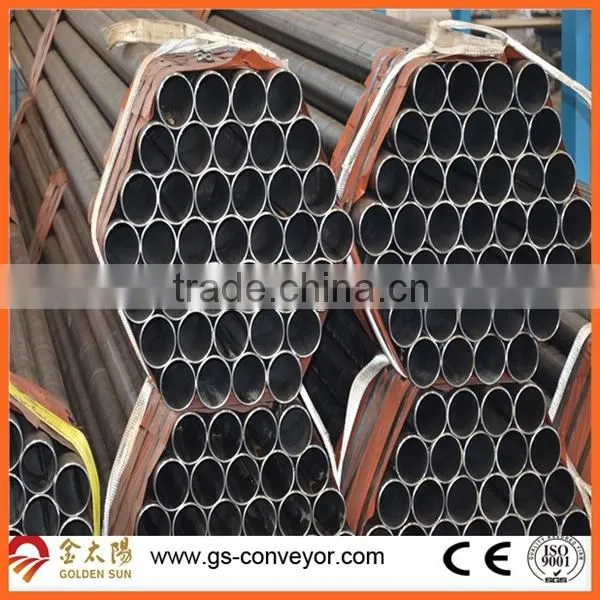

| Tube | Carbon steel tube/ seamless steel tube. |
| Shaft | 20# Cold drawn steel, or as request. |
| Bearing | Single&Double Row Deep Groove Ball Bearing. |
| Seals | Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal. |
| Lubrication | Grease is Lithium soap type grease with Rust Inhibitors. |
| Welding | Mixed gas shielded arc welding end. |
Summary of the belt conveyor roller size:
Diameter(mm) |
Length scope(mm) |
Shaft diameter(mm) |
Shell wall thickness(mm) |
89 |
150-2500 |
20,25 |
3.2-6 |
102 |
25,25,30 |
3.5-6.0 |
|
108 |
25,25,30 |
||
114 |
25,25,30 |
||
127 |
25,25,30 |
||
133 |
25,25,30 |
||
140 |
25,25,30 |
||
152 |
25,25,30 |
4.0-6.0 |
|
159 |
25,25,30 |
||
165 |
25,25,30,40,45 |
4.5-6.0 |
|
177.8 |
25,25,30,40,45 |
||
190.7 |
25,25,30,40,45 |
||
194 |
25,25,30,40,45 |
||
219 |
25,25,30,40,45 |
Flow chart of manufacturing process of belt conveyor roller:
Production process of unloading roller:

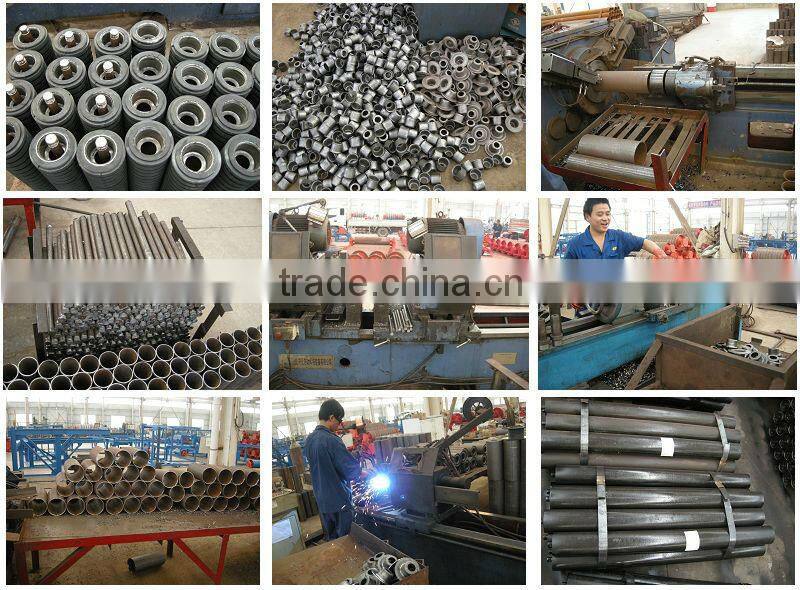

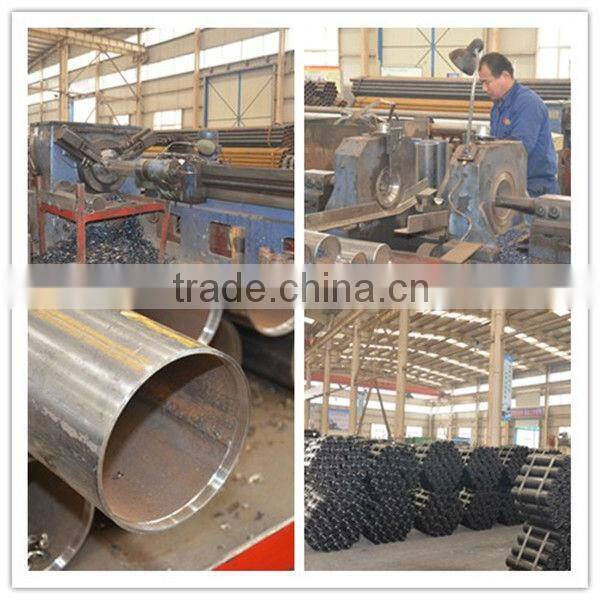

Manufacturing Equipment of conveyor roller

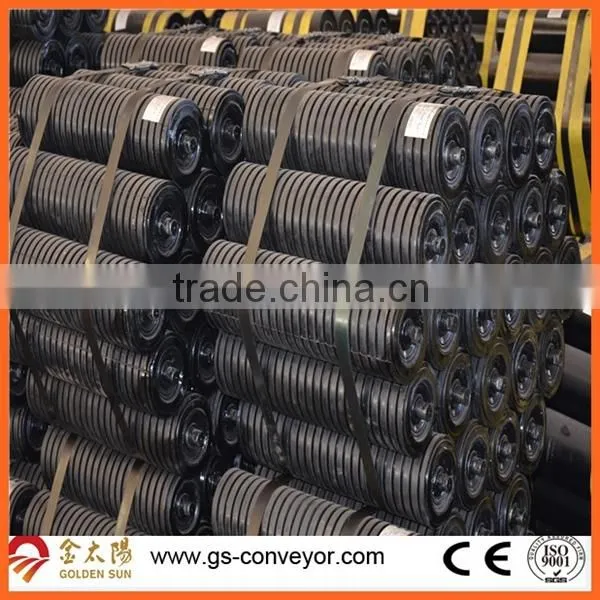

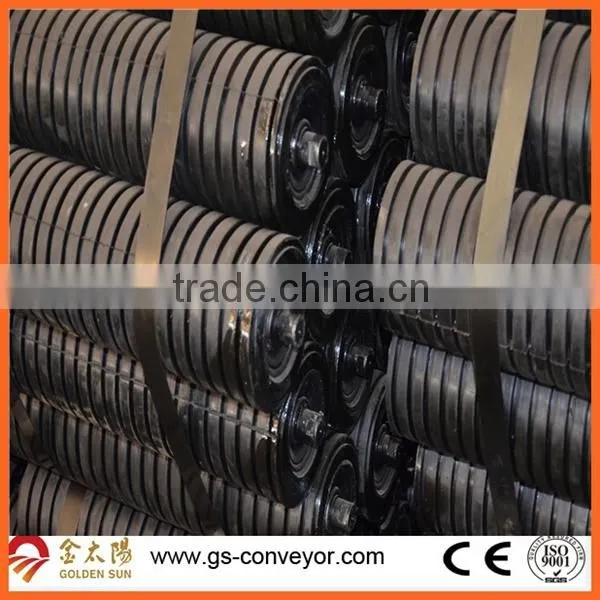

Package

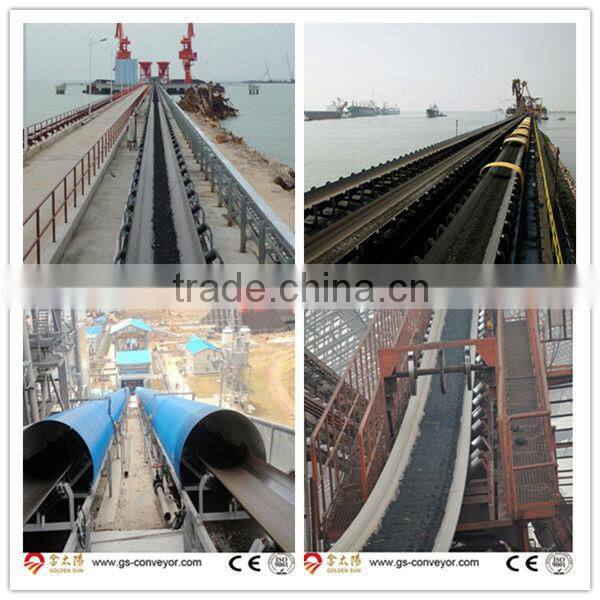

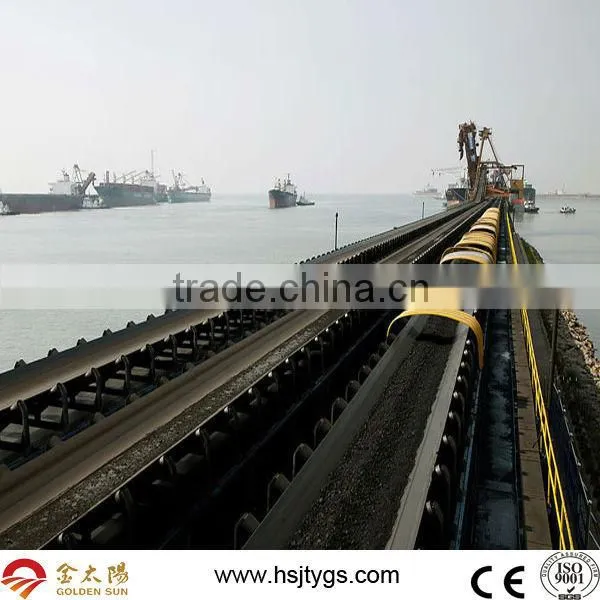

Mian Project
Project Name |
|
|
Belt conveyor for MIEL sintering project
|
MIEL CO.,LTD of India
|
|
ARFA Steel Company electric furnace billet continuous casting conveyor system |
ARFA Steel Company of Iran
|
|
LHOKNGA power plant belt conveyor for self-sup material |
LHOKNGA Power Plant of Indonesia
|
LBSB project 360 square meter firing conveyor |
Leong Bee & Soo Bee Group of Malaysia
|
Conveyor roller for factory in Fremantle |
Alloy Steel International of Australia
|
Conveyor system for Ilyich coal powder injection |
Ilyich Metallurgical Combine of Ukraine
|
|
3000 thousand tons/year pelletizing project conveyor system
|
CVG Ferrominera Orinoco C.A. of Venezuela
|
|
Coking Project Belt Conveyor Of CAMCO
|
CAMCO international co.,ltd
|
|
Belt conveyor for Thailand carbon disulfide project
|
China National Chemical Construction corporation
|
Roller and conveyor belt long-term supply |
Vitor Renato Stollmeier ZAPY S.A. of Brazil
|
|
ICDAS BEKIRLI Coal-fired Unit project
|
ICDAS BEKIRLI of Turkey
|
Conveyor roller long-term supply |
Bridge Limited of Kenya
|
Conveyor pulley long-term supply |
Helmut Frik co.,ltd of Germany
|
Conveyor belt long-term supply |
Dredge Pump Pte Ltd of Singapore
|
|
Conveyor pulley and Frame long-term supply
|
Larsen & Toubro Construction Limited of India
|

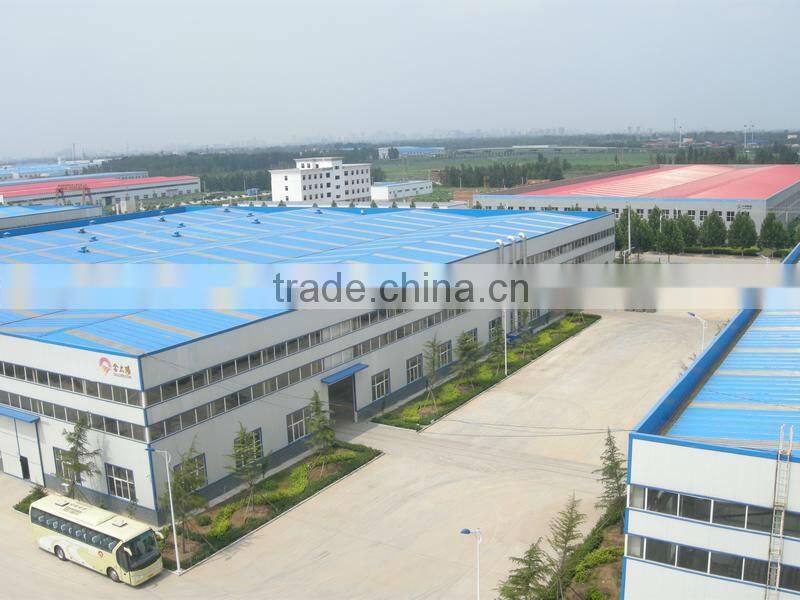

Factory scene:
Customers:Frequently Asked Question of Our Customers:
Q: What are we doing?
A: We specialized in manufacturing and designing conveyors and accessories(conveyor roller, conveyor pulley, frame etc) for 19 years.
Q: What’s the advantage compared to other suppliers?
A:We provide belt conveyor and accessories with competitive price and superior service. We have professional sales team, production team, researching team.
Q:How is our customer service?
A: all our sales representatives can speak fluent English. They will answer all of your questions in 24 hours.
Q:What is the MOQ of our products?
A:The MOQ for unloading roller is 5 pieces.
Q:What is the payment of our company?
A. Both TT and L/C is acceptable for us.
