Industrial copper mining CEMA standard conveyor idler roller

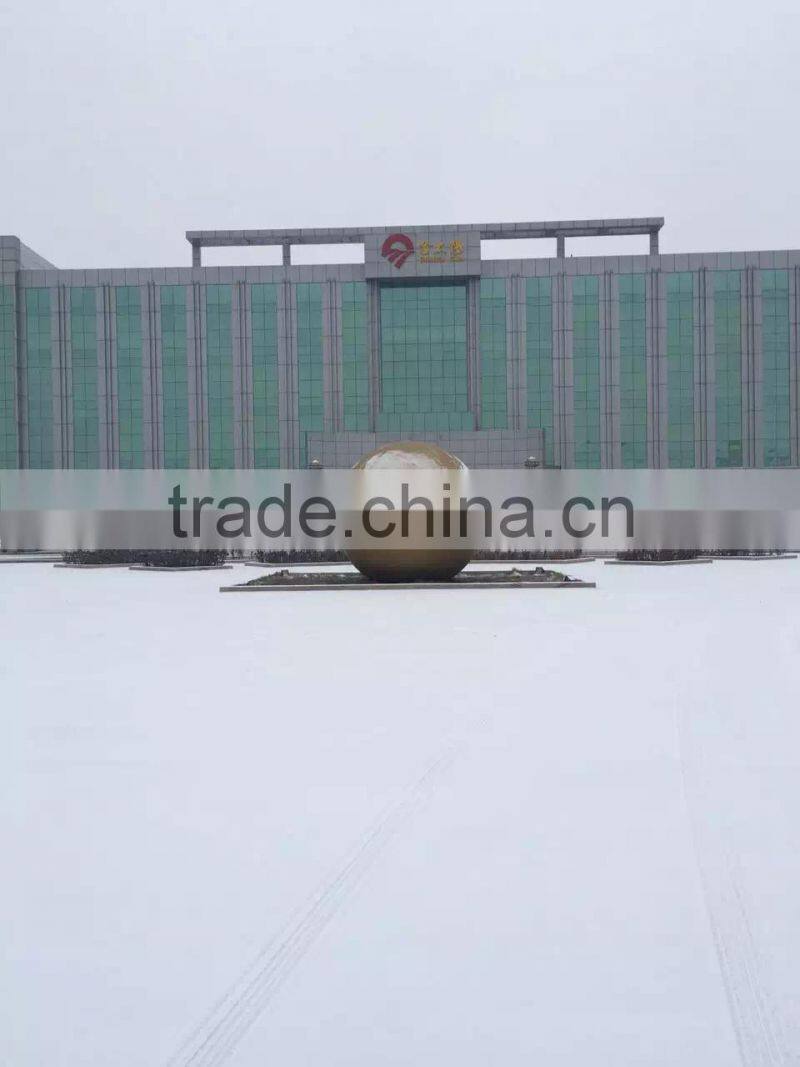

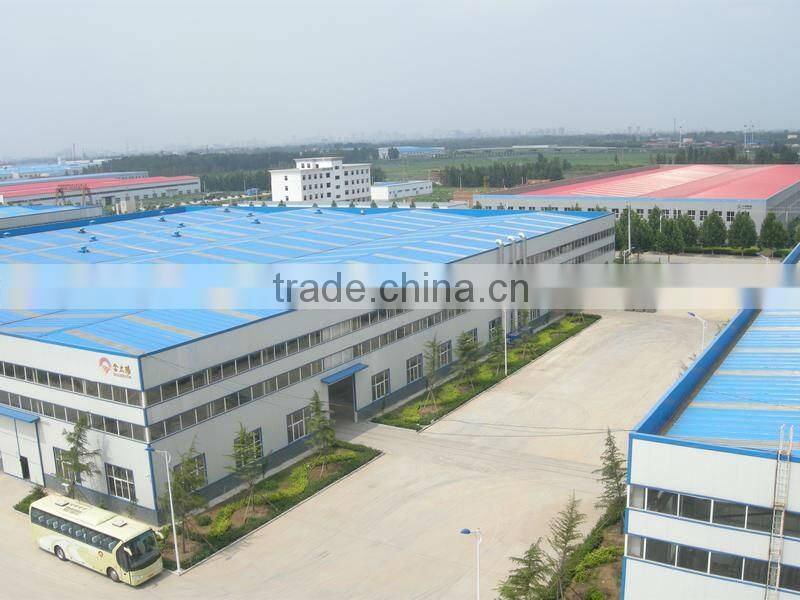

About our factory
Goldensun famous conveyor roller brand
We have 480 workers in our 266800m³ workshop
With registered capital of RMB 17,2000,000 and 13 years of experience
With 98 engineers and technicians
Two-hour drive to Beijing
Samples are acceptable. Rush order and large quantity are acceptable.

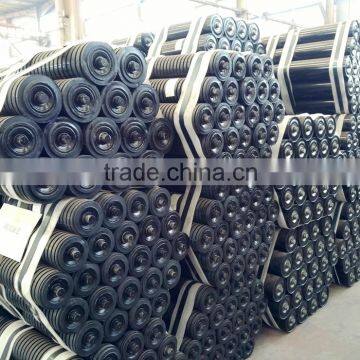

Goldensun conveyor roller details:
1. Brand: Goldensun
2. Lifespan: 30000-50000 hours
3. Production capacity: as usual 600 pieces/day.
4. Roller diameter: 76-219mm.
5. Roller length: 190mm to 3500mm.
6. Roller tube: Q235 carbon steel.
7. Shaft: 45# cold drawing round steel
8. Bearing: single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance
9. Bearing brand: SKF, FAG, NSK, LYC
10. Seals: grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal
11. Color: according to your requirement.
12. Finish: painting/rubber/steel screw/galvanized.
13. Welding: mixed gas shielded arc welding end.
14. Professional designing and inspection team.
15. Standard: ISO/BS/JIS/DIN/CEMA/Australia
16. Package: export standard plywood cases with waterproofing film
Main features of Goldensun conveyor roller
The bearing housing and steel tube are assembled and welded with a concentric automatic, welding machine.
Cutting of the steel tube and bearing is performed with the use of a digital auto device/machine/equipment.
Fabrication of the roller is effected by an auto device and 100% tested for its concentricity.
Roller and supporting components/materials are manufactured to ISO/BS/JIS/DIN/CEMA standard.
Conveyor steel roller Parameters:
| Roller specification | |||
| Standard diameter | length range | shell wall thickness | bearing type |
| mm | mm | 3.0-3.75 | min-max |
| 63.5 | 150-3500 | 3.0-4.0 | 204 |
| 76 | 150-3500 | 3.0-4.0 | 204,205 |
| 89 | 150-3500 | 3.5-4.0 | 204,205 |
| 102 | 150-3500 | 3.5-4.0 | 204,205,305,306 |
| 108 | 150-3500 | 3.5-4.5 | 205,206,305,306 |
| 114 | 150-3500 | 3.5-4.5 | 204,205,305,306 |
| 127 | 150-3500 | 3.5-4.5 | 205,206,207,305,306 |
| 133 | 150-3500 | 3.5-4.5 | 205,206,207,305,306 |
| 140 | 150-3500 | 4.0-4.5 | 205,206,207,305,306,307,308 |
| 152 | 150-3500 | 4.0-4.5 | 205,206,207,305,306,307,308 |
| 159 | 150-3500 | 4.5-6.0 | 207,305,306,307,308 |
| 165 | 150-3500 | 4.5-6.0 | 207,305,306,307,308 |
| 177.8 | 150-3500 | 4.5-6.0 | 207,305,306,307,308 |
| 190.7 | 150-3500 | 4.5-6.0 | 207,306,307,308,309 |
| 194 | 150-3500 | 4.5-6.0 | 207,307,308,309,310 |
| 219 | 150-3500 | 308,309,310 | |

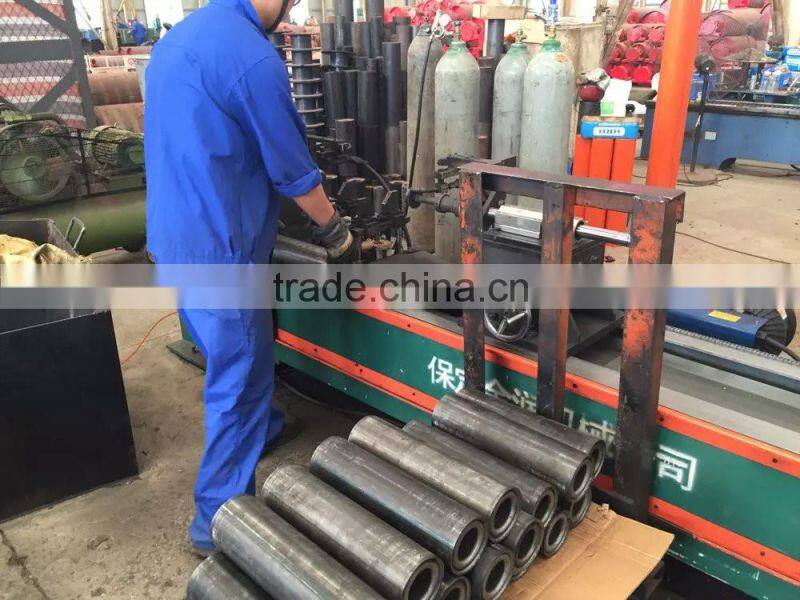

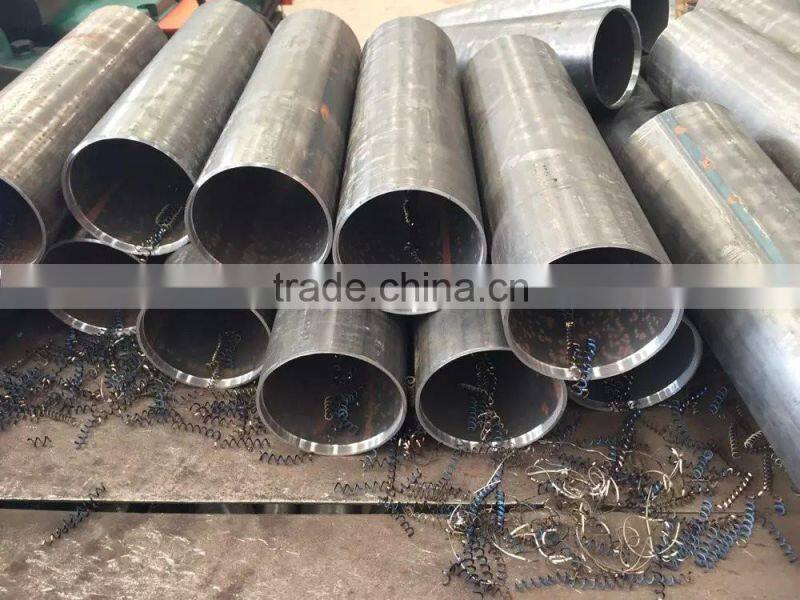

Steel rollers Processing
Other Conveyor components:
Conveyor pulley: including head pulley, tail pulley, take-up pulley

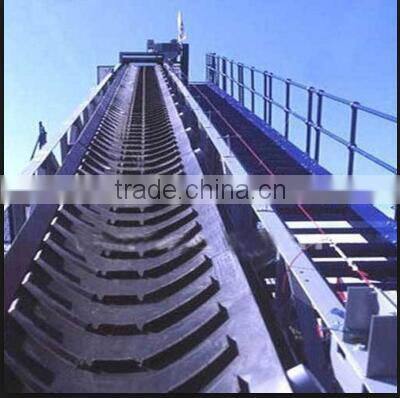

Conveyor belt: including EP, NN,CC,ST stype
Customer Visit:
