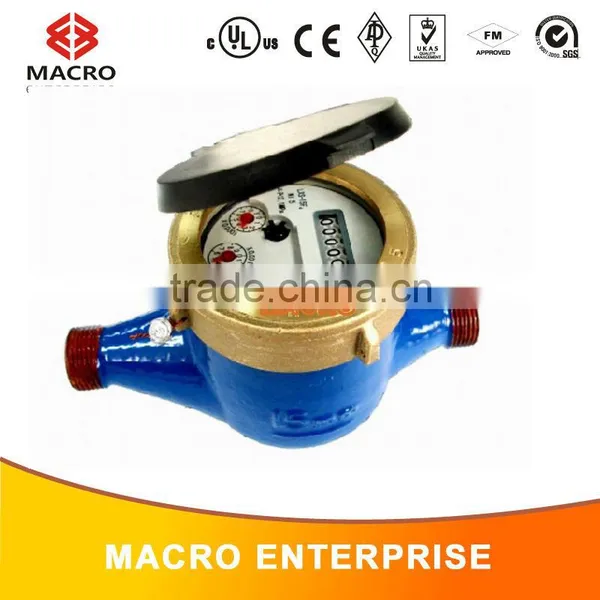

LXS-15F3 -class C Liquid sealed vane wheel water meter
1. General
LXS-15F3 is a turbine Multi-jet Super dry water meter for residential application in sizes 15mm and 50mm for cold meter.
2. Futures
2.1 Mechanical transmission movement equates to maximum reliability
2.2 The chamber of the rollers is liquid filled sealed for protecting the inner parts from moisture and dust penetration
2.3 Sealed wet dial register
2.4 Internal strainer, inlet strainer for selecting
2.5 External regulating device
2.6 Particularly suited in lower quality water
3. Standards Compliance
ISO 4064 Class B for horizontal Installation
4. Optional Features
1) Several lengths and connections available on request
2) Non return valve
3) U. S. Gallon (USG) Cubic Feet (CF) for selecting
5. Working Conditions
Water temperature: <=40C
Water pressure: <=1.6 MPa
6. Installation Requirement
1) Pipeline must be flushed before installation
2) The meter should be constantly full of water during operation
3) The meter should be installed in horizontal with the direction of flow as marked on the body of the water meter.
7. Maximum Permissible Error
In the lower zone from Qmin inclusive up to but excluding Qt is 5%. In the upper zone from Qt inclusive up to and including Qmax is 2%.
| Nominal diameter | DN | 15 | 20 | 25 | 32 | 40 | 50 |
| Body thread | D | G3/ 4B | G1B | 1 4G1 B | 1 2G1 B | G2B | G2 B1 2 |
| Connector thread | d | R1/2 | R3/4 | R1 | 1 4R1 | 1 2R1 | R2 |
| Body length mm | L | 165 | 190 | 260/225 | 260/230 | 300/245 | 300/280 |
| Overall length mm | L1 | 259 | 294 | 380/345 | 384/354 | 431/376 | 448/428 |
| Width mm | W | 94 | 94 | 98 | 98 | 122 | 145 |
| Meter height mm | H | 106 | 106 | 115 | 115.5 | 142 | 177.5 |
| Weight without connectors Kg | 1.5 | 1.7 | 2.6/2.4 | 2.8/ 2.7 | 5.1/ 4.8 | 8.5/8.2 | |
| Weight with connectors Kg | 1.68 | 1.98 | 3.12/2.92 | 3.6/ 3.5 | 6.14/5.84 | 10.22/ 9.92 |
