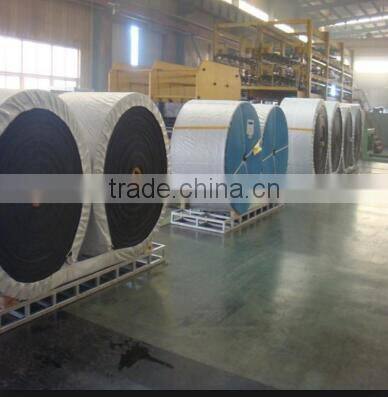

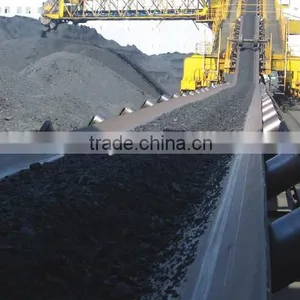

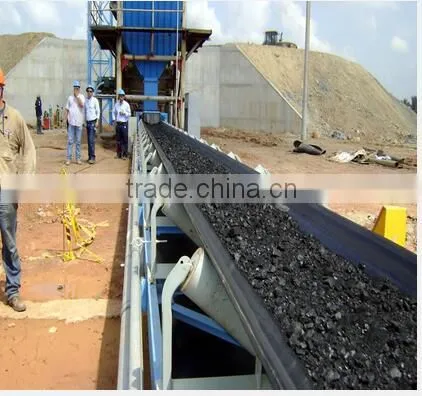

Steel Cord Conveyor Belt
Durable Steel cord conveyor belt totaly made in china
| Technical parameters of the steel cord flame-retardant conveyor belt produced for coal mines in accordance with MT668-2008 |
| Technology Data | Belt Intension | |||||||||||||
|
ST/S 630 |
ST/S 800 |
ST/S 1000 |
ST/S 1250 |
ST/S 1600 |
ST/S 2000 |
ST/S 2500 |
ST/S 2800 |
ST/S 3150 |
ST/S 3500 |
ST/S 4000 |
ST/S 4500 |
ST/S 5000 |
ST/S 5400 |
|
| Longitudinal Tensile Strength N/mm | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 2800 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
| Maximum Nominal Diameter Of Steel Wire Rope (mm) | 3.0 | 3.5 | 4.0 | 4.5 | 5.0 | 6.0 | 7.2 | 7.5 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
| Steel Cord pitch(mm) | 10 ±1.5 |
10 ±1.5 |
12 ±1.5 |
12 ±1.5 |
12 ±1.5 |
12 ±1.5 |
15 ±1.5 |
15 ±1.5 |
15 ±1.5 |
15 ±1.5 |
15 ±1.5 |
16 ±1.5 |
16 ±1.5 |
17 ±1.5 |
| Width Of Top Cover (mm) | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 |
| Width of Bottom Cover (mm) | 5 | 5 | 6 | 6 | 6 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8.5 | 9 |
| Width (mm) | The amount of steel cord rope | |||||||||||||
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | 50 | ||||
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 64 | 59 | 55 | 55 |
| 1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 76 | 77 | 77 | 71 | 66 | 66 |
| 1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 89 | 90 | 90 | 84 | 78 | 78 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 101 | 104 | 104 | 96 | 90 | 90 |
| 1800 | 171 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 114 | 117 | 117 | 109 | 102 | 102 |
| 2000 | 196 | 196 | 159 | 159 | 159 | 159 | 128 | 128 | 128 | 130 | 130 | 121 | 113 | 113 |
| 2200 | 216 | 216 | 176 | 176 | 176 | 176 | 141 | 141 | 141 | 144 | 144 | 134 | 125 | 125 |
| The Recommended Minimum Conveyor Rollers'diameter ST Series |
| Belt Model ST | ST 630 |
ST 800 |
ST 1000 |
ST 1250 |
ST 1600 |
ST 2000 |
ST 2500 |
ST 2800 |
ST 3150 |
ST 3500 |
ST 4000 |
ST 4500 |
ST 5000 |
ST 5400 |
| Diameter of Minimum Drum (mm) | 500 | 500 | 630 | 800 | 1000 | 1000 | 1250 | 1250 | 1400 | 1600 | 1600 | 1600 | 1800 | 1800 |
