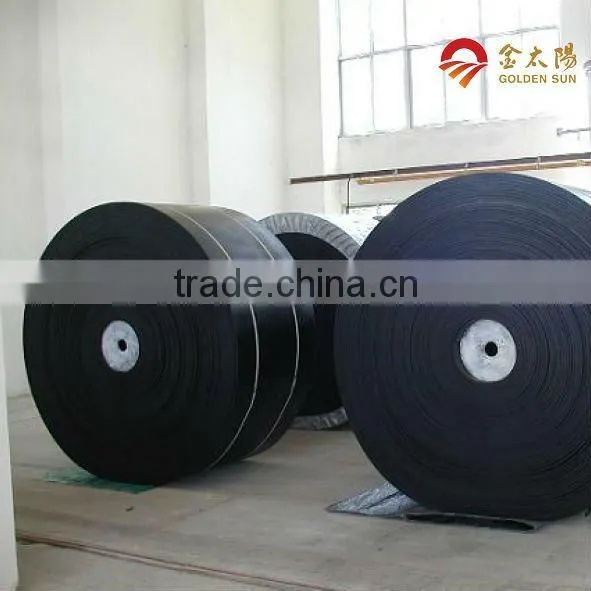

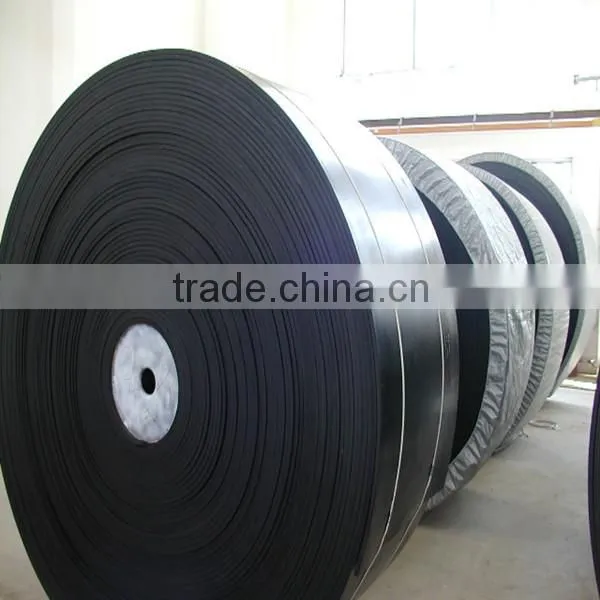

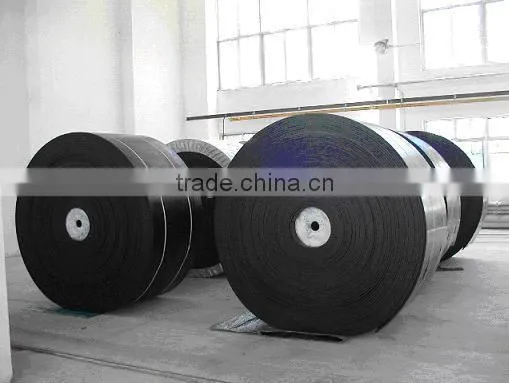

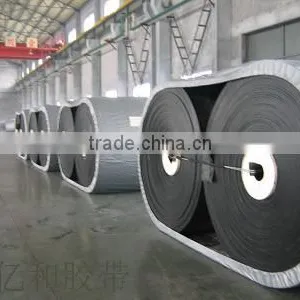

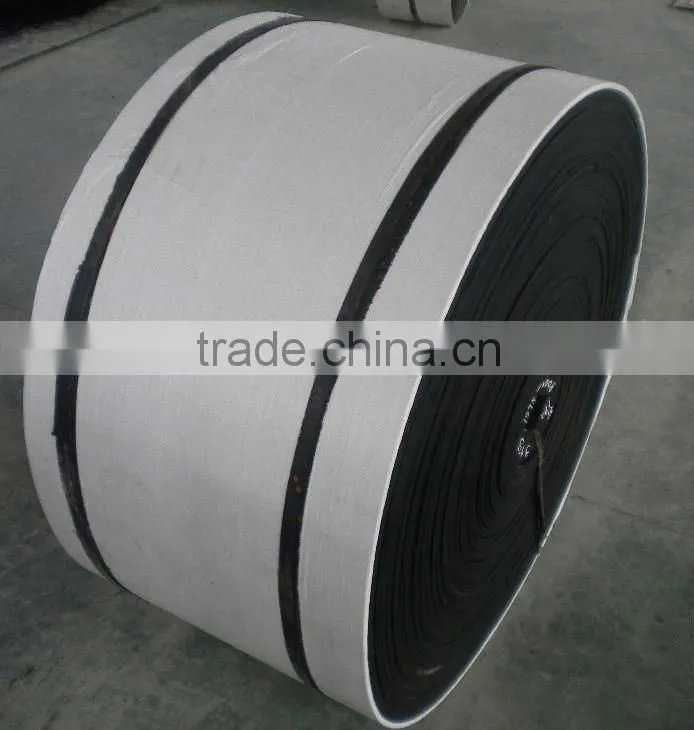

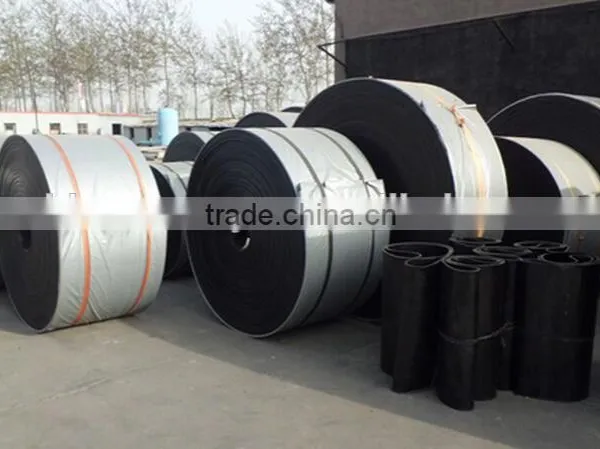

Rubber conveyor belt manufacturer
Key Features:
1) Fabric: NN80-- NN300
2) Belt width (mm): 400 - 2400
3) Polyester conveyor belts also called EP conveyor belts, whose tension resistant body is canvas woven by polyester in warp and polyamine in weft.The belts have the characteristics of low elongation in warp and goodtrough ability in weft, good water resistance, good wet strength, no mould is suitable for medium, long distance and heavy-load transportation of materials.Because of the high initial modulus of polyester, the belts can choose a relative low safety factor.
The physical and mechanical properties of coverffig layer: please refer to the physical and mechanical properties of the common conveyer belt.
2. Tensile property of through thickness:
a. The longitudinal tensile strength is not lower than the following nominal value:
315 400 500 600 630 800 900 1000N/mm
b. The through thickness elongation rate of the belt should not less than rate of trough thickness of the belt should no more than 4%.
c. Straightness: no more than 25mm.
d. plunger bond strength:
Index Description |
Strength between layers |
Cover layer and fabric layer |
|
Thickness of cover layer≤1.5mm |
Thickness of cover layer >1.5mm |
||
Sample average value |
4.5N/mm |
3.2N/mm |
3.5N/mm |
Fabric Material |
Fabric structure |
Fabric code |
No.of fabric plies |
Width mm |
Length |
Cover thickness mm |
|
|||
Warp |
Weft |
|||||||||
Top |
Bottom |
|
||||||||
Polyester canvas |
Polyester |
Nylon of Polyester |
EP100 |
2-10 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
EP150 |
2-10 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
|||
EP200 |
2-10 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
|||
EP250 |
2-10 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
|||
EP300 |
2-6 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
|||
EP400 |
2-6 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
|||
EP500 |
2-6 |
350-2000 |
10-400 |
2-12 |
1-5 |
|
|
|||
EP600 |
2-4 |
350-2000 |
10-400 |
2-12 |
||||||
|
|
|
|
