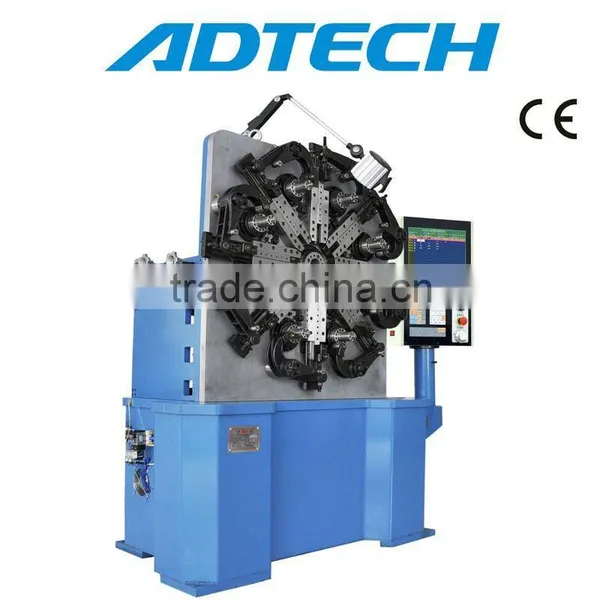

GH-CNC35 CNC Multi-purpose Springs Machine

GH-CNC35 CNC Multi-purpose Springs Machine thumbnail-1
GH-CNC35 CNC Multi-purpose Springs Machine photo-1
US$ 1 - 1 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Brand Name:
ADTECH
Model Number:
GH-CNC35
Contact Supplier Request Quote Chat Now
ADTECH (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ADTECH
Model Number GH-CNC35

Specifications

CNC Spring Machine
Three axes CNC Spring Coiling Machine with good quality,moderate price.
CNC Spring Machine
It is designe

  1. GH-CNC35 cam axis CNC spring coiling machines feature:

    • GH-CNC35 spring machine is a  4/6-axis computerized spring machine consisting of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sets of group slide rails, the crank and the cam rotation axis. The crank and cam rotation have three mechanical action types: extruding, punching and molding.
    • The computerized cam rotation system can be set from 0.1~359.9". The wire feeding system is installed horizontally back of the machine.Every two wire feeding wheels is one group,there are three groups.
    • GH-CNC35 spring machine is equipped with ADT-CNC502 computer. The computer system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.
    • The rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house.The cam can rotate up to 360" and also can move left and right or do the fixed-point motion.
    • For various tension springs, like English type and German type, a secondary processing house is installed on the main machine. The secondary processing house can be driven by one 2kw servo motor. The cylinder arm can take the semi-finished tension springs manufactured by the main machine and pass them to such secondary processing house. The control programming and cam system of the secondary processing house can work independently, so the production speed can be improved.
    Optional accessories:
             Cutting tool, rolling axis, secondary processing machine, safety door

    Technical paremeters for GH-CNC35 cam axis CNC spring coiling machines

    Model

    GH-CNC35

    Axis

    4 or 6 Axis

    Diameter

    0.8~3.5mm

    Max Feeding Dia

    100mm

    Max Feeding Length

    unlimited

    Max production speed

    75RPM

    Probe

    4set

    Cam Servo Motor

    5.5kw

    Wire Feed Servo Motor

    5.5kw

    Axis Servo Motor

    1.0kw

    Coiling Axis (optional accessories)

    1.0kw

    Power AC

    three-phase 380V

    Dimension

    1900 X 1005 X 1900mm

    Weight

    1800kg

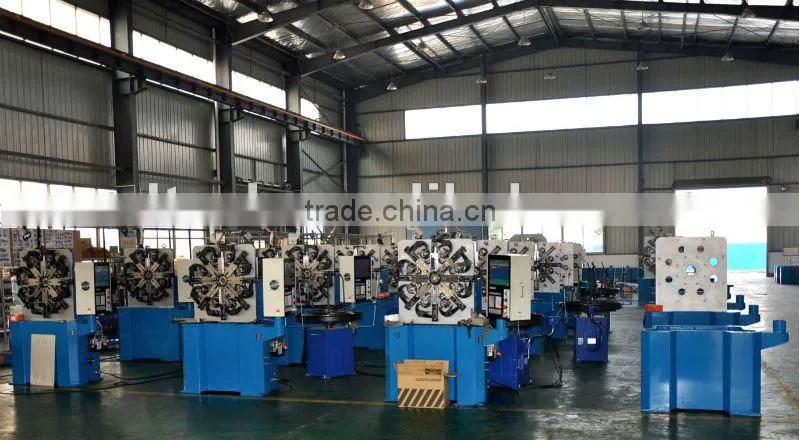

     GH-CNC35 CNC Multi-purpose springs machine



    GH-CNC35 CNC Multi-purpose springs machine
