Home > Electrical & Electronics > Variable-Frequency Drive > Stable AC Servo Motor Driver QS7AA020M,QS7AA030M,QS7AA050M2

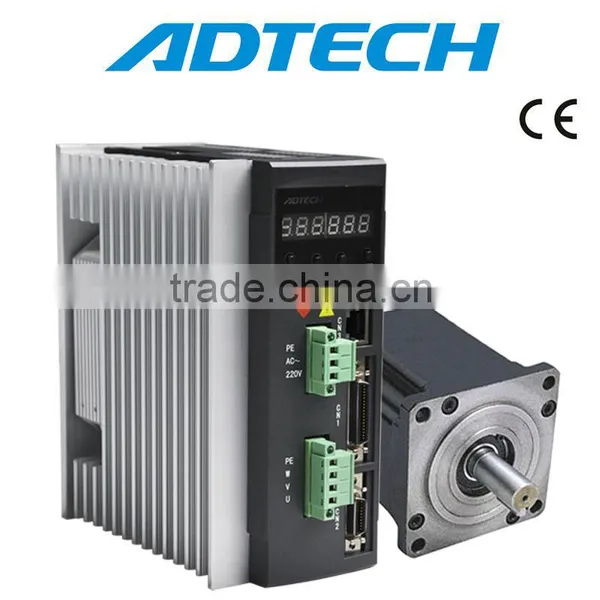

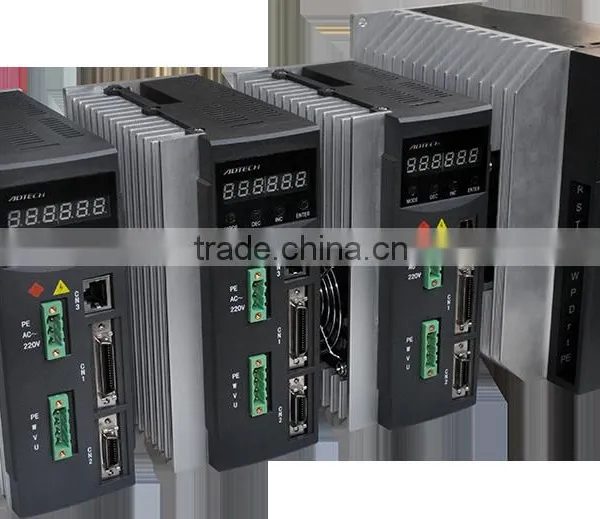

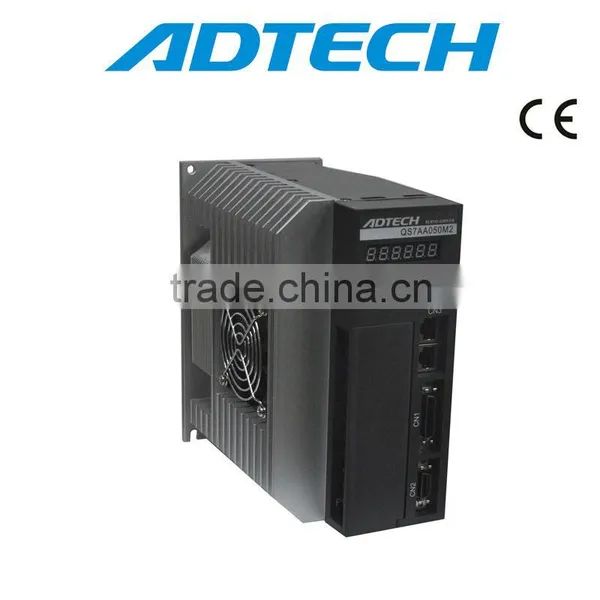

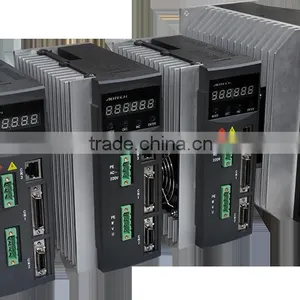

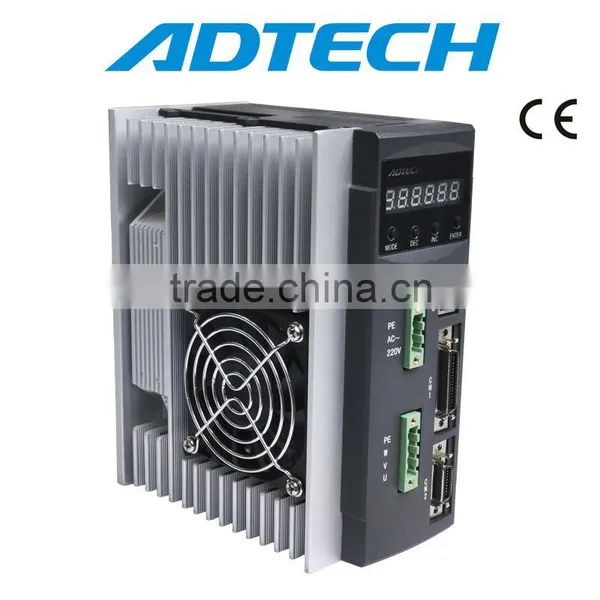

Stable AC Servo Motor Driver QS7AA020M,QS7AA030M,QS7AA050M2
US$ 1 - 500
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADTECH
Model Number:
QS7AA030M
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
85 Series Step MotorUS$ 1.00 - 1.00MOQ: 1 Set -
High-quality AC Servo Motor Driver QS7AA030MUS$ 1 - 500MOQ: 1 Set
-
(Hot Sales)Stable AC Servo Motor Driver QS7AA020M,QS7AA030M,QS7AA050M2--SHUS$ 1 - 500MOQ: 1 Set
-
Emobotic High-performance Servo Drive System With EtherCAT-CANegotiableMOQ: 1 Piece
-
High Quality AC Servo Motor 750W -ACH-09075BC-CAUS$ 1 - 500MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
ADTECH
Model Number
QS7AA030M
Motor Type
AC Motor
Feature Of Driver
- AC sine wave control, smooth torque, no impulse.
- 2500 line incremental photoelectric encoder, high positional accuracy, rotation positional accuracy can reach 1/10000R.
- Speed ration can be as large as 1:5000, has stable torque characteristics from low speed to high speed.
- Adopting high speed FPGA processing, motor fastest rotation speed can be 5000RPM.
- Rich and complete parameter setting can be configured with different ways of working and operating characteristics to adapt to different requirements.
- Possess position, speed and torque control mode, has applications in a wide range.
- Use intelligent Space Vector control (SVPWM), has much larger torque and much less noise than traditional SPWM.
- Up to three times overload design, stronger load ability.
- Perfect protection function: over current, overvoltage, over heat, encoder abnormal etc.
- Perfect condition monitoring function, such as positional deviation, rotate speed, feedback impulse, command impulse etc.
Paramenter Of Driver
| Input Voltage | AC220V -15%~+10% |
| Driver Current | 30A |
| Matching Motor | 750W~1500W |
| Using Temperatre | Working:45C Storage:-40C~55C |
| Relative Humidity | 40%~80% No Condensing |
| Atmosphere | 86~106kpa |
| Control Mode | 1.Position Control 2.Speed Control 3.Torque Control 5.Inside Pules Control 6.Electric Tool Carrier Control |
| Pulse Command | 1.Pulse+Direction 2.CW+CCW Pulse 3.Two-Phase AB Orthogonal Pulse |
| Control Precision | 0.01% |
| Response Frequency | <=200Hz |
| Pulse Frquency | <=500kHz |
| Speed Ratio | 1:5000 |
| Regenerative Brake | Internally Installed |
| Electronic Gear | 1/30000~30000/1 |
| Overload Capacity | <=300% |
| Feedback Pulse | 2500P/R |
| Protection Function | Over Current, Over Voltage, Overload, Over Heat, Lack Phase, Over Speed, Encoder Abnormal, Out Of Tolerance, Mode Abnormal Alarm |
