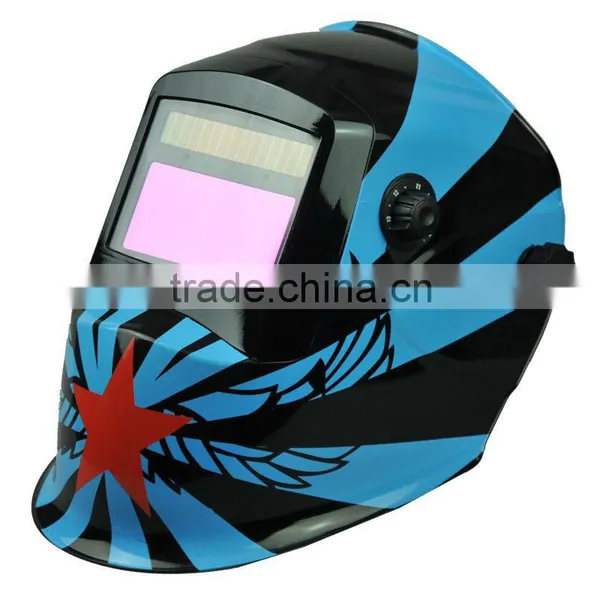

Continuous Shade-level Settings (9 to 13) Good Qulity Welding Helmet

Continuous Shade-level Settings (9 to 13) Good Qulity Welding Helmet thumbnail-1
Continuous Shade-level Settings (9 to 13) Good Qulity Welding Helmet photo-1
US$ 10 - 35 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hubei, China
Brand Name:
WELHEL
Model Number:
L1307293
Contact Supplier Request Quote Chat Now
Wuhan Welhel Photoelectric Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Wuhan shanghai ningbo etc
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hubei, China
Brand Name WELHEL
Model Number L1307293
Auto-Darkening Yes
Switch Time 1/25,000S
View Area 100*67MM
Solar Powered Yes
Cartridge Size 110*90MM, 110*90*8mm
Sensitivity Stepless adjustment, Stepless Adjustment
Power Supply Li-Mi & Solar Combination
Helmet Material Nylon

Specifications

Good qulity welding helmet
Big viewing area at 100*67mm
UV & IR protection:shade16
ANSI/CE/ISO9001

Continuous shade-level settings (9 to 13) good qulity welding helmet

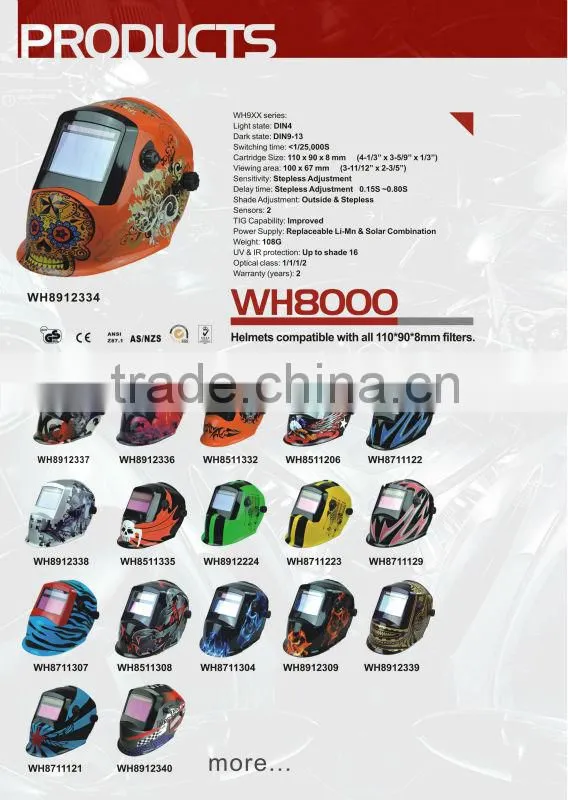

Mask: WH8000 series

Filter Optional: WH9**, WH7**, WH5**, WH4**, WH1**

Mask material: Nylon

 Continuous shade-level settings (9 to 13) good qulity welding helmet





Auto Darkening Lens Specifications (technical parameters)



                     AUTO     DARKENING     LENS     SPECIFICATIONS
  Best Economic Solution
MODEL WH900 Series WH700 Series WH500 Series WH400 Series Single Shade Series
913 912 711 712 713 714 715 716 500 501 511 512 513 514 515 516 521 400 401 403 300 111 101 103
Cartridge Size (mm) 110* 90 110*90 110*90 110*90 110*90 108 x 50.8
Viewing Window Size (mm) 100*67 100*49 92*42 92 *42 100 *49 98 *35 98* 35 95*31
Lens Thickness (mm) 8 8 8 8 8 8 5
Weight (g) 108 105 103 100 90 45 36
Light State DIN4 DIN4 DIN4 DIN4 DIN3
Dark State DIN9-13 DIN9-13 DIN9-13 DIN5-9 / 9-13 DIN9-13 DIN11
Switching time (ms) 0.04 0.04 0.04 0.1 0.5
Delay time Adjustment Inside & Stepless (0.15~0.80s) √ √   √
Inside & Switch       (Fast/Slow 0.25s/0.70s)     √   √ √
Sensitivity Adjustment Inside & Stepless √ √   √
Inside & Switch       (Low/High)     √   √ √
Shade Adjustment Outside & Stepless √ √   √   √   √   √
Inside & Stepless   √   √   √   √
Grinding Outside √     √   √
Inside   √   √
Power Supply Solar power & Lithium Battery combination   √   √   √ √   √   √ √ √
Solar power & replaceable battery √   √   √   √   √
Solar power & rechargeable battery   √
Water & Dust proof   √
TIG enhanced √ √ √   √
Warranty (years) 2 2 2 2 2 1
Certification CE EN379 1/1/1/2 1/1/1/2 1/1/1/2 1/2/1/1 1/1/1/2 1/1/1/2   1/1/1/2 1/2/1/2
ANSI Z87.1   √ √



Functions of good qulity welding helmet

Grinding

TIG enhanced

Water & Dust proof

Warranty (years): at least 1 year



Package of good qulity welding helmet Continuous shade-level settings (9 to 13) good qulity welding helmet Continuous shade-level settings (9 to 13) good qulity welding helmet

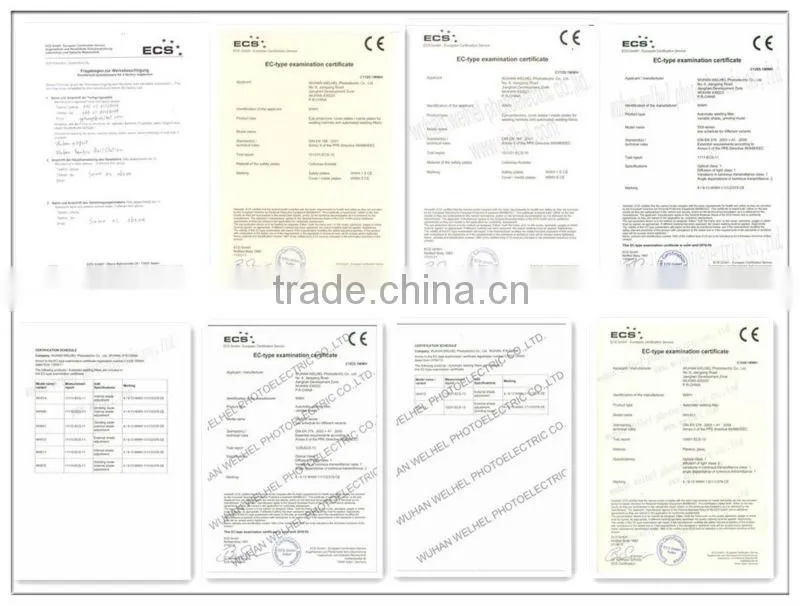

Certificate for good qulity welding helmet

CE



EN379



ANSI Z87.1



ISO9001:2008



Continuous shade-level settings (9 to 13) good qulity welding helmet Continuous shade-level settings (9 to 13) good qulity welding helmet Continuous shade-level settings (9 to 13) good qulity welding helmet

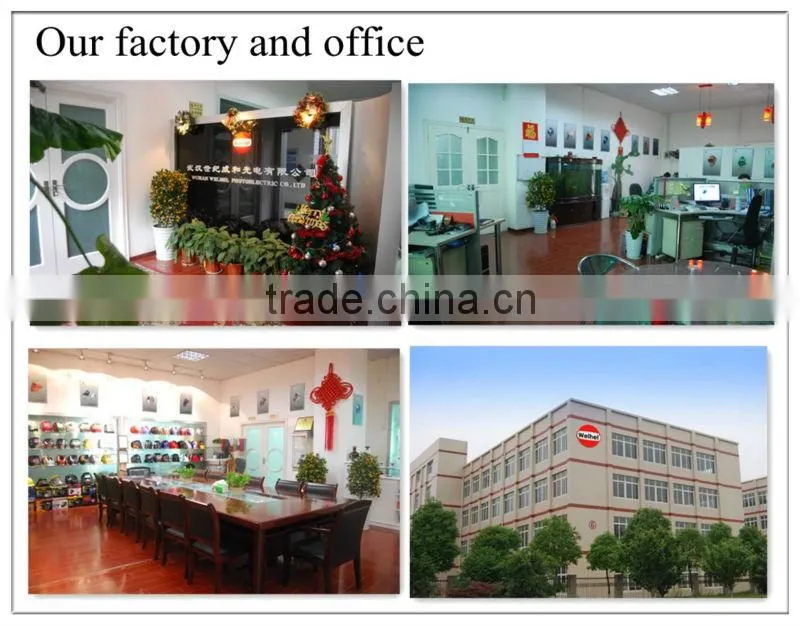

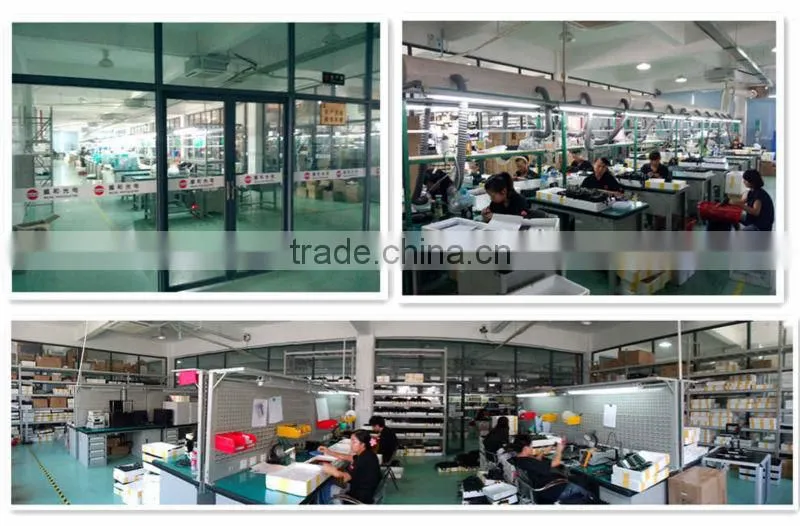

 Our office and factory



Continuous shade-level settings (9 to 13) good qulity welding helmet

Our fair show

 Continuous shade-level settings (9 to 13) good qulity welding helmet
