ADT-CNC4640 Four Axis Milling/Drilling CNC Controller Easy Operation With MPG and Extra Panel
US$ 1,000 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Milling Machine
Place of Origin:
China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CNC4640 Four Axis Milling/Drilling CNC Controller Easy Operation With MPG and Extra PanelUS$ 1,000 - 2,000MOQ: 1 Set -
CNC4640 Four Axis Milling CNC ControllerUS$ 1,000 - 2,000MOQ: 1 Set
-
ADT-500X4G300-5 Four Axis Industrial RobotUS$ 1 - 15,000MOQ: 1 Unit
-
ADT-600P4G300 4 Aixs Industrial Robot in StockUS$ 1 - 999MOQ: 1 Unit
-
SA1400 6 Axis Welding Robot STEP/ADTECH for MIG Welding WENegotiableMOQ: 1 Set
Condition
New
Application
Milling Machine
Place of Origin
China
Brand Name
ADTECH
Model Number
ADT-CNC4640
Dimension(L*W*H)
43*33*30
Weight
7KG
ADT-CNC4640 Four Axis Milling/Drilling CNC Controller easy operation with MPG and extra panel
ADT-CNC4640 a 4 axis CNC controls are designed for Milling/Drilling, adopt ARM9 high performance CPU and super-lager programmable FPGA, real-time multi-task control technology and hardware interpolation technology. Guaranteed the efficiency of μm-level precision processing. 256M electronic hard drive, satisfying the processing of wordpiece with all kinds of large programs, 7 inch color display screen.
Feature
- 7.0 Inch TFT color display, 800 X 400 hight resolution display Ethernet network interface, 10/100M enthernet port.
- U flash and USB communication port, USB TO PC communication connector.
- Multi-language
- Additional plate (FCNC4M) and MPG (CNC4A)
- ARM 9 CPU+FPGA double core processor
- PLC function
- Four chanel 2 mb/s high speed pulse output , 6 chanel AB phase decoder
- Two chanel serial RS232 connector.
- SD card big capacity memory connector.
- Support 4 axis linkage.
Optional Spare Parts:

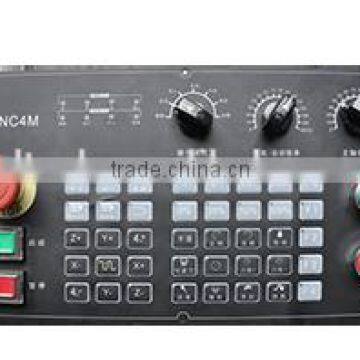

(Handheld box-CNC4A) (Additional panel- FCNC4M)
CNC System Function
-
Self-diagnosis
Diagnose CPU, memory, LCD, I/O interface, parameter state, coordinates and processing program comprehensively every time the system is started or reset; diagnose power supply, principal axis, limit and I/O ports in real-time during operating. -
Compensation
Automatic reverse clearance compensation
Automatic tool length compensation
Automatic tool radius compensation
Automatic tool radius biasing and automatic tool tip transition -
Abundant instruction system
Scaling instruction
Mirror processing instruction
Tool biasing instructions
Program cycle, program skip, program shift, program transfer, different end processing modes, macro definition and program management instructions
Fixed-point instructions: starting point, setting point, etc.
Linear, arc and spiral interpolation instructions
Six workpiece coordinate systems, nine extension coordinate systems and one reference point -
Full English menu operation & full screen edit
4640/4620 CNC control system uses cascading menu structure and full Chinese operation to ensure simple operation and visibility. -
Abundant error-correction functions
Point out the nature and correct the errors in operation. -
Program exchange between CNC system and PC
Perform CAD/CAM/CAPP auxiliary programming with abundant software in PC, and then transmit CNC program to the system through communication interface (USB disk, RS232 interface), or transmit the programs from the system to PC. -
CNC system operating condition
Operating voltage
24V DC (with filter)
Operating temperature
0°C— 45°C
Optimum operating temperature
5°C— 40°C
Operating humidity
10%——90%(no condensing)
Optimum operating humidity
20%——85%
Storage temperature
0°C—50°C
Storage humidity
10%——90%
Operating environment
No excessive dust, acid, alkali, corrosive and explosive gases, no strong electromagnetic interference
-
CNC System Application:
- milling machinery
- hardware processing industry
- die processing industry
- engraving industry
- punching machinery
- router retrofit
