6 Axis Stand-alone Motion Controller ADT-8860

6 Axis Stand-alone Motion Controller ADT-8860 thumbnail-1
6 Axis Stand-alone Motion Controller ADT-8860 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
adtech
Model Number:
ADT-8860
Contact Supplier Request Quote Chat Now
ADTECH (Shenzhen) Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Brand Name adtech
Model Number ADT-8860

Specifications

1) 6 axes servo/step control;
2) stand-alone controller;
3) support PLC;
4) apply ARM9;
5) apply Modbus protocol

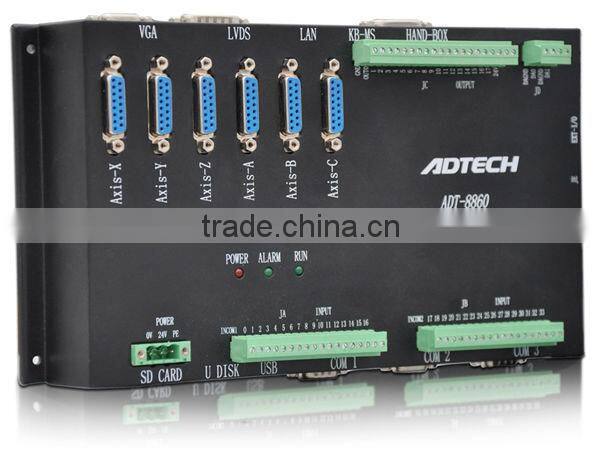

ADT-8860 is a 6-axis motion controller with high performance and multifunction. It uses Modbus communication protocol and standard RJ45 internet interface.



Feature:

1) 6-axis servo/step control

2) 40 digital input, 24 digital output

3) random 2-3 axes linear interpolation, fixe 4-6 axes linear interpolation

4) linear/circular/helix/continuous interpolation

  • Input voltage: 12-24V
  • High level:>4.5V
  • Low level:<1.0V
  • Isolation voltage: 2500V DC
  • Optical coupling input delay: ≤0.1ms

6) counting input

  • Channel: 6AB+Z phase coding input, all optical coupling isolation
  • Maximum counting frequency: 2MHz
  • Input voltage: 5V
  • High level: >4.5V
  • Low level: <1.0V
  • Isolation voltage: 2500V DC
  • Optical coupling input delay: ≤0.1ms

7) Pulse output

  • Channel: 6-axis pulse, 6-axis direction, all optical coupling isolation
  • Maximum pulse frequency: 1MHz
  • Output type: 5V differential output
  • Output mode: pulse+direction or pules+pulse

8) Switch quantity output

  • Output channel: 40, all optical coupling isolation
  • Output type: NPN collector for open circuit 12-24VDC, rated current 0.5A, maximum current of single channel is 1A
  • RS232 communication rate(bps): 1200240048009600192003840057600115200





Function:

  • Use SANGSUNG series S3C2440 CPU(ARM9), up to 533MHz main frequency;
  • Use large scale programmable device FPG, employ real time multitask control technology and hardware interpolation technology, ensuring high stability during working;
  • Use high segment drives, enabling high precision processing and smooth running;
  • Random 2-3 axes and 4-6 axes linear interpolation;
  • Have software arc interpolation;
  • Linear acceleration and deceleration;
  • Support part of common G code processing instructions, and realize offline or real time processing and control through G code;
  • Use C programming language, support 32 user program to run at the same time, support PLC;
  • Read the logical position£¬actual position and driving speed in real time during motion;
  • 6-axis pulse/direction input, 34-channel optical coupling input, 6-channel alarm signal input, 6-axis coder AB+Z pulse input;
  • 18-channel collector open circuit optical coupling isolation output, another 6-axis output can be used for servo universal control or servo alarm clear;
  • Use standard RJ45 Ethernet interface and Modbus communication protocol;
  • Own 64M SDRAM and 256M Nand FLASH ROM storage, which can meet the need of complex processing and running;
  • Support USB 1.1 interface, users can update the software to the latest application;
  • Reasonable structure, full optical coupling isolation control, superior anti-jamming capacity;
  • RS232 (¡À15KV antistatic protection);
  • Buzzer prompt;
  • All hardware components are compiled into function library, and no hardware knowledge is required for the development.

Application enviroment:

  • Power supply:DC 24V;
  • Power consumption: 5W-15W;
  • Operating temperature: 45°C;
  • Storage temperature: -40°C-55°C;
  • Operating humidity: 40%-80%;
  • Storage humidity: 0%-95%;

Application:

Dispensing / Gluing / Brushes-making/ Engraving/  Drilling/ Milling, etc.

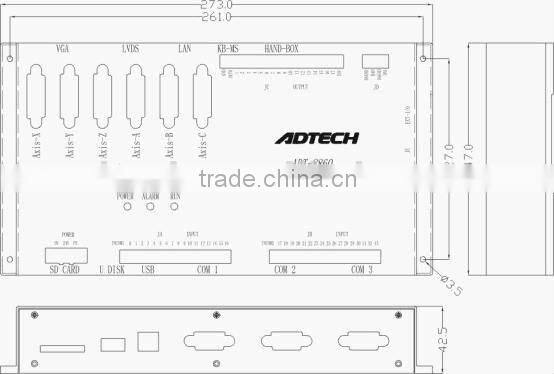

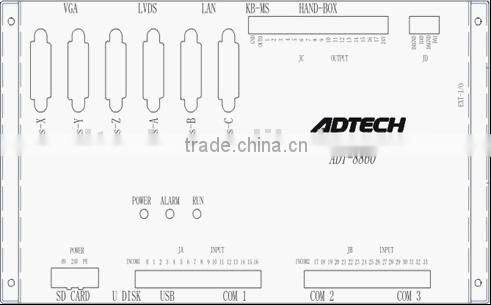

ADT-8860 Motion Controller Size:
