GH-CNC416 Cnc Compression Spring Machine TI-4
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADTECH
Model Number:
GH-CNC416
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GH-CNC20 CHEAP CNC Spring Machine Ti-87NegotiableMOQ: 1 Set -
GH-CNC2208 HIGH SPEED Compression Spring Machine -TI6NegotiableMOQ: 1 Set
-
CNC Spring Machine for Various Tension Springs&tension Spring MachineNegotiableMOQ: 1 Set
-
GH-CNC35 Cam Axis CNC Spring Coiling MachinesNegotiableMOQ: 1 Set
-
GH-CNC50 CNC Universal Spring Coiling Machinery(Diameter 2.0~4.5mm)NegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
ADTECH
Model Number
GH-CNC416
After-sales Service Provided
Engineers available to service machinery overseas
Description

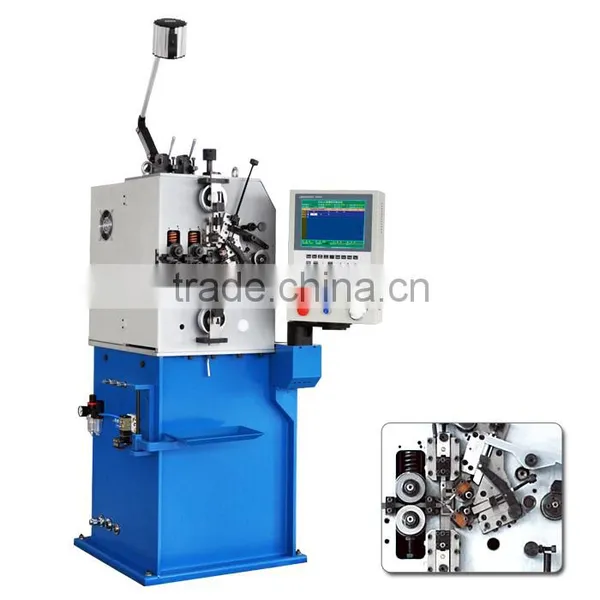

- 1. GH-CNC416 spring machine is a four-axis CNC compression spring machine consisting of wire feeding axis, outside diameter axis, pitch axis and cutter axis. The four axes can act independently or synchronously.
- 2. The compression spring machine upper and lower is driven by two motors independently for controlling the space and cutting tool. The two axes can be exchanged.
- 3. The spring machine pitch can be adjusted by two methods easily: cam inclined knife type and shaft pushing type.
- 4. The outside diameter is driven independently. The outside diameter can be adjusted by the preset program easily
- 5. This spring machine can manufacture the compression springs of any shape without adjusting the mechanical parts and absolutely avoid changing the cam plate.
Product Range:
This compression spring machine can make various compression springs, oil seal springs, battery springs, taper springs, double-taper springs, safe springs, clip spring as well as various simple wire molding
Technical Paremeters for 4-axis CNC Compression Spring Machine GH-CNC416:
| Model: | GH-CNC416 |
| Wire Diameter: | φ0.4~1.6mm |
| Axes: | 4 axes |
| Maximum Outside Diameter: | 20mm |
| Maximum Feeding Length: | Unlimited |
| Maximum Manufacture Speed: | 300pcs/min |
| Wire Feed Servo Motor: | 1.5KW |
| Outside Diameter Servo Motor: | 1.0KW |
| Pitch Servo Motor: | 1.0KW |
| Cutter Servo Motor: | 1.0KW |
| Power AC: | 3Phase 380V |
| Dimensions(L*D*H): | 1040*600*1575MM |
| Machine Weight: | 450KG |
