Home > Products > CNC Spring Machine > GH-CNC50 coiling spring machine high speed high precision spring machine

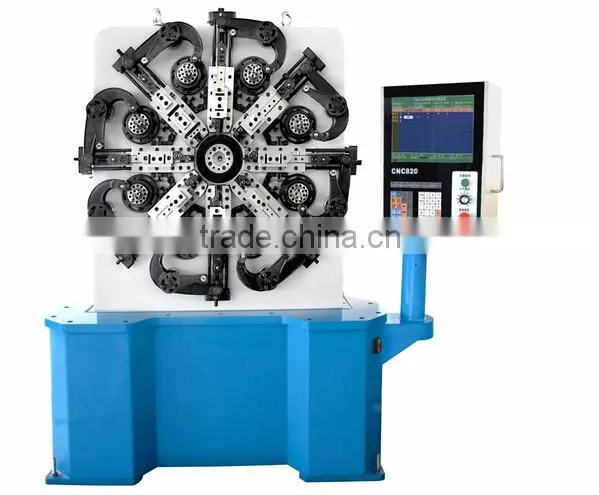

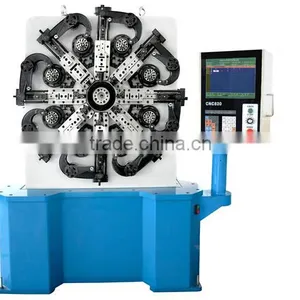

GH-CNC50 coiling spring machine high speed high precision spring machine
USD $8000.00 - $8000.00
/ Unit
1 Unit(Min.Order)
- 200 Unit / Units per Month
- Shenzhen
- T/T Credit Card
You May Like
-
4 axis CNC Milling Machine To Router 2d 3d Woodworking Craft
-
Jotun JT-SDJ Industrial Automatic Metal Sheet Surface Polishing Machine
-
Large Metal Sheet Metal Workpiece Processing Deburring Chamfering Plane Belt Polishing Machine
-
Heavy Duty Automatic Wide Belt Metal Sand Deburring Machine
-
Metal Plate Deburring and Rust Removal Machine Steel Plate Sand Belt Drawing and Polishing Equipment Flat Polishing Machine
-
Metal Flat Sheet Laser Cutting Parts Deburring Grinding Polishing Machine Manufacturer
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | ADTECH | Model Number: | GH-CNC50 |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Description
- 1. GH-CNC50 coiling spring machine is a CNC spring machine, it divided into the cam, send the line, switch to the core, curl four-axis, the mechanical part of a total of eight sets of slide, crank and rotation axle. Cam fixed to the rotating axle, you can screw adjustment front and rear, and used to promotion the movement of the slide. Mechanical action in three ways: extrusion, stamping and molding;
- 2. The computerized cam rotation system can be set from 0.1-359.9°, every two wire feeding wheels constitutes of one group, total three groups;
- 3. GH-CNC50 coiling spring machine is equipped with ADT-CNC820 spring machine controller. The control system can save 1000 material numbers. Axis location, feeding data, production speed and production output are display on the screen. The program data can be set and changed easily;
- 4. The rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam drives it rotate 360°, also can control direction action or designated moves back and forth;
- 5. Optional accessories: Cutting tool, rolling axis.
Technical Paremeters for Coiling Spring Machine GH-CNC50:
| Model : | GH-CNC50 |
| Wire Diameter: | φ2.0~5.0mm |
| Axis Count: | 3 Axis |
| Maximum Feeding Length: | Unlimited |
| Maximum Manufacture speed: | 60pcs/min |
| Wire Feed Servo Motor: | 7.0KW |
| Cam Server Motor: | 5.5 KW |
| Z-axis Servo Motor: | 1.5 KW |
| Power AC: | 3-Phase, 380V |
| Dimensions(L*D*H): | 1800*1300*2100MM |
| Machine Weight: | 3500KG |
Contact Us
- ADTECH (Shenzhen) Technology Co., Ltd.
- Contact nameFelix Gao
- Phone86-755-26099116
- Address5th Floor, Tianxia IC Industial Park, Yiyuan Road, Majialong, Nanshan District, Shenzhen, Guangdong, China Shenzhen,Guangdong
