GH-CNC20 CNC Universal Spring Coiling Machine High Speed 1

Name: GH-CNC20 CNC Universal Spring Coiling Machine High Speed 1
Brand: ADTECH
SKU: 107840409
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

China

Brand Name:

ADTECH

Model Number:

GH-CNC20

ADTECH (Shenzhen) Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin China

Brand Name ADTECH

Model Number GH-CNC20

After-sales Service Provided Engineers available to service machinery overseas

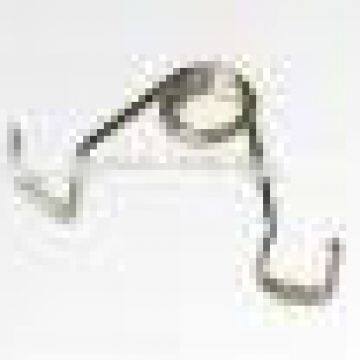

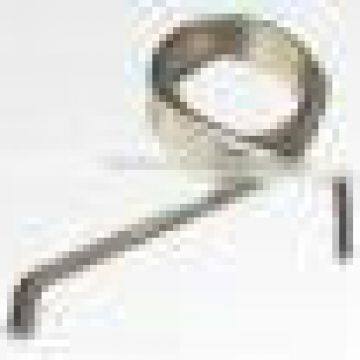

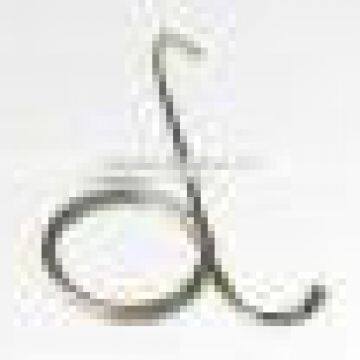

GH-CNC20 3 axes cnc universal torsion spring machinemaking spring example:

GH-CNC20 3 axes cnc universal torsion spring machine description:

GH-CNC20 cnc universal spring machine consists of cam axis, wire feeding axis, rotation core and rolling axis. The mechanical part has eight sliding houses.

The crank and cam rotation have three mechanical action types: extrusion, punching and molding.
The computerized cam rotation system can be set from 0.1~359.9". Every two wire feeding wheels is one group,there are two groups.

GH-CNC20 machine is equipped with ADT-CNC820 computer. The computer system can save 1000 material numbers. Axis location, feeding data, production speed and production output are displayed on the screen. The program data can be set and changed easily.

The rotation core system is installed on the axis. The axis can rotate leftwards and rightwards. The rolling axis is installed on the sliding house. The cam rotate is up to 360". more than that can come leftwards and rightwards or the rotation of the cam in a specific.

For various tension springs, like English type and German type, a secondary processing house is installed on the main machine. The secondary processing house can be driven by one 1kw servo motor. The cylinder arm can take the semi-finished tension springs manufactured by the main machine and pass them to such secondary processing house.

The control programming and cam system of the secondary processing house can work independently, so the production speed can be improved.

Optional accessories: Cutting tool, rolling axis, secondary processing machine, safety door.

Technical paremeters for GH-CNC20 3 axes cnc universal torsion spring machine:

Model	GH-CNC20
Axis	4 or 6 Axis
Diameter	0.3~2.5mm
Max Feeding Dia	100mm
Max Feeding Length	unlimited
Max production speed	100RPM
Probe	2set
Cam Servo Motor	2.7kw
Wire Feed Servo Motor	2.7kw
Axis Servo Motor	1.0kw
Coiling Axis(optional accessories)	400w
Power AC	three-phase 220V
Dimension	1040X600X1575mm
Weight	800kg
