Home > Manufacturing & Processing Machinery > Metallurgy Machinery > CNC Automatic Coil Spring Machine,two-axis Computerized
CNC Automatic Coil Spring Machine,two-axis Computerized
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Adtech
Model Number:
GH-CNC2208
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GH-CNC416 Spring Coiling Machine & Spring CoilerNegotiableMOQ: 1 Set -
GH-CNC20 3 Axes Universal Cnc Spring MachineNegotiableMOQ: 1 Set
-
GH-CNC2208 CNC Spring Coiling Machine/compression Spring MachineNegotiableMOQ: 1 Set
-
4 Axes CNC Spring Making Machine (GH-CNC416)NegotiableMOQ: 1 Set
-
GH-CNC50 4/6-axis Cnc Universal Wire Bending MachineNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Adtech
Model Number
GH-CNC2208
Specifications
1) CNC Automatic Coil Spring Machine,two-axis2) Used to make wire molding etc
3) High speed automatic CNCspring coiler

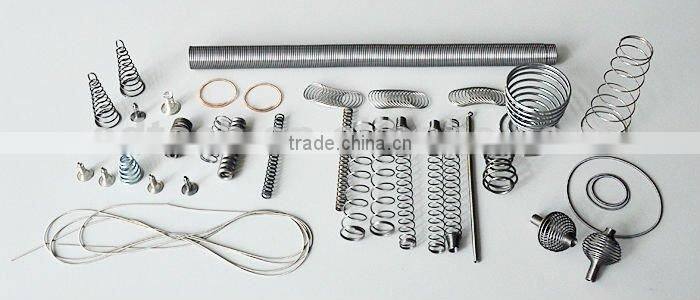

GH-CNC2208 CNC Coil Spring Machine Making Spring Example
GH-CNC2208 CNC Coil Spring Machine feature:
- GH-CNC2208 spring roll machine is a two-axis computerized spring roll machine consisting of wire feeding axis and cam axis. The two axes can work independently or synchronously by means of the program.
- The space, outside diameter and cutting tools are driven by the cam motor. The wire feeding is driven by independent feeding motor.
- The cutting tools can be adjusted by the cabinet's inside and outside easily and quickly.
- This spring machine can manufacture various compression springs, oil seal springs, battery springs etc.
Optional accessories:
Torsion device, oil seal device, prize-up device, length gauge
Purchase guidance:
- GH-CNC2208 high speed compression spring roll machine;
- GH-CNC2208L torsion and compression spring roll machine;
- GH-CNC2208Y oil seal compression spring roll machine.
Technical paremeters for 2-axis CNC Coil Spring Machine GH-CNC2208:
| Model | GH-CNC2208 |
| Axis | 2 Axis |
| Diameter | 0.15~0.8mm |
| Max Feeding Dia | 20mm |
| Max Feeding Length | unlimited |
| Max production speed | 500RPM |
| Probe | 2set |
| Cam Servo Motor | 1.0kw |
| Wire Feed Servo Motor | 1.0kw |
| Power AC | three-phase 220V |
| Dimension | 870 X 780 X 1600mm |
| Weight | 350kg |
