Home > Electrical & Electronics > Telecommunication & Broadcasting > Fiber Optic Equipment > 8Ports EPON OLT for FTTH Solution

8Ports EPON OLT for FTTH Solution

Name: 8Ports EPON OLT for FTTH Solution
Brand: VTEK
SKU: 107814431
Availability: InStock

8Ports EPON OLT for FTTH Solution thumbnail-1

8Ports EPON OLT for FTTH Solution photo-1

US$ 4,000 - 6,000 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

VTEK

Model Number:

VP-6000

Contact Supplier Request Quote Chat Now

Shenzhen Vtek Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name VTEK

Model Number VP-6000

Specifications

1,1U 8 Port EPON OLT for FTTH Solution
2,EPON OLT support 512 ONU
3,2 PON service slots
4,Support 8PON system
5,CE,FCC,RoHS

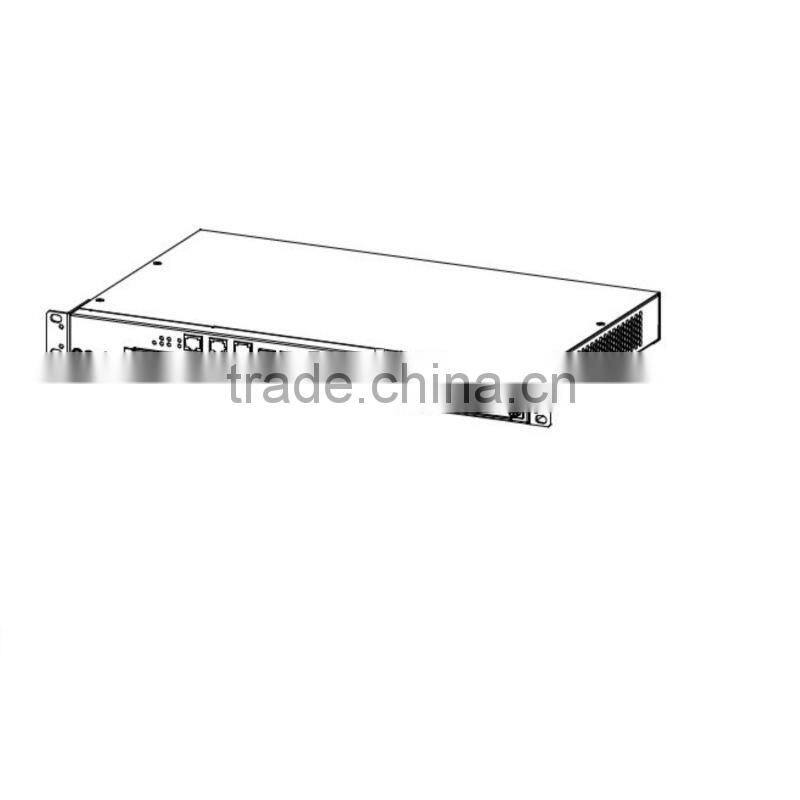

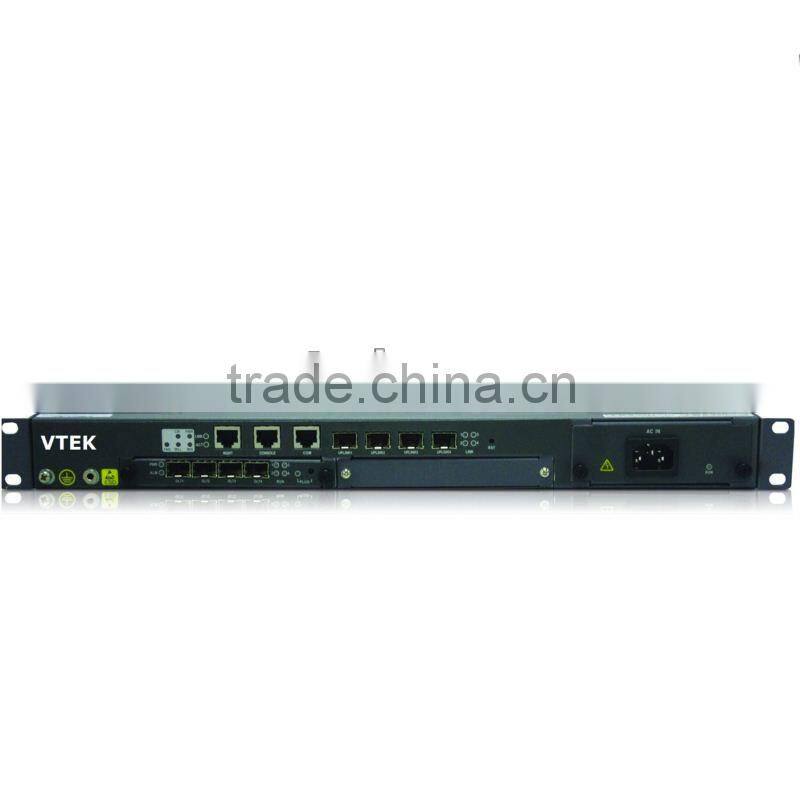

VP-6000 EPON OLT

Summary:

VP-6000 EPON (Ethernet Passive Optical Network) OLT (Optical Line Terminal) is developed by VTEK Complied with IEEE802.3ah and standards in communication industry; they can accomplish the long-distant voice, data transmission, as well as digital video services. It provides a direct optical interface to the Ethernet/IP network core and can be run with VTEK EPON ONU to make more efficient network solutions. VP-6000 supports 1Gbps PON transmission rate and the modular design makes the broadband management more flexible. With the split ratio of 1:64, VP-6000 supports different network applications and improves the product competitiveness.

Features:

l Supports 1-4 PON systems, can support up to 8PON system, support 256/512 ONUs, and split ratio can be 1:64, transfer up to 20Km.

l Flexible port combination can satisfy various interface demands

l 19-inch Standard Rack-Mount Width, less space occupation

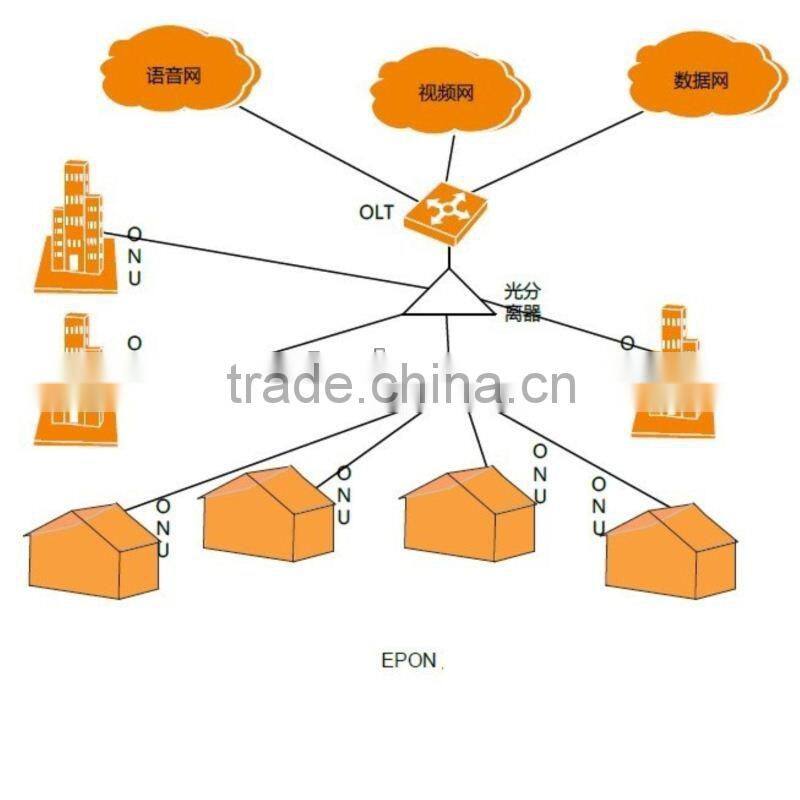

l Advanced technology and point-to-multi-point tree topology makes the access more agile

l Provides 1Gbps up and down steam PON transmission rate, ensuring the maximum bandwidth for data and video traffic

l Supports DBA and SLA

l RSTP provides the redundancy of the backbone network

l IGMP Snooping ensures the utilization of network infrastructure

l Supports multicast VLAN

l Supports various management

l Powerful OAM functions enable local and remote diagnostics, flexible provisioning and configuration of the OLT platform

Specifications

Options

Details

Hardware

Fixed ports

4 10/100/1000Base-T ports

1 10/100Base-TX managed port

1 EXT port

1 console port

Expansion slots

2 PON service slots, one PON Service slots support 4 PON Ports

PON features

1Gbps up and down bandwidth

Network coverage: 60Km

High sensitivity optical receiver: more than -30dBm

Authentication: ONU authentication

LED Indicators

Power/System (per device)

Link/Activity (per port)

Dimensions (W×D×H)

432mm×275mm×44mm

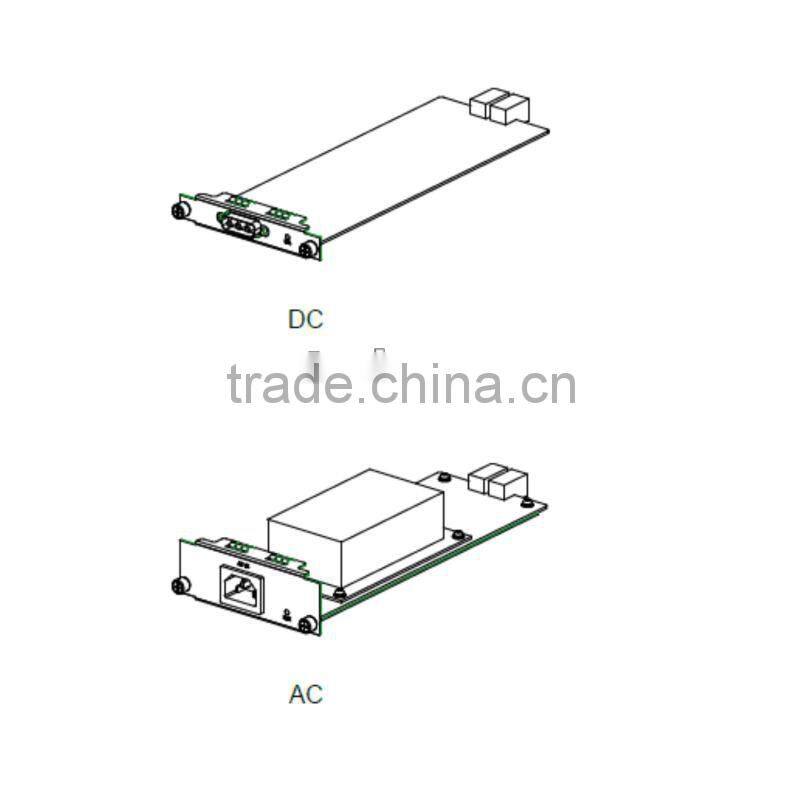

Power

Input: AC 100~240V, 50~60Hz

Max Consumption: 100W

Temperature

Operating Temperature -5ºC~50ºC

Storage Temperature -40ºC~75ºC

Humidity

Operating Humidity 10%~85% Non-condensing

Storage Humidity 5%~95% Non-condensing

Software

QoS

Back pressure, IEEE 802.3x

CoS, WRR, SP, FIFO

802.1p, DSCP

Port rate limitation

DBA, SLA

VLAN

Port-based VLAN

GVRP

IEEE 802.1Q VLAN Relay

Multicast

IGMP Snooping

Security

Loopback Detection

Expansion slots support hot plug

EAPS

EPON optical circuits protection

Static MAC Address

Users(per port) limitation

Port Isolation

Broadcast Storm Prevention

ACL

Data Encryption

Management

Web-based GUI, CLI, SNMP

Ordering Information

Model	Description
FP 6400 EPON OLT

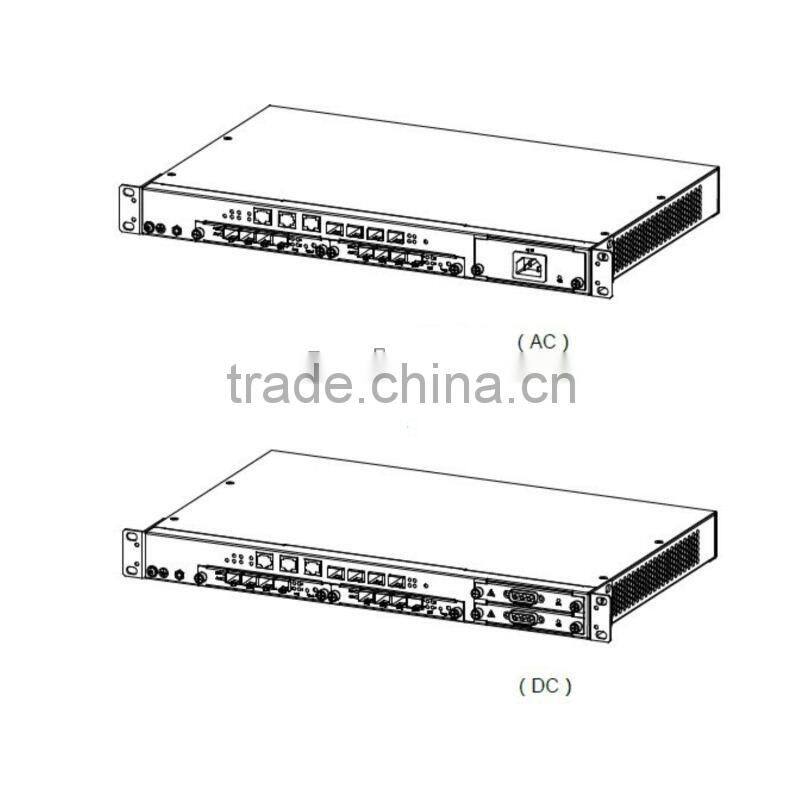

VP-6000	1U EPON OLT, 4 GE ports, , 1 EXT Port, 1 FE managed port, 1 console port, 2 PON service slots, supports 1:64 splitting ratio, AC.
PON Interface Card (Optional)

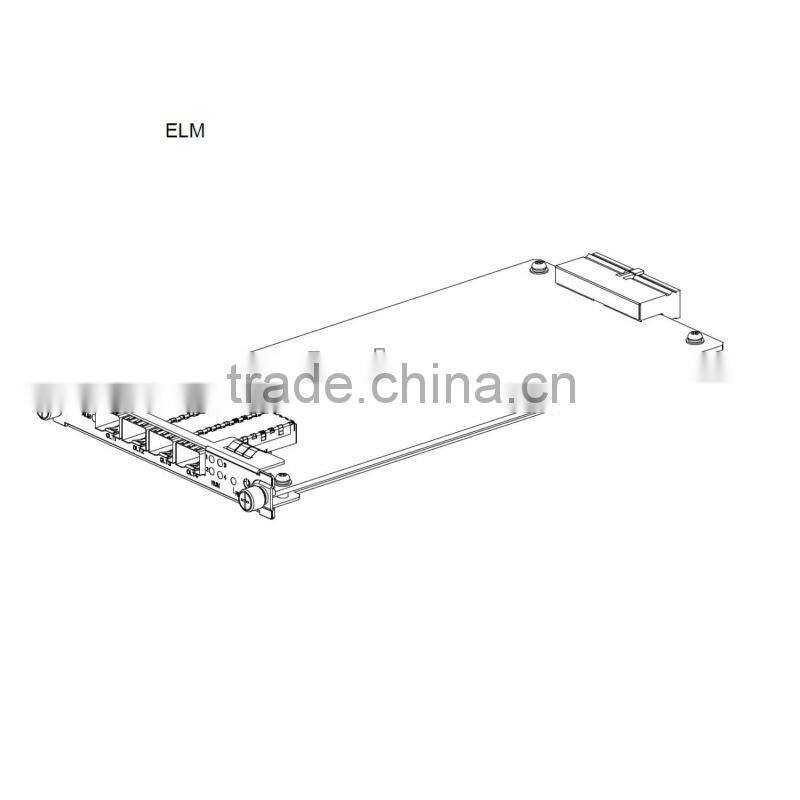

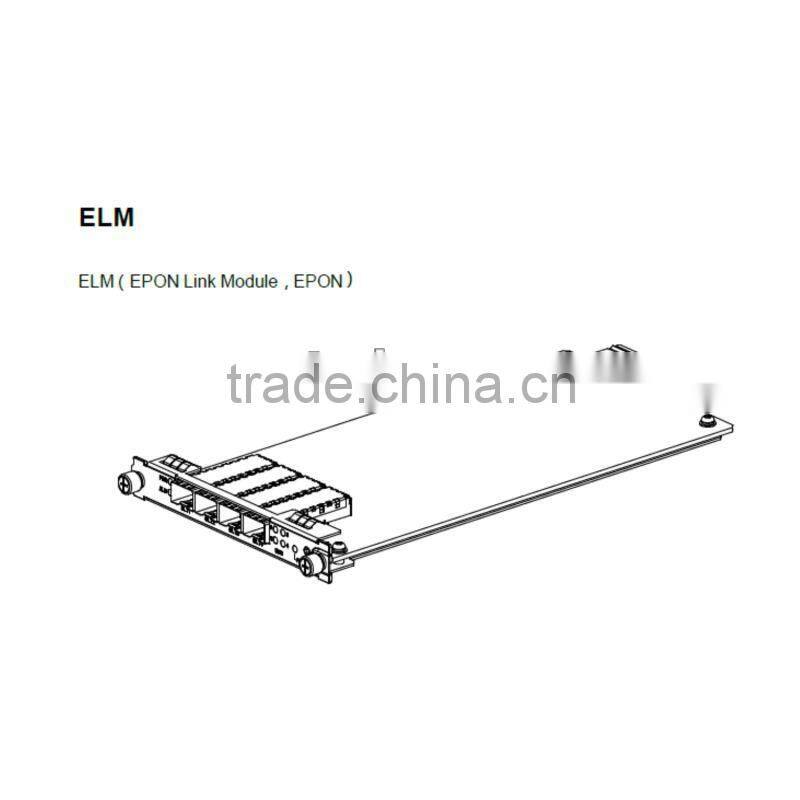

VP-604	4 PON port service card, supports 1:64 splitting ratio
Optical Transceiver (Optional)
VP-601	Gigabit EPON OLT Transceivers
VP-602	Gigabit Ethernet Transceivers
