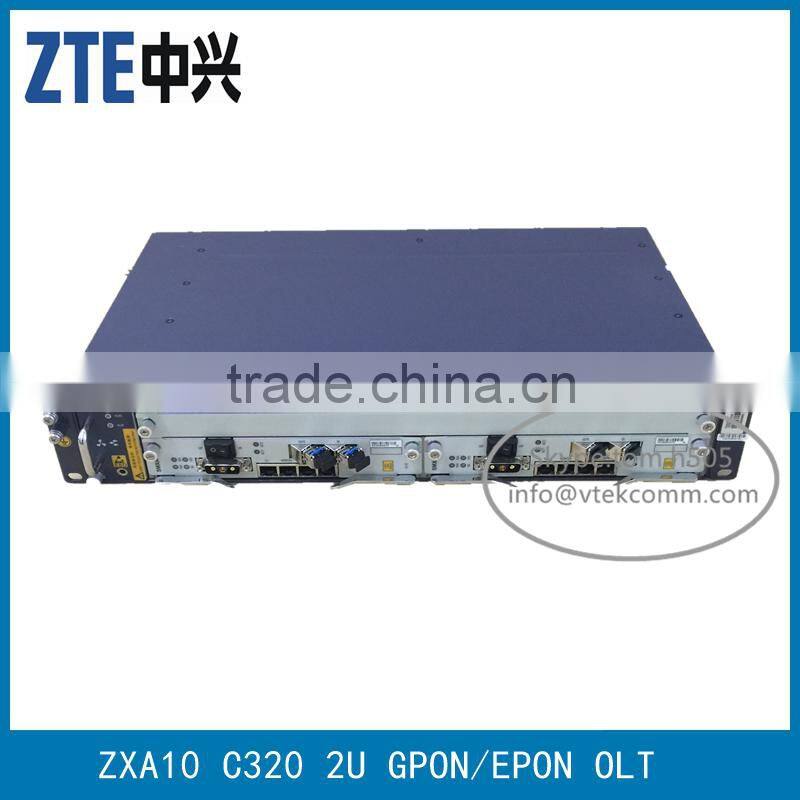

Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C320
Original Optical Line Terminal GPON/EPON/GEPON OLT ZTE ZXA10 C320
ZTE ZXA10 C320 configuration:

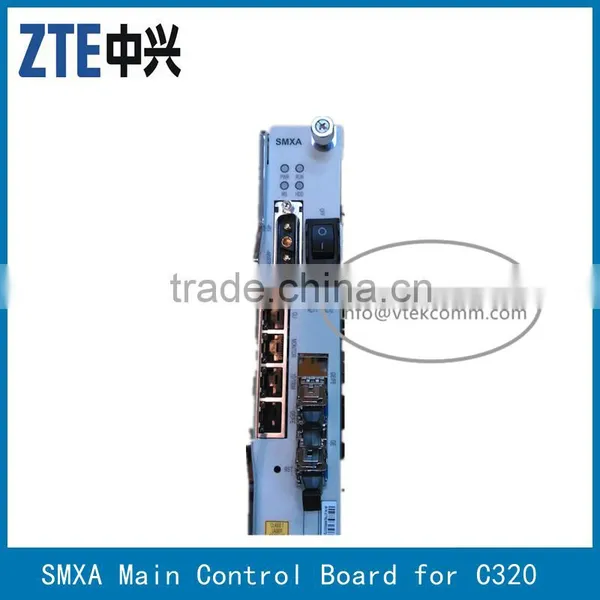

2 SMXA/1 main control board; ( Control, GE Uplink and DC power 3 in 1 card)

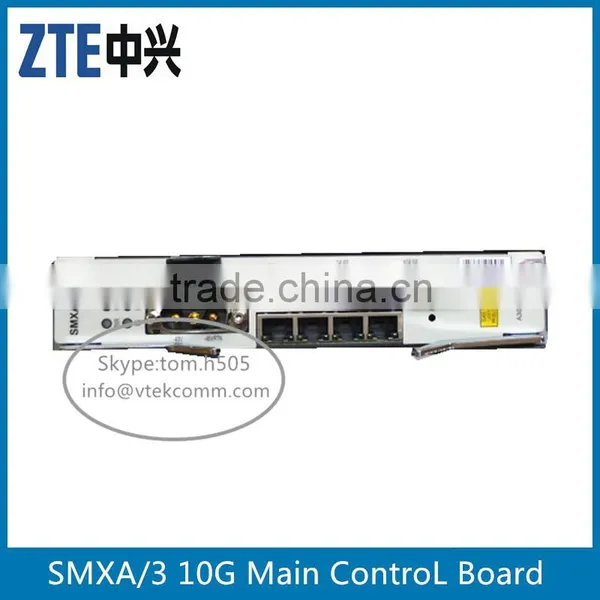

- SMXA/3 10G Uplink main control For Option

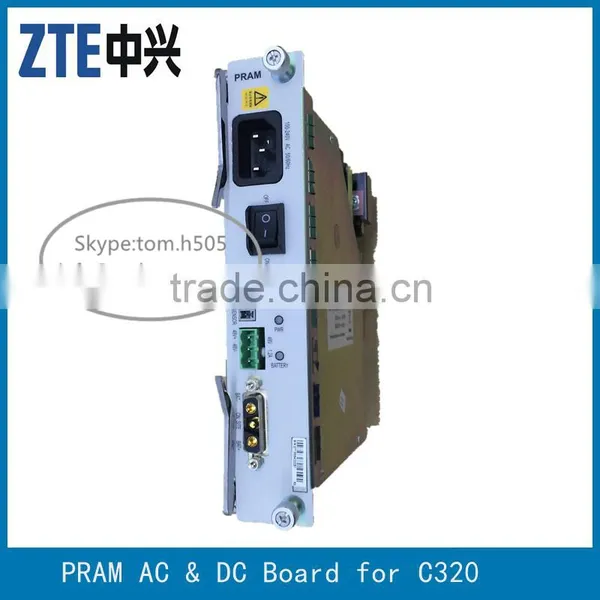

- PRAM DC & AC Power board for Option

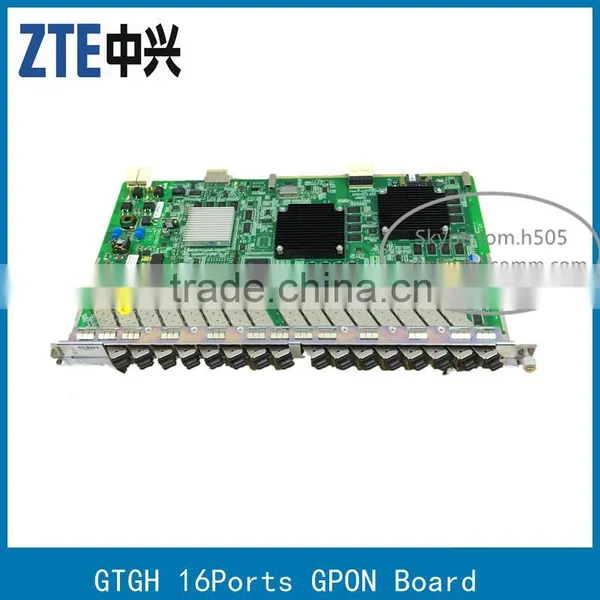

1 GPON or EPON 8 ports board with 8 Modules; (GTGH ETGH16Ports for Option)

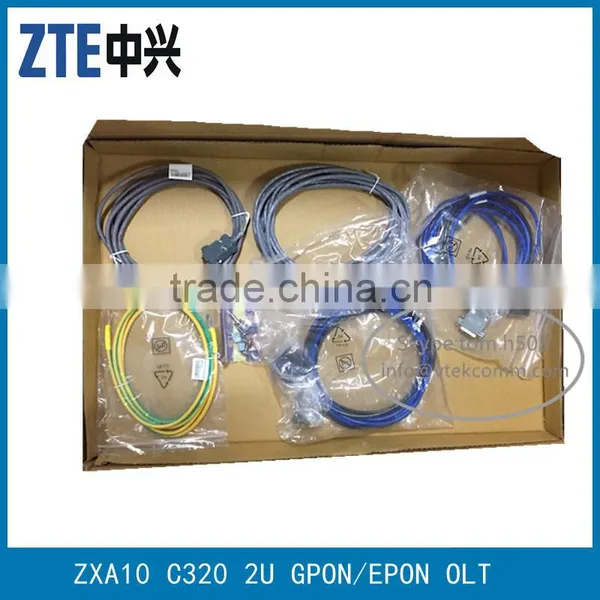

2 Power cables
1 RJ-45 first turn 9-pin RS-232 female network cable
1 RJ-45 Network cable

The ZTE ZXA10 C300 are 48V DC input, the Power Rating is 48V - 60V; EMERSON EPS30-4815AF are Recommend, Click Below for detail informaiton:
EMERSON 220V To 48V 30A Power converter EPS30-4815AF for C300 C320 C220 MA5600T MA560T MA5683T MA5608T OLT Power supply
ZTE OLT ZXA10 C320 GPON Small-capacity Basic Configuration with 1GTGO Future-proof and high-capability optical access platform.
With the requirements of communication services increasing, the value-added services (VAS) including 3D network games, video conference/phone, Video on Demand (VoD) and IPTV are key means for operators to provide differential services to attract more subscribers, and gain income growth.
ZTE ZXA10 C320, a small size, full-service optical access convergent platform, provides carrier class QoS and reliable network to meet the requirements for small-scale implementation of FTTx services.
Product Features
Small Size and Compact Design
2U Height: Facilitates installation and saves room space and backbone fibres.
High Density:Provides up to 32 GPON/EPON ports and 48 P2P ports per chassis.
Flexible Networking and Full-Service Access
Multi-application Scenarios: FTTH, FTTB, FTTV, PON+EoC, Mobile backhaul, cascading, ring network and other compact access scenarios.
Multi-Play Service Access: Supports mainstream services, e.g. HSI, VoIP, IPTV and CATV services, and meets the all-service access requirements.
AC and DC power input: Supports DC input redundancy and AC power supply
Unified Platform and Saving TCO
Multiple-PON: Supports GPON/EPON/P2P, and XGPON1/10G EPON later.
Reducing Initial Investments: Reasonable price and compatible C300 line cards could greatly save the equipment costs.
Future-Proof Product and Supporting Network Convergence
Smooth Migration: Uses the ZXA10 C300 hardware and software architecture, and continues to upgrade based on the technology development and service requirements.
Highly-Precise Time/Clock Synchronization Features: Supports synchronous Ethernet and 1588v2 to meet the networking and service requirements for mobile backhaul.
Carrier-Class Reliability and Full Redundancy System
Uplink Protection: Supports STP/RSTP/MSTP/UAPS/LACP link protection and redundancy.
Redundancy: Supports the key parts work in active/standby mode or in redundant mode. All the cards are hot swappable.
Environment-Friendly Product and Green Communication
Low power Consumption Design: Complies with Europe COC, RoHS and other energy saving and environment protection requirements. Complies many certifications, e.g. CE, FCC, CB, MEF
Green and Energy Saving: Utilizing environmentally friendly materials and supports power management, Automatic Laser Shutdown (ALS)) for optical interface and boards dormant mode, 35% less power consumption than the large OLT
