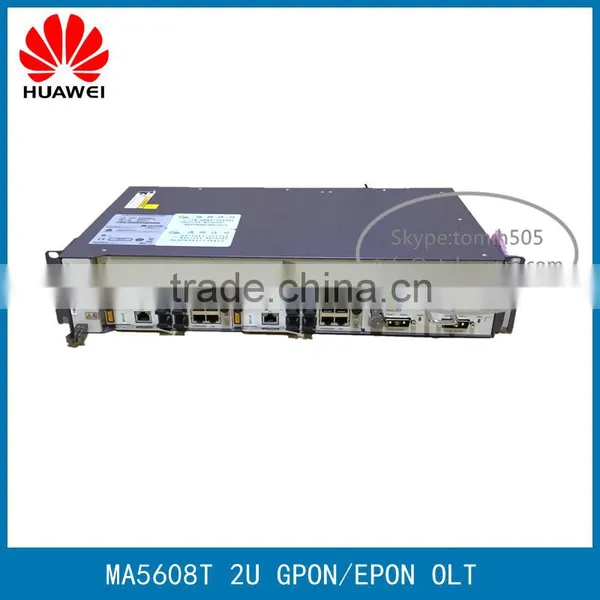

Huawei MA5608T GPON or EPON optical line terminal equipment
Huawei MA5608T compatible 2U height GPON OLT system
Chassis supports 2 Service Slots
One power slot, can supply with 2 ports DC redundancy, or AC and DC redundancy (battery)
Two slot redundancy for main control board
Support GPON, EPON and P2P (Optical Access);xDSL and POTS(Copper Access)
Support GPON & EPON simultaneously

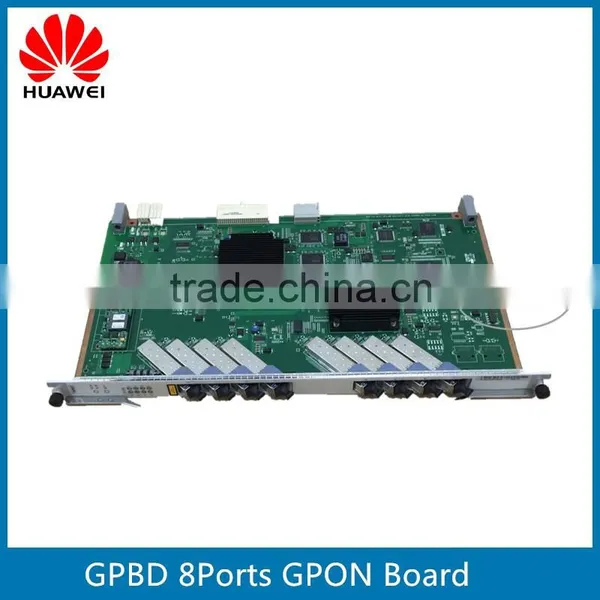

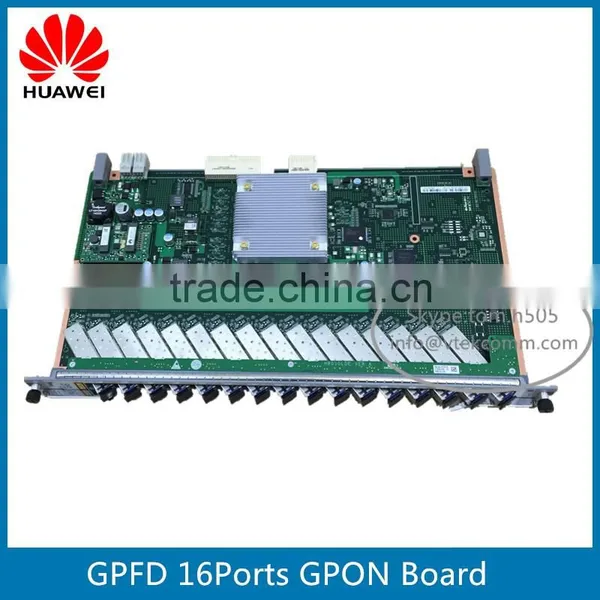

Support 8-GPON port interface card GPBD, 16-GPON port interface card GPFD
Support GPON split ration 1:128
Support GE uplink (embedded in MCUD main control board) or 10GE uplink (embedded in MCUD1 main control board)
MA5608T Software Version available at V800R012 or V800R013
Huawei MA5608T is a aggregation Optical Line Terminal (OLT), it supports up to 2 service slots and can support maximum 4096 subscribers (GPON). A typical MA5608T configuration includes one MA5608T Chassis, one Main Control Board MCUD (GE uplink), one AC Power Board MPWD, one GPON 8 Port GPON board GPBD (with C+ SFP Module). Besides that one typical configuration, vtke also offers more bundle line, to meet your different requirement on various scenario. In addition, vtek provides self configuration page, where you can configure your own MA5608T by selecting boards and items yourself. With our professional technical support to rich your experience.
MA5608T configuration:

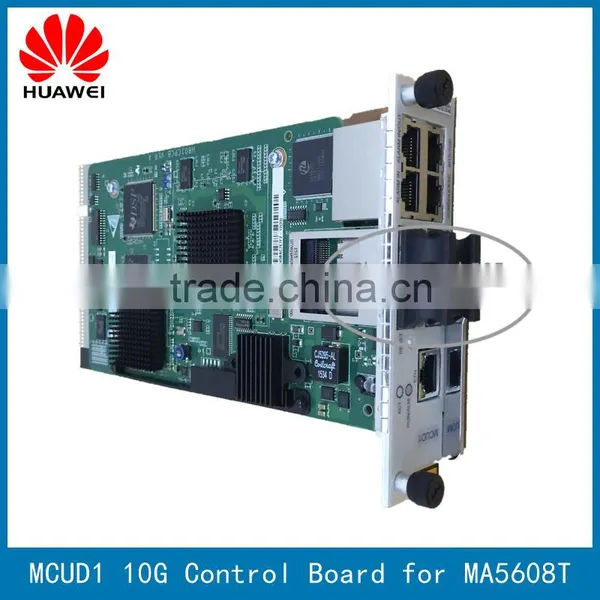

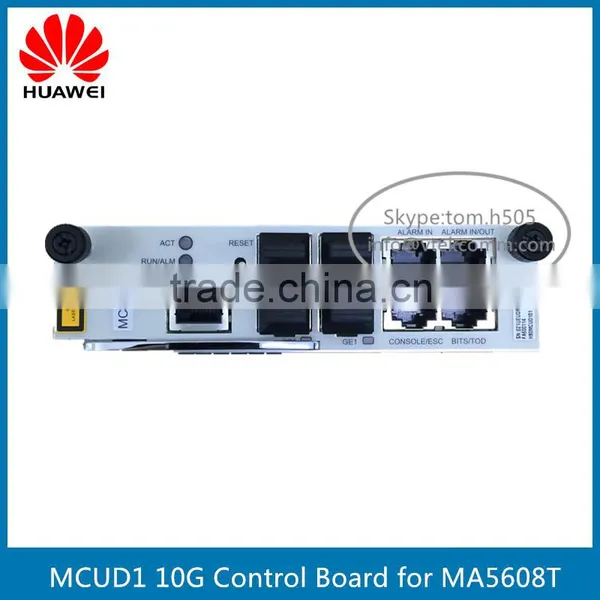

2 MCUD of control and uplink integreated board(MCUD1 10G Uplink for Option)
1 MPWC Dual DC power board (AC to DC Power Converter have to buy separate;MPWD AC & DC Power Board For Option)
1 GPON or EPON 8 ports board with 8 Modules; (GPFD EPFD 16Ports for Option)
Acessories:
Power cable, earth cable, patchcords, banding ribbon, screws etc
The MA5608T are 48V DC input, the Power Rating is 48V - 60V; EMERSON EPS30-4815AF are Recommend, Click Below for detail informaiton:
EMERSON 220V To 48V 30A Power converter EPS30-4815AF for C300 C320 C220 MA5600T MA560T MA5683T MA5608T OLT Power supply
Below board for your choice:
Board Type |
Silk Screen |
Full Name |
Control board |
MCUD |
Mini Control Unit Board |
MCUD1 |
Mini Control Unit Board |
|
Service board |
ADPM |
64-port ADSL2+ over POTS Service Board |
ADPE |
64-port ADSL2+ over POTS Service Board |
|
H805ADPD |
64-port ADSL2+ over POTS Service Board |
|
VDPM |
64-port VDSL2 over POTS Service Board |
|
VDQM |
64-port VDSL2 over ISDN Service Board |
|
VDPD |
64-port VDSL2 over POTS Service Board |
|
VDPE |
64-port VDSL2 over POTS Service Board |
|
H805GPBD |
8-port GPON OLT Interface Board |
|
GPFD |
16-port GPON OLT Interface Board |
|
GPBH |
8-port GPON OLT Interface Board |
|
XGBC |
4-port 10G GPON OLT Interface Board |
|
H802EDTB |
16 port SHDSL and 16 port E1 Service Board |
|
DSRD |
32-port ISDN Digital Subscriber Board |
|
DSRE |
32-port ISDN Digital Subscriber Board |
|
ASPB |
64-port VOIP Subscriber Board |
|
CVME |
48-port VDSL2&POTS Combo Board |
|
CAME |
48-port ADSL2+&POTS Combo Board |
|
SPUB |
MPLS service Process Unit Board |
|
ETHB |
Ethernet Service Access Board |
|
OPGD |
48-port GE/FE Optical Interface Board |
|
OPGE |
48-port GE/FE Optical Interface Board |
|
TOPA |
TDM Traffic over PSN Board |
|
SHGM |
32-port SHDSL.bis Service Board |
|
SHLM |
16-port SHDSL.bis Service Board |
|
Power board |
MPWC |
Double DC power board |
MPWD |
AC power board |
