CL-12D 0.35mm-0.55mm Busbar Drawing Machine

Name: CL-12D 0.35mm-0.55mm Busbar Drawing Machine
Brand: Xiangle
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Product Details

Condition:	New	Inlet Diameter:	1.2mm-1.0mm	Outlet Diameter:	0.35mm-0.55mm
Place of Origin:	Jiangsu, China	Brand Name:	Xiangle	Model Number:	CL-12D
Voltage:	380V	Power(W):	7.5KW	Dimension(LWH):	150012001800
Weight:	1200Kg	Certification:	ISO9001	Warranty:	1 Year
After-sales Service Provided:	Engineers available to service machinery overseas

CL-12D 0.35mm-0.55mm Busbar Drawing Machine

Product Description

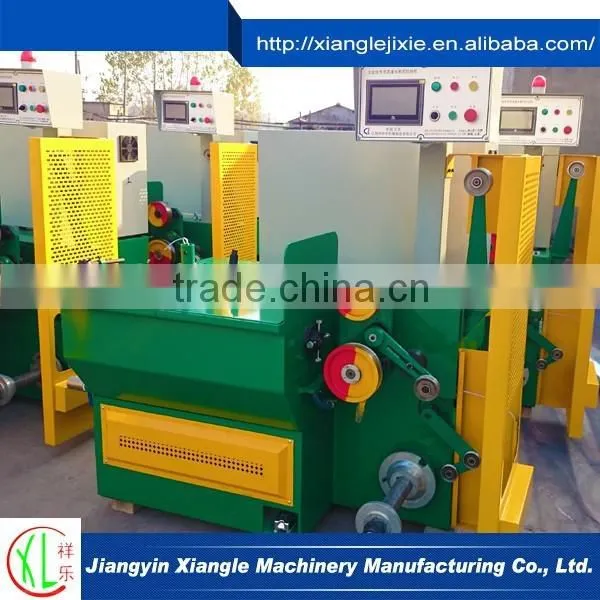

Equipment Pictures

Technical Parameters

Inlet	1.2mm-1.0mm
Outlet	0.35mm-0.55mm
Max Modules	12
Mechanical Reduction	15.60%
Drawing Method	Horizontal Two-step Pulleys Type
Max Line Speed	500m/min
Control System	PLC Dual Frequency Conversion
Drawing Capstan	Mold Steel Vacuum Annealing Treatment
Main Motor's Power	7.5KW
Take-up Machine's Power	1.5KW
Driving Method	Synchronizing Sheel,Synchronizing Belt, Flat Belt
Drawing Lubrication Method	Modules, Step Pulley By Full Immersion
Braking Method	Electronmagnetic Brake

Product Advantages

1. Low cost;

2. Energy efficiency;

3. Stable and reliable performance;

4. Cleaner Production.

The domestic market share of stainless steel drawing machines takes more than 90% in stainless steel

equipment industry area. For the overseas market,our equipment are exported to Japan, Russia, Brazil,

Vietnamese, India and other countries.
