Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Drawing Machinery > CL-17D Water-tank Type of Copperply Wire Drawing Equipment

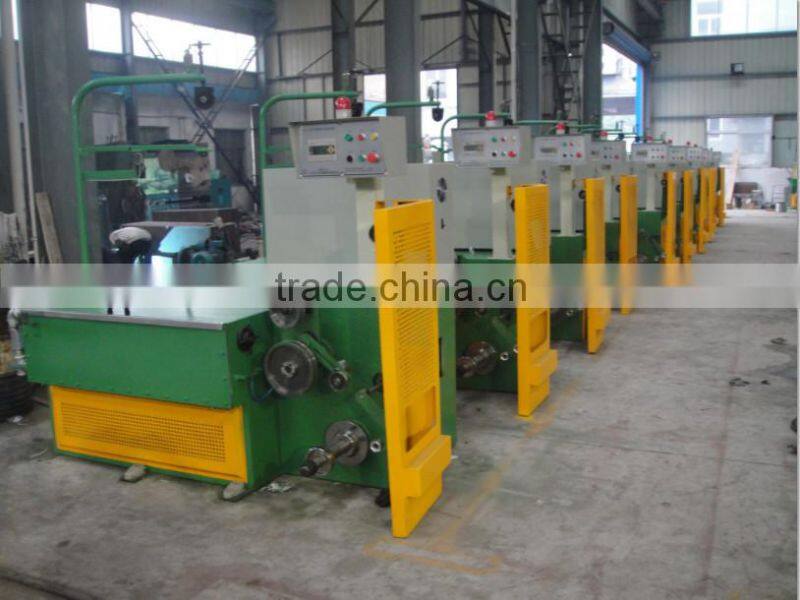

CL-17D Water-tank Type of Copperply Wire Drawing Equipment
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
0.6mm-0.4mm
Outlet Diameter:
0.25mm-0.1mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-12D China Supplier High Quality Fine Wire Drawing MachineNegotiableMOQ: 1 Set -
CL-12D China Supplier High Quality Copper Drawing MachineNegotiableMOQ: 1 Set
-
CL-12D China Supplier High Quality Drawing Press MachineNegotiableMOQ: 1 Set
-
CL-12D Hot-Selling High Quality Used Wire Drawing MachineNegotiableMOQ: 1 Set
-
CL-12D Hot-Selling High Quality Steel Wire Drawing MachineNegotiableMOQ: 1 Set
Condition
New
Inlet Diameter
0.6mm-0.4mm
Outlet Diameter
0.25mm-0.1mm
Place of Origin
Jiangsu, China
Brand Name
Xiangle
Model Number
CL-17D
Voltage
380V
Power(W)
4KW
Dimension(L*W*H)
2000*1150*2000
Weight
1250Kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
Wet Wire Drawing Machine for :1) Stainless Steel Wire
2) Galvanized Wire
3) Coppered Steel Wire
4) Iron Wire
1, Technical Parameter
| Inlet: | 0.6mm-0.4mm |
| Outlet: | 0.25mm-0.1mm |
| Max Modules: | 17 |
| Mechanical Reduction: | 15.60% |
| Drawing Method: | Horizontal Four-step Pulleys Type |
| Max Line Speed: | 800m/min |
| Control System: | PLC Dual Frequency Conversion |
| Drawing Capstan: | Mold Steel Vacuum Annealing Treatment |
| Main Motor's Power: | 4KW |
| Take-up Machine's Power: | 1.5KW |
| Driving Method: | Synchronizing Sheel,Synchronizing Belt |
| Drawing Lubrication Method: | Modules, Step Pulley By Full Immersion |
| Braking Method: | Electronmagnetic Brake |

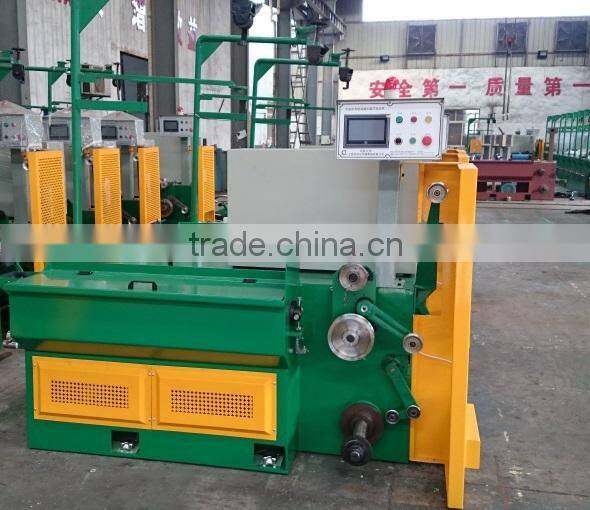

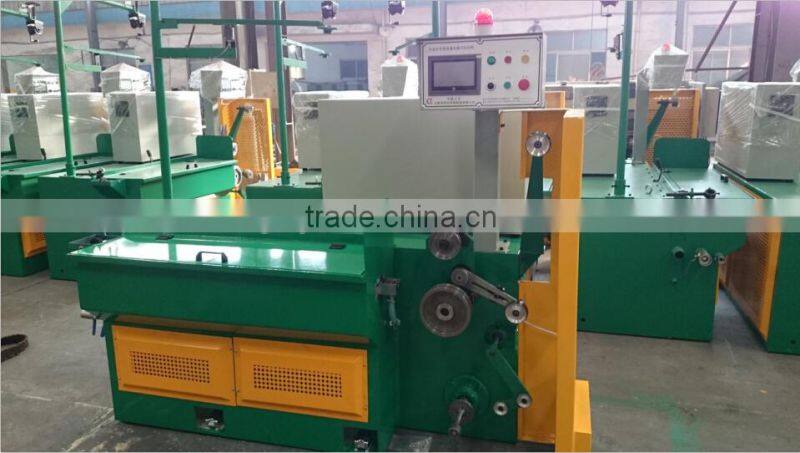

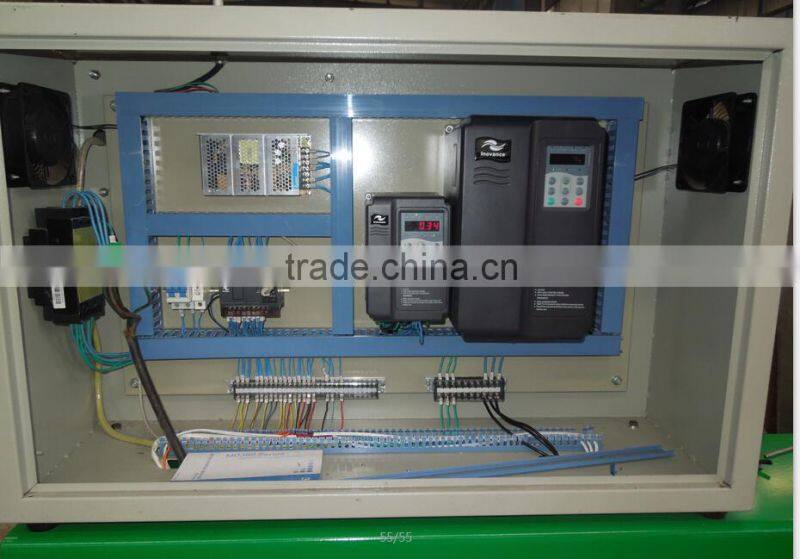

2, Photos Of Machines
3, Photos of Company

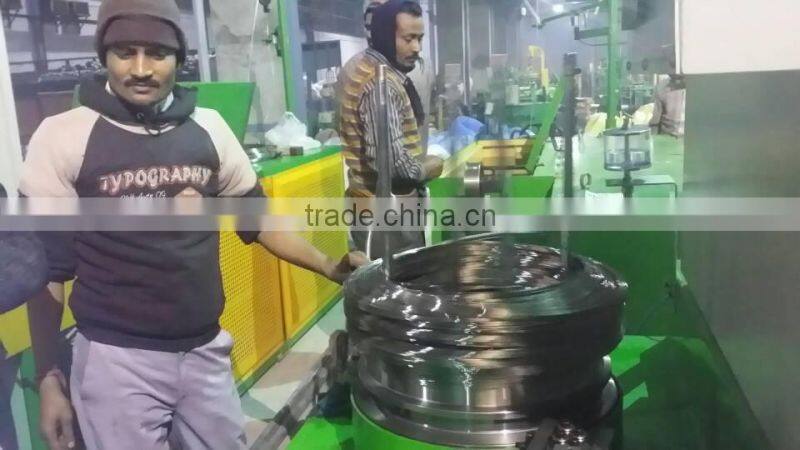

4, Photos Of Customers
Send Inquiry to This Supplier
Mrs. Adalia Yuan
Overseas Sales Manag
Jiangyin Xiangle Machinery Manufacturing Co. Ltd.
Jiangsu, China
* Email
Want the best price?
Post an RFQ now!
Business Type
Manufacturer, Trading Company
Year Established
2006
Factory Size
5,000-10,000 square meters
Total Employees
51 - 100 People
