CL-15D 2015 Hot Selling Tube Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Inlet Diameter:
2.2mm-1.6mm
Outlet Diameter:
1.0mm-0.5mm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
CL-15D Wet Iron Wire Drawing MachineNegotiableMOQ: 1 Set -
CL-15D Alloy Wet Wire Drawing MachineNegotiableMOQ: 1 Set
-
CL-15D Wet Stainless Steel Wire Drawbench MachineNegotiableMOQ: 1 Set
-
CL-15D Wet Stainless Steel Wire Draw Bench MachineNegotiableMOQ: 1 Set
-
CL-15D Wet Stainless Steel Wire Draw Bench EquipmentNegotiableMOQ: 1 Set
Condition
New
Inlet Diameter
2.2mm-1.6mm
Outlet Diameter
1.0mm-0.5mm
Place of Origin
Jiangsu, China
Brand Name
Xiangle
Model Number
CL-15D
Voltage
380V
Power(W)
7.5KW
Dimension(L*W*H)
1500*1200*1800
Weight
1250Kg
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
1, Technical Parameter
| Inlet: | 2.2mm-1.6mm |
| Outlet: | 1.0mm-0.5mm |
| Max Modules: | 15 |
| Mechanical Reduction: | 15.60% |
| Drawing Method: | Horizontal Four-step Pulleys Type |
| Max Line Speed: | 200m/min |
| Control System: | PLC Dual Frequency Conversion |
| Drawing Capstan: | Mold Steel Vacuum Annealing Treatment |
| Main Motor's Power: | 11KW |
| Take-up Machine's Power: | 1.5KW |
| Driving Method: | Synchronizing Sheel,Synchronizing Belt, Flat Belt |
| Drawing Lubrication Method: | Modules, Step Pulley By Full Immersion |
| Braking Method: | Electronmagnetic Brake |

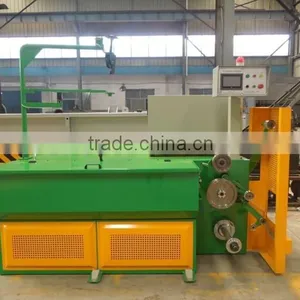

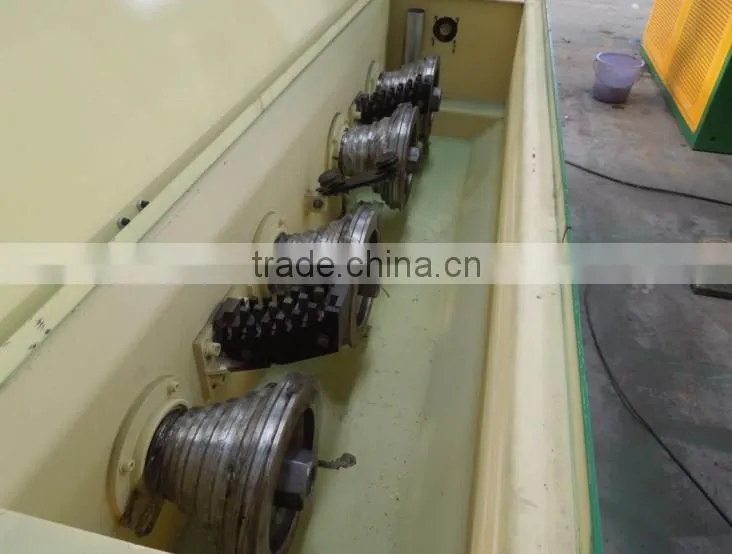

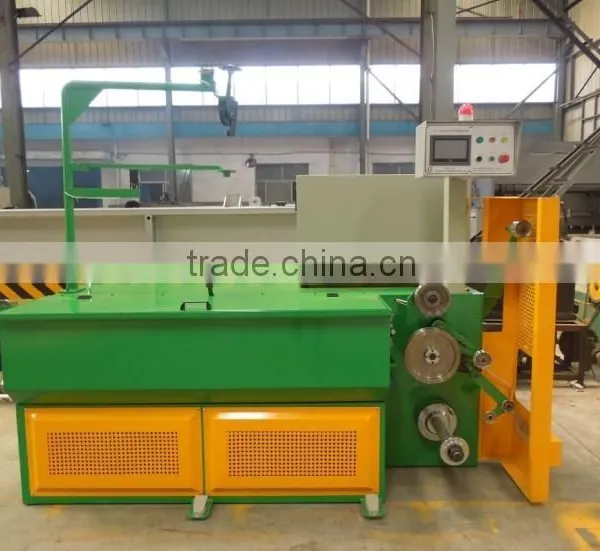

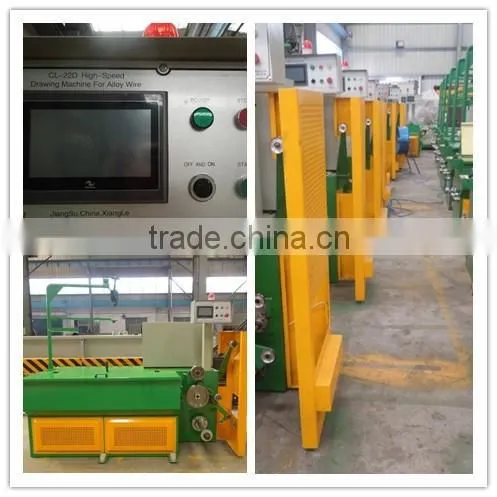

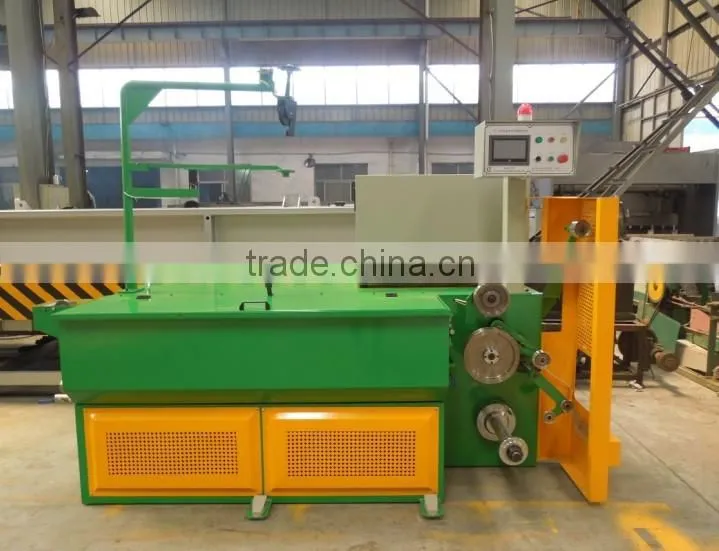

2, Photos Of Machines
3, Photos of Company
4, Photos Of Customers
