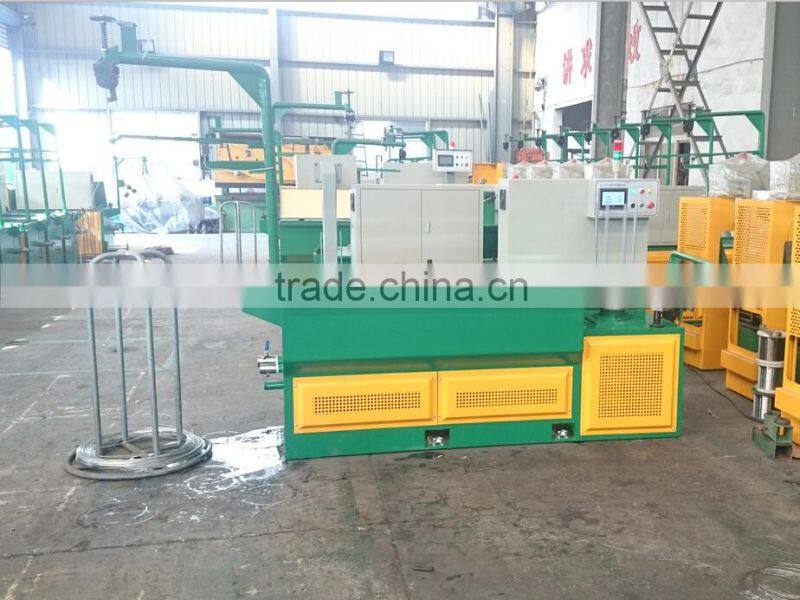

CL-300 Spring Wire Drawing Machine
Negotiable
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- Shanghai
You May Like
Product Details
Condition: | New | Inlet Diameter: | 1.5mm-1.8mm | Outlet Diameter: | 0.5mm-0.6mm |
Place of Origin: | Jiangsu, China | Brand Name: | Xiangle | Model Number: | CL-300 |
Voltage: | 380V | Power(W): | 7.5KW | Dimension(L*W*H): | 4300*1300*1800 |
Weight: | 2.9T | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Drawing Machine for :1) Stainless Steel Spring Wire
2) High-carbon Steel Spring Wire
3) Nickel Plating Spring Wire
1, Technical Parameter
Inlet: | 1.5mm-1.8mm |
Outlet: | 0.5mm-0.6mm |
Max Modules: | 17 |
Mechanical Reduction: | 15.00% |
Drawing Method: | Horizontal Four-step Pulleys Type |
Max Line Speed: | 120m/min |
Control System: | PLC Dual Frequency Conversion |
Drawing Capstan: | Mold Steel Vacuum Annealing Treatment |
Take-up Block Diameter: | 300mm |
Outlet Module Base: | The linear can be adjusted in up,down, left and right direction |
Driving Method: | Synchronizing Wheel,Synchronizing Belt, Flat Belt |
Drawing Lubrication Method: | Modules, Step Pulley By Full Immersion |

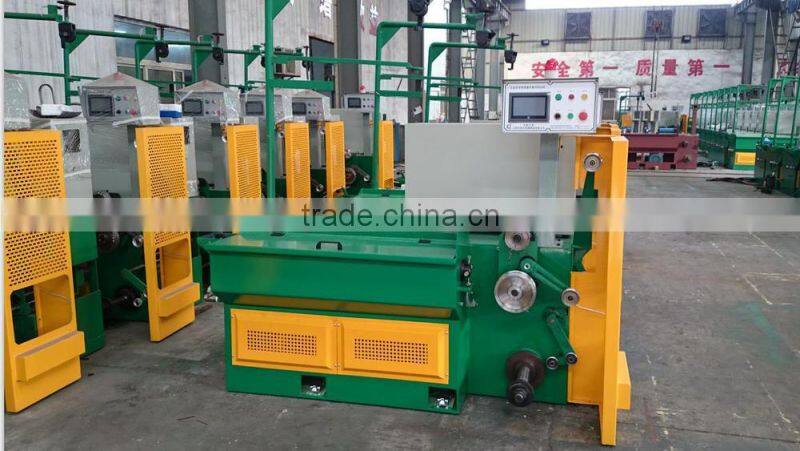

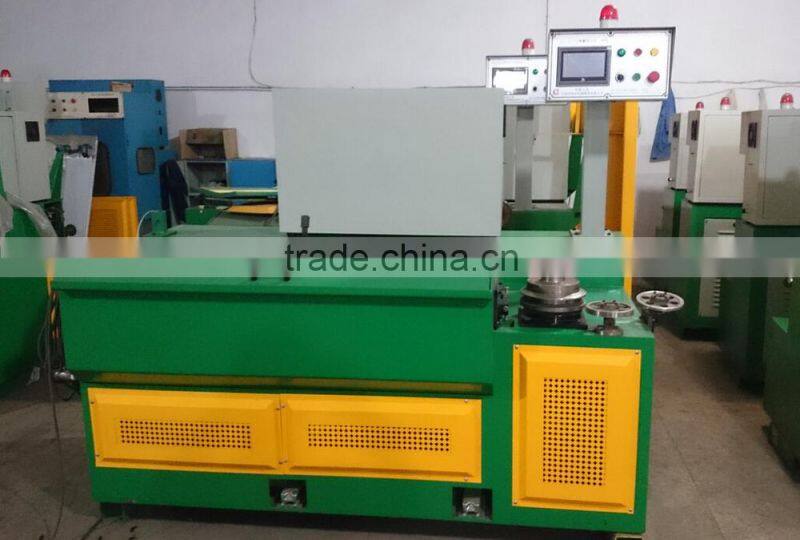

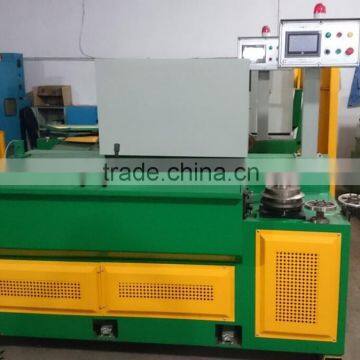

2, Photod of Machines
3, Photos of Company
4, Photos Of Customers
Contact Us
- Jiangyin Xiangle Machinery Manufacturing Co. Ltd.
- Contact nameAdalia Yuan
- Phone86-510-86966228
- AddressNo. 55, Yongsheng Rd., Changshou, Zhouzhuang Town
