High Speed Slitter Scoring Machine
US$ 1,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
MINGTAI
Model Number:
MT
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Speed Tape Slitter Rewinding MachineUS$ 1,000 - 10,000MOQ: 1 Set -
High Speed Slitter Rewinder for Paper Machine Made in ChinaUS$ 1,000 - 10,000MOQ: 1 Set
-
Hot Sale Fabric Slitter MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
High Speed Fabric Slitter Rewinder MachineUS$ 1,000 - 10,000MOQ: 1 Set
-
High Speed Paper Roll Slitter MachineUS$ 2,000 - 20,000MOQ: 1 Set
Place of Origin
Zhejiang, China
Brand Name
MINGTAI
Model Number
MT
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.printed pe,pp,pvc,pof,pet,bopp2.one year warranty
3.multifunctional
4.high speed

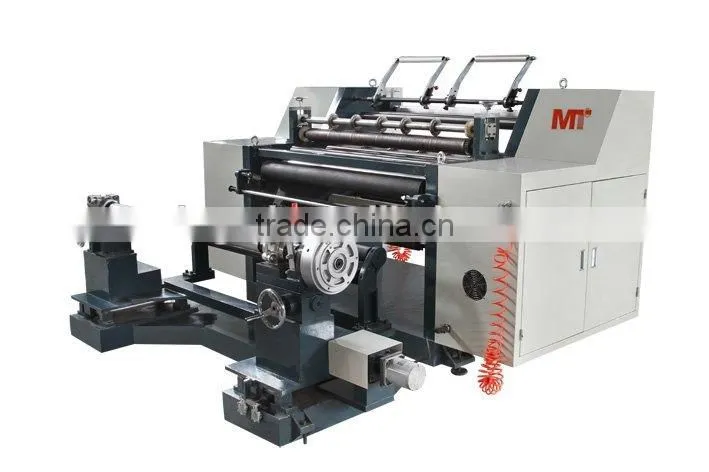

high speed slitter scoring machine
Main Technical Parameter:
- Slitting Material:Film,Paper Roll etc
- Slitting Width:25-1300mm
- Machine Speed: 180m/min
- Slitting Speed: 160m/min
- Unwinding Diameter: 600mm Tension 50N.m 3” Air shaft
- Rewinding Diameter:2x400mm Tension 50N.m 3” Air shaft
- Main Motor:3KW frequency conversion motor
- Cutting System: Adopt flat blade,slitting accuracy:±0.1mm,minimum slitting width:25mm
- Transmission: Belt
- Guide Roller: 80 Hard Aluminum Alloy
- Machine Construction: Alloy Iron
- Web guide scope:120mm Accuracy:±0.3mm
Configuration:
- Main Control Part:It has the function of meter counting or length counting,automatic stopping, Speed Adjustment.
Unwinding Tension: Adopt Magnetic Powder control tension 50N.M
Rewinding Tension: Adopt Magnetic Powder control tension 50N.M
Main Motor: Adopt Three Phase AC 3KW Frequency Conversion Motor
2.Running and Locking:Pneumatic
3.Lower Voltage Apparatus:Adopt CHNT
4. Pneumatic Component:Adopt Domesitc Mingyou or Jingwei
5.Web Guide: Adopt photoelectric eye
6.Slitting Blade: Scaleplate Orientation,it’s easy to install,and accurate.
