4114753 Final Drive Seal Group for Excavator Final Drive Seal Group Zx210 Zx200

4114753 Final Drive Seal Group for Excavator Final Drive Seal Group Zx210 Zx200 thumbnail-1
4114753 Final Drive Seal Group for Excavator Final Drive Seal Group Zx210 Zx200 photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
Mechanical Seal
Material:
Other, Rubber, Rubber+SPCC
Contact Supplier Request Quote Chat Now
Guangzhou Borande Machinery Parts Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
HuangPu for Excavator final drive seal group
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Style Mechanical Seal
Material Other, Rubber, Rubber+SPCC
Place of Origin Guangdong, China
Brand Name Borande
Model Number seal group

4114753  zx200 seal group  Excavator final drive seal group



1.Description:

*Oil seal group Excavator final drive seal group

2.Floating seal Application Fields

*Construction equipment

*Excavator

*Bulldozer

*Sortingmachine

*Skidder

*Dump truck

*Wheel loader

*Hydraulic equipment

*Hydraulic cutter*Tunnel excavator



3.Material

*Rubber+SPCC



4.Details & Advantage

*Design a reliable.

*Effective packer outside dust, water, dirt and protected within the lubricating oil and grease.

*Low cost, high efficiency.

*Longer service life.



5.Installation:

a).Completely clear cavity and seal, remove oil, dirt, grease, metal debris such as residue.

b).Only can remove the seal from the packaging before installation, so that we can prevent damage of grinding surface.

c).Confirm whether the rubber ring close to the metal rings inside of the edge.

d).Installing half seals into the chamber (rubber ring and metal ring), and then check the position of seals, rubber rings must be parallel to the bottom of the cavity.

e).After installed the half seal, use Lint-free cloth to wipe the two metal surfaces, applied in a thin layer on the sealing surface of the film (the internal use of oil), pay attention only to lubricate the seal surface.

f).Put on the other half ,then check whether it is up to specification.



Remark:Can not able to half is new and another half is old seal , even the old seal still looks good condition.





6.Floating seal :

 4114753 final drive seal group for Excavator final drive seal group zx210 zx200

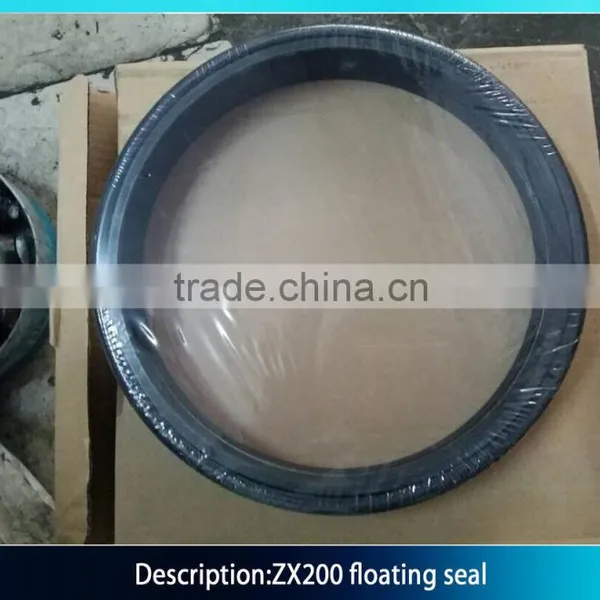

7.Floating seal Pictures:

 4114753 final drive seal group for Excavator final drive seal group zx210 zx200

4114753 final drive seal group for Excavator final drive seal group zx210 zx2004114753 final drive seal group for Excavator final drive seal group zx210 zx200



8.Relative Product Photos

  4114753 final drive seal group for Excavator final drive seal group zx210 zx200

4114753 final drive seal group for Excavator final drive seal group zx210 zx200

4114753 final drive seal group for Excavator final drive seal group zx210 zx200

4114753 final drive seal group for Excavator final drive seal group zx210 zx200

4114753 final drive seal group for Excavator final drive seal group zx210 zx2004114753 final drive seal group for Excavator final drive seal group zx210 zx200



 9.Our factory

4114753 final drive seal group for Excavator final drive seal group zx210 zx2004114753 final drive seal group for Excavator final drive seal group zx210 zx200



10.Floating Seal OEM number and size:



9W 6686 1P7249 110-30-00085 20Y-30-00041



130-27-00010 170-27-00010 110-30-00045 1M 8746



141-27-00010 5K 5288 HIT 4110358 HIT 41110360



ES 100-250 5K 1078 HIT 4128201 20Y-30-00100



14X-27-00010 175-27-00121 140-30-00040 1M 8748



6P 3595 4K 6049 HIT 4110359 205-30-00052



5M 1177 180-27-00021 2M 2858 205-30-00050



150-27-00025 7M 0481 20Y-30-00070 20Y-30-00101



5M 7294 5M 1176 141-30-00610 KO 4825



170-27-00020 8P 1848 1M 8747 UK 5500



4D 4510 207--27-00010 150-30-00702 130-27-00020



4D 8960 HIT 4110368 175-30-00702 150-27-00015



5M 8647 HIT 4110369 20Y-30-00040 207-30-00101



6S3285  3S0303



45*58*61.6 115*137*141.8 190*216*23
43*58*61.6 124*141*146 205*227*15
48*62*68 127*141*144.1 204*228*13
54.2*70.2*31.2 142*120*18 204*230*19
66.2*82.2*31.2 120*143*149 209*234*242.6
76.2*92.2*31.2 120*143*16.5 220*246*250.3
82*98.2*31.2 125*144.1*148.5 223*248*257
56*70*76 127*146*149.9 223.5*251.4*256.6
74*58*12.5 130*152*158 223.5*251.4*256.6
58*75*79 130*151*155.6 225*252*258
64*78*84.6 153*138*14.5 259.6*231.6*19
66*85*90 142.7*156.9*159.7 260*228*28
63.5*82.5*86.5 153.9*168.1*171 268*235*21
69*84*90.6 147*170.5*175.6 239*268*274.5
73.7*86.8*91.7 146.3*171.7*176.8 250*276*284.6
69.2*90*95.5 150*172*179 288*260*20
73*92*96.2 173*150*18 260*288*294.5
75*94*101.4 180*160*10 291*262*19
80*99*105 184*166*10 264.9*292.8*297.8
80*100*104.1 210*182*11 265*292.8*297.8
90*105*107.3 230*200*13 303*275*19
90*105*107.8 245*216*10 310*283*20
94*107*112 260*225*13 298*328*333
92*109*113.8 260*258*13 328*295*20
90.5*109.5*113.4 283*254*11 318.5*346.4*351.6
95*114*120 285*248*13
98.5*119*123.5 290*248*13
104*117*122 159.5*180*186 339*368*374.8
102*118*13.5 165*184*14.5 355*382*19
100.1*119.1*123 163.3*191.2*196.8 366.5*394.4*399.5
101*120.2*125 177*200*19.5 380*405*412
103*122*127.2 188*204*14 415*387*19
104.1*122*125.8 182.3*210.3*215.4 429.2*457.2*462.3
109.5*127*133 182.4*210.3*215.4 505.4*533.4*538.5
110*128*133 192*215*220.8 508*548*554
109*132*136.5 190*215*17 667*700*705.5
