SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System

SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System thumbnail-1
SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System thumbnail-2
SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System thumbnail-3
SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System photo-1
SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System photo-2
SMTSEC SVC-HD652M 1/2.7" HD Color CMOS USB Interface Network Conference System photo-3
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Other, video conference camera
Simultaneous Interpretation:
No
Contact Supplier Request Quote Chat Now
Shenzhen Smart Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Audio Conference System, Network Conference System, Video Conference System
Function Other, video conference camera
Simultaneous Interpretation No
Place of Origin Guangdong, China
Brand Name SMTSEC
Model Number SVC-HD652M

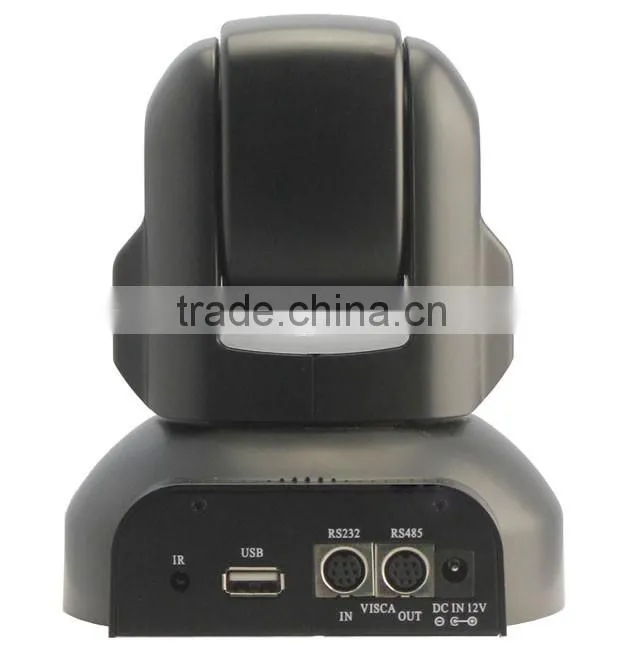

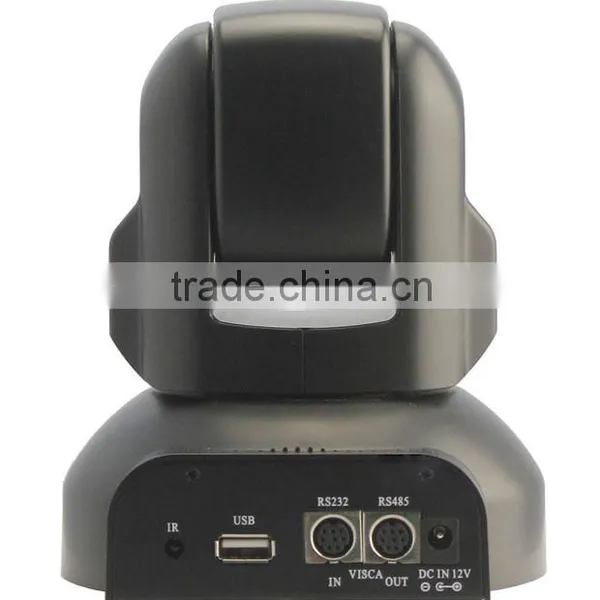

SMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface  Network Conference System

Product Description
Model SVC-HD652M
Image Sensor 1/2.7” HD color CMOS
SenSor Minimum Scene lllumination 0.5Lux at F2.0
White Balance AUTO
Lens Lens 4 mm
Iris AUTO
Hov 72.5 degree
Video Output USB Interface
Video format 1080p@30, 720p@30, MJPEG Compression
Control Decoder EIA/RS-485, USB
Communication EIA/RS-232(Bidirectional)
PTZ Control Protocol VISCA, PELCO-D
Baud Rate 9600/38400bps
Patrol tours 1
Preset 64
Save status after Power off Support
Speed Matching Function Support
Image Auto Flip Support
Pan Speed 0-280 degrees/s
Tilt Speed 0-100 degrees/s
Pan Rotation Angle 360 degrees
Tilt Rotation Angle + 90 degrees, - 45 degree
Auto Pan Scan Support
Boundary Scan 0-359 degree(Programmable)
Remoter Control IR Wireless remote control P/T/Z
Power DC12V ±10% 1.2A
Operation Temperature 0℃~50℃
Environmental humidity 0-95%RH(non-condensaion)
Length X width X high 124x120x145mm/220x175x220mm(NET/PACKAGE)
Weight 640g/1100g(NET/PACKAGE)

SMTSEC Video conference camera FAQ
Symptom Cause Remedy
The power of the camera is not turned on. The supplied AC power adaptor is not connected to the DC IN 12V jack firmly, or the AC power cord is not inserted firmly into the AC power adaptor or the AC outlet. Insert the power cord firmly as far as it will go.
Not Turn On the Power switch as “ON”. Turn On the Power switch as “ON”.
Insufficient frame rate detected Cannot recognize USB 3.0 connection, but the USB 2.0 speed. Make sure you connected USB 3.0 Cable, USB 3.0 connect, and firmly connect to USB 3.0 interface.
Pan,tilt or zoom cannot be operated. Any menu is displayed on the monitor screen. Press the “Dome OSD” OR “Lens OSD” on the Camera remote control Unit to turn off the menu from the monitor screen.
The panning or tilting range is limited Pan/Tilt movement range is ± 45 degree.
The Remote Commander does not work. The Camera Select button you pressed on the Remote Commander does not match the number set with the IR SELECT switch on the camera. Press the Camera Select button corresponding to the IR SELECT SWITCH setting on the Camera.
Used out of battery Change new battery (AA x 2)
The VISCA control is not available with a computer connected to the camera. The computer is not correctly connected to the camera. Make sure the connection between the computer and camera is made correctly.
Check that the VISCA control setting (RS-232C or RS-422) and the baud rate setting (9600 bps or 38,400 bps) are properly made with the BOTTOM switch on the bottom of camera and the COM Port which configured in your computer.
The camera cannot be operated at all. Pull out the plug of the power cord from the AC outlet, then reinsert it into the AC outlet after a while.

 SMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference SystemSMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference SystemSMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference System

Packaging & Shipping



China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)



•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.



Our Services



•All products have been checked and packaged in good condition before dispatch.

•All products have 1 year warranty.

SMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference SystemSMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference SystemSMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference SystemSMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference SystemSMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference System





 SMTSEC SVC-HD652M 1/2.7" HD color CMOS USB Interface Network Conference System
