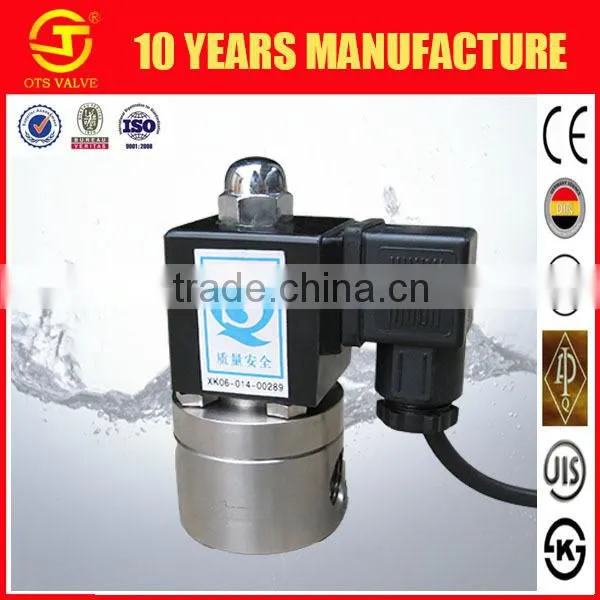

air/gas/water/ oil direct action solenoid valve
Solenoid Valve Application:
This direct act solenoid valve is widely used in various fields of metallurgical, petrochemical, pharmaceutical, food, medical, textile and so on. A low pressure suitable for small diameter piping systems.
Solenoid valve characteristics:
1. small in shape, pretty in apprearance.
2. when coil is engerged, the valve will be started. Valve was closed by the spring reture.
Main technical data:
Nominal diameter: DN0.5~DN20mm
Body material: brass, aluminum, stainless steel
Suitable medium: water, oil, air, steam, gas, corrosive liquid, etc.
Temperature: -200~+300℃
Medium viscocity: not more than 50C St.
Protection function: water-proof, explosion-proof, anticorrosion.
Electric connection model: wire seat type, lead type, DIN type
Control model: normally ON; normally OFF.
Power voltage: DC12~127V; AC36~380V
Connection model: inside screw tread, (outter screw tread and special fitting can be customerized)
Working principle:
Normally OFF:
When coil is switched on, the solenoid valve open.
when coil is switched off, the solenoid valve closed.
Normally ON:
When coil is switched on, the solenoid valve closed.
when the coil is switched off, the solenoid valve open.
Notes:
Outlet pressure is greater than the pressure on the inlet side, the media will reverse conduction the pressure in the end of outlet is higher than the pressure in the inlet, the medium can be transport verserce. You can install a check valve or solenoid valve which has check function.
Direct act solenoid valve size and demensions:
| DN(mm) | 0.5 | 0.8 | 1 | 2 | 3 | 4 | 5 | 6 | 8 |
| PN(Mpa) | 60 | 35 | 25 | 6.4 | 2.5 | 1.6 | 1 | 0.7 | 0.4 |
| nippler | G1/8, G1/4 or special screw treads | G1/4 or special screw treads | |||||||
| body material | brass, stainless steel 304 or 316, etc. | ||||||||
| coil power | 20w or 40w | ||||||||
When you are going to make an inquiry to us, pls pay attention to mention the following points:
1. Nominal diameter
2. Medium
3. Pressure
4. Power voltage
5. Acting type
6. Special functions if any
We will quote you according to the above information.
