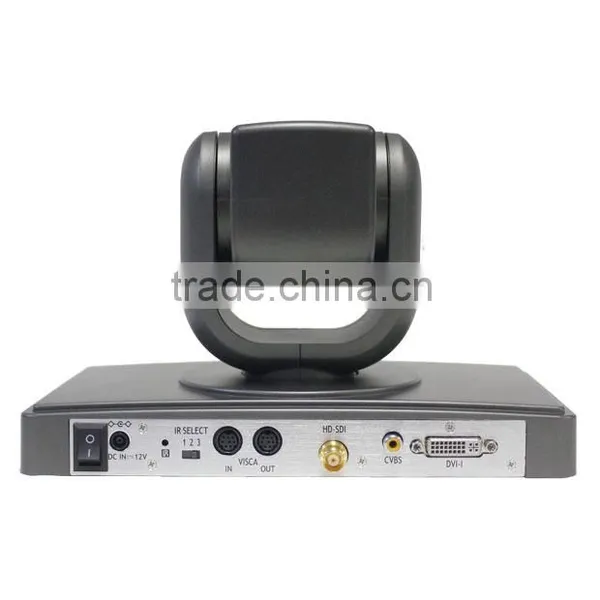

SMTSEC SVC-HD8830-DSYC-SN7500 30x Optical Zoom Lens 2.41 Megapixel Full HD Web Video Conference System Camera
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Audio Conference System, Network Conference System, Video Conference System
Function:
Other, video conference camera
Simultaneous Interpretation:
No
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMTSEC SVC-HD8820-K5 1/2.8" Type Exmor CMOS 20 X Optical Zoom 1080p Video Conference CameraNegotiableMOQ: 1 -
SMTSEC SVC-HD8820-DSY-K5 1/2.8" Type Exmor CMOS 20 X Optical Zoom HD-SDI DVI CVBS Video Conference Camera Wall MountNegotiableMOQ: 1
-
SMTSEC SVC-HD930-SN7500 1/2.8" Type Exmor CMOS 2.41 Megapixel 1080P PTZ Video Conference System CameraNegotiableMOQ: 1
-
SMTSEC SVC-HD910-SE600 1/2.8" Type CMOS 3.27 Megapixel Hdmi Pan Tilt Zoom Video Conferece System CameraNegotiableMOQ: 1
-
SMTSEC SVC-HD8820-DSYC-CV7310 1/2.8" Type Exmor CMOS 1080p Full HD 20 X Optical Zoom Video Conferences Camera hd ZoomNegotiableMOQ: 1
Type
Audio Conference System, Network Conference System, Video Conference System
Function
Other, video conference camera
Simultaneous Interpretation
No
Place of Origin
Guangdong, China
Brand Name
SMTSEC
Model Number
SVC-HD8830-DSYC-SN7500
SMTSEC SVC-HD8830-DSYC-SN7500 30x optical zoom lens 2.41 Megapixel Full HD video conference system camera
Product Description
| 2.41 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with original SONY FCB-EV7500 block which is 30x optical zoom lens, enhancing your video conferencing, distance learning, training meeting or courtrooms with natural and smooth video images. The DSY Video output interface is suited for Web conferencing software or codec which provide high-quality video display. | ||
| Features: | ||
| DVI/HD-SDI Interface | ||
| Private Tooling design High Definition PTZ camera | ||
| Fast and smooth video handling | ||
| Power ON-OFF switch | ||
| Work & Standby LED indicator | ||
| Speed Match | ||
| Auto/Manual focus/brightness/WB | ||
| RS-232C/VISCA Protocol | ||
| Lens/Dome OSD | ||
| Boundary scanning | ||
| Standby & wakeup status | ||
| Swap video format key | ||
| Performance: | ||
| 1920x1080 pixels progressive @30fps | ||
| 30x optical, 12x digital zoom | ||
| F=4.3-129mm F1.6-4.7 | ||
| HOV 63.7 degree | ||
| 1/2.8” Type Exmor CMOS 2.14 Mega Pixel Sensor | ||
| Pan ±177.5 degree | ||
| Tilt +90 degree, -45degree | ||
| 64 preset positions | ||
| 4 cruise lines | ||
| DC 12V, 2A | ||
| Dimension: | ||
| L. 250mm x W 140mm x H154mm | ||
| N. Weight: 2.6kgs | ||
| G. Weight: 4.8kgs | ||
| Installation: | ||
| Desktop | ||
| Ceiling mount | ||
| Standard Tripod accessory | ||
| Model No. | SVC-HD8830-DSYC-SN7500 | |
| Image | Image Sensor | 1/2.8" Type Exmor CMOS |
| Sensor | Effective Pix | 2.14 Megapixel |
| Min. Illumination | 0.05Lux at F1.6 | |
| White balance | Auto/Manual | |
| Gain control | Auto/Manual | |
| Backlight compensation | On/Off | |
| Shutter speed | 1/1 - 1/10,000S | |
| S/N ratio | >50db | |
| Lens | Focus | f=4.3-129 mm F1.6-4.7 |
| Iris | Auto/Manual | |
| Lens | 30 Optical x 12 Digital Zoom | |
| Horizontal view angle | 63.7 | |
| Video output | DVI HD-SDI CVBS | |
| Signal system | 1080P@60,1080P@50 | |
| 1080P@30,1080P@25, | ||
| 1080i@60,1080i@50, | ||
| 720P@60,720P@50 ,720P@30, 720P@25 ,PAL ,NTSC | ||
| Control terminal | EIA/RS232C,EIA/RS485(Bidirectional) | |
| Control Protocol | VISCA,PELCO-D | |
| baud rate | 9600/38400bps | |
| patrol line | 4 cruise sequence | |
| preset position | 64 preset positions | |
| Speed Match | Pan/Tilt movement speed depends on camera module zoom in/out | |
| OSD Menu | Access to OSD Menu and adjust camera module parameters | |
| Image auto flp | Support Horizontal/Vertical image flip | |
| Pan movement speed | 1-200°/Second | |
| Tilt movement speed | 1-150°/Second | |
| Pan movement range | Pan: 0-355° | |
| Tilt movement range | Up: 90°, Down: 45° | |
| Pan scanning automatically | Support Pan scanning automatically | |
| Boundary scanning | 0-355°(programmable) | |
| Remote controller | IR Wireless Remote controller P/T/Z | |
| Power supply | DC12V,2A | |
| Work Temperature | 0-50℃ | |
| Humidity | 0-95%RH | |
| LxWxH | 250mm x 140mm x 154mm | |
| Weight | 1380g | |
| SMTSEC Video conference camera FAQ | ||
| Symptom | Cause | Remedy |
| The power of the camera is not turned on. | The supplied AC power adaptor is not connected to the DC IN 12V jack firmly, or the AC power cord is not inserted firmly into the AC power adaptor or the AC outlet. | Insert the power cord firmly as far as it will go. |
| Not Turn On the Power switch as “ON”. | Turn On the Power switch as “ON”. | |
| Insufficient frame rate detected | Cannot recognize USB 3.0 connection, but the USB 2.0 speed. | Make sure you connected USB 3.0 Cable, USB 3.0 connect, and firmly connect to USB 3.0 interface. |
| Pan,tilt or zoom cannot be operated. | Any menu is displayed on the monitor screen. | Press the “Dome OSD” OR “Lens OSD” on the Camera remote control Unit to turn off the menu from the monitor screen. |
| The panning or tilting range is limited | Pan/Tilt movement range is ± 45 degree. | |
| The Remote Commander does not work. | The Camera Select button you pressed on the Remote Commander does not match the number set with the IR SELECT switch on the camera. | Press the Camera Select button corresponding to the IR SELECT SWITCH setting on the Camera. |
| Used out of battery | Change new battery (AA x 2) | |
| The VISCA control is not available with a computer connected to the camera. | The computer is not correctly connected to the camera. | Make sure the connection between the computer and camera is made correctly. |
| Check that the VISCA control setting (RS-232C or RS-422) and the baud rate setting (9600 bps or 38,400 bps) are properly made with the BOTTOM switch on the bottom of camera and the COM Port which configured in your computer. | ||
| The camera cannot be operated at all. | Pull out the plug of the power cord from the AC outlet, then reinsert it into the AC outlet after a while. | |
Packaging & Shipping
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
Our Services
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
