3.27 Megapixel Sony 20X Optical 12X Digital Zoom HD PTZ Video Conference System Camera DVI-I video utput (SCV-HD820-SN6300)
Model No. |
HD820-DVI-SN6300 |
|
Image |
Image Sensor |
1/2.8" Type Exmor CMOS |
Effective Pix |
3.27 Megapixel |
|
Min. Illumination |
0.1Lux |
|
White balance |
Auto/Manual |
|
Gain control |
Auto/Manual |
|
Backlight compensation |
On/Off |
|
Shutter speed |
1/1 - 1/10,000S |
|
S/N ratio |
>50db |
|
Lens |
Focus |
f=4.7-90mm F1.6-3.5 |
Iris |
Auto/Manual |
|
Lens |
20 Optical x 12 digital zoom |
|
Horizontal view angle |
55.4 |
|

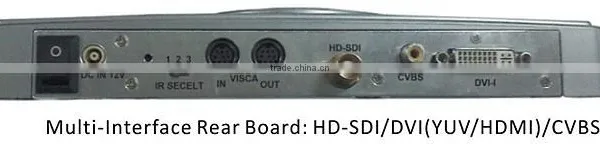

Video output |
HDMI, DVI |
|
Signal system |
1080P@30,1080P@25, |
|
Control terminal |
EIA/RS232C,EIA/RS485(Bidirectional) |
|
Control Protocol |
VISCA,PELCO-D |
|
baud rate |
9600/38400bps |
|
patrol line |
4 cruise sequence |
|
preset position |
64 preset positions |
|
Speed Match |
Pan/Tilt movement speed depends on camera module zoom in/out |
|
OSD Menu |
Access to OSD Menu and adjust camera module parameters |
|
Image auto flp |
Support Horizontal/Vertical image flip |
|
Pan movement speed |
1-200°/Second |
|
Tilt movement speed |
1-150°/Second |
|
Pan movement range |
Pan: 0-355° |
|
Tilt movement range |
Up: 45°, Down: 45° |
|
Pan scanning automatically |
Support Pan scanning automatically |
|
Boundary scanning |
0-355°(programmable) |
|
Remote controller |
IR Wireless Remote controller P/T/Z |
|
Power supply |
DC12V,2A |
|
Work Temperature |
0-50℃ |
|
Humidity |
0-95%RH |
|
LxWxH |
250mm x 140mm x 154mm |
|
Weight |
1380g |
|
Accessories kits in package:
1x HD 820-DSY Video Camera
1x DC 12V/2A Power Adaptor
1x User’s manual
1x Installation brackets & screws
1x IR Remote Controller
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
