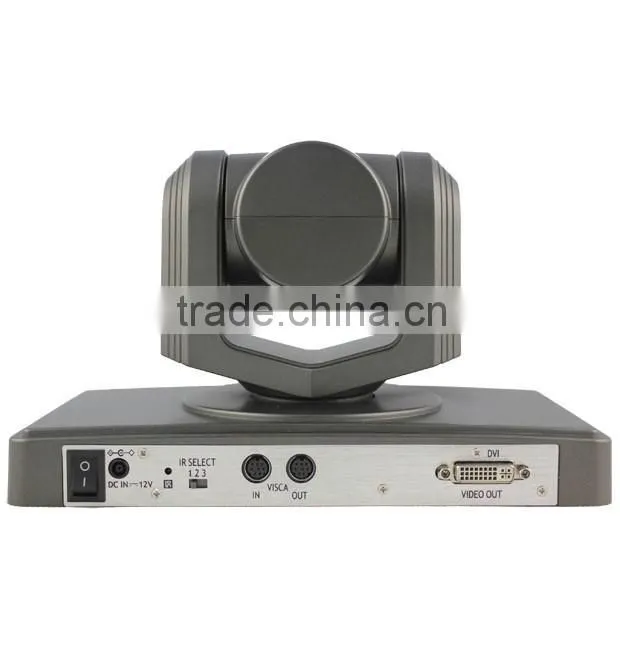

RS-232 Pelco-D Sony VISCA protocol DVI-I video utput 10X Optical Zoom 2.0 Megapixel HD video conferencing camera (SCV-HD388-K2)
2.1 Megapixel Full HD Camera experience 1080i@60 vivid images, equipped with 10x optical zoom lens, enhancing your video conferencing, distance learning, training meeting, courtrooms or remote medical with natural and smooth video images. DVI-I connector is suited for DVI-D analog component which provide high-quality video display.It support HD-SDI Video output for further distance transmission.
Features:
Private Tooling design High Definition PTZ camera
Fast and smooth video handling
Power ON-OFF switch
Work & Standby LED indicator
Speed Match
Auto/Manual focus/brightness/WB
RS-232C/VISCA Protocol
Lens/Dome OSD menu
Boundary scanning
Standby & wakeup status
Swap video format button
DVI Video output
Performance:
1920x1080 pixels progressive @30fps
10x optical zoom
F=5-50mm F2.0-2.8
HOV 51.8° ~5.86°
1/3” CMOS 2.1M
Pan ±175°
Tilt ±45°
64 preset positions
4 cruise lines
DC 12V, 2A
Dimension:
L 124mm x W 120mm x H145mm
220x175x220mm (Package)
N. Weight: 1.4kgs
G. Weight: 1.7kgs
Installation:
Desktop
Ceiling mount
Standard Tripod accessory
Model |
SVC-HD388-K2 |
||
|
Image SenSor |
Sensor |
1/3” CMOS, 2.1 M compatible |
|
Minimum Scene illumination |
0.1Lux |
||
White Balance |
AUTO/Manual |
||
Gain Control |
AUTO |
||
Back-light compensation |
ON/OFF |
||
Electronic shutter |
1/30~1/10000S |
||
S/N Ratio |
>50db |
||
Lens |
Focus |
AUTO |
|
Iris |
AUTO/Manual |
||
Zoom |
10 x Optical Zoom |
||
1/3.6model f=5-50mm |
|||
Video Output |
DVI |
||
Video format |
1080P@30,1080P@25,1080I@60, 1080I@50,720P@60,720P@50 |
||
Control Decoder |
EIA/RS-485 |
||
Communication |
EIA/RS-232 (Bidirectional) |
||
PTZ Control Protocol |
VISCA,PELCO-P,PELCO-D |
||
Baud Rate |
9600/38400 bps |
||
Patrol tours |
4 |
||
Preset |
64 |
||
Save status after Power off |
Support |
||
Speed Matching Function |
Support |
||
OSD Menu |
Support |
||
Image Auto Flip |
Support |
||
Pan Speed |
0-100 degrees/s |
||
Tilt Speed |
0-80 degrees/s |
||
Pan Rotation Angle |
359degrees |
||
Tilt Rotation Angle |
+45, -45 degrees |
||
Auto Pan Scan |
Support |
||
Boundary Scan |
0-359degrees (Programmable) |
||
Remoter Control |
IR Wireless remote control P/T/Z |
||
Power |
DC12V ±10% 1.2A |
||
Operation Temperature |
-10℃~60℃ |
||
Environmental humidity |
0-95%RH(non-condensation) |
||
Length X width X high |
250mm x 140mm x 145mm |
||
Weight |
900g/2600g(NET/PACKAGE) |
||
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
