Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18)

18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18)

18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) thumbnail-1
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) thumbnail-2
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) thumbnail-3
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) thumbnail-4
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) photo-1
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) photo-2
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) photo-3
18x Optical Zoom1/4 Exview CCD, Video Conference Camera System(SVC-HB04-18) photo-4
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SVC-HB04-18
Contact Supplier Request Quote Chat Now
Shenzhen Smart Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SMTSEC
Model Number SVC-HB04-18
Type Digital Camera
Style Dome Camera
Sensor CCD
Technology Infrared
Special Features Other, Color Video PTZ Camera

18x optical zoom1/4 Exview CCD, Video conference Camera(SVC-HB04-18)



Product Description

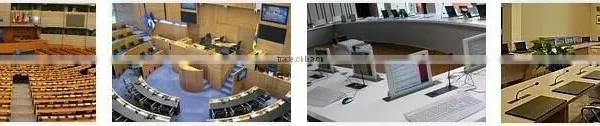

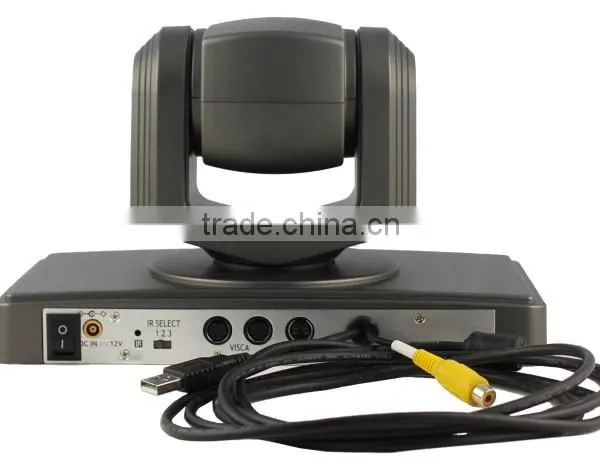

SVC-HB04 equipped with FCB-EX48EP Which is deliver 18x optical zoom super Video performance with 1/4 Exview CCD, it supports VISCA/RS232/RS485 PTZ Control. There are S-Video, AV video output connect, built in 360 degree continuously Pan movement, 90 degree Tilt and features with REV for up-side down installation. Which is Ideally suited for Web conferencing system, remote education, lecturing and Training room application.

Model Number SVC-HB04-18
Image Sensor Sensor SONY FCB-EX48EP 1/4-type EXview HAD CCD
Signal System PAL/NTSC
Illumination 1.0Lux/F1.4
White Balance Auto/Manual
Gain Control Auto
Back-light On /Off
compensation
E-Shutter 1 - 1/100,000s
Horizontal 550 TVL
Resolution
S/N Ratio >50db
Lens Focus f=4.1-73.8  F1.4 -3.0
Iris Auto/Manual
Zoom 18 Optical X 12 Digital Zoom
Video Output AV, S-VIDEO, USB Output (Optional)
Control Decoder Built-in decoder
Communication EIA/RS422, EIA/RS232(Bidirectional)
Interface
PTZ Control Protocol VISCA, PELCO-P, PELCO-D (optional)
Baud Rate 4800/9600bps
Patrol Lines 4 Patrol Lines
Preset Position 64 Preset Position
Power-off Protection Saved scanning or patrol line settings Automatically Before power off
Speed Matching Slow down camera Pan/Tilt movement speed while camera zooming in
OSD Menu To change parameters of camera or camera module from OSD Menu
Image Auto Flip Image Auto Flip
Pan Speed 1-280 degree per second
Tilt Speed 1-100 degree per second
Pan Rotation Angle 360 degree continuously
Tilt Rotation Angle 240 degree
Auto Pan Scan Support auto pan scanning
Boundary Scan 0-359 degree (programmable)
Remoter Control IR wireless remote controller P/T/Z
Power Supply DC12V±10%, 1.2A
Working Temperature 0-50℃
Environment Humidity 0-95%RH
Size(LxWxH) 124X120X145mm
Weight 1300g











Packaging & Shipping



China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)



•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.



Our Services



•All products have been checked and packaged in good condition before dispatch.

•All products have 1 year warranty.

18x optical zoom1/4 Exview CCD, Video conference Camera system(SVC-HB04-18)18x optical zoom1/4 Exview CCD, Video conference Camera system(SVC-HB04-18)18x optical zoom1/4 Exview CCD, Video conference Camera system(SVC-HB04-18)18x optical zoom1/4 Exview CCD, Video conference Camera system(SVC-HB04-18)18x optical zoom1/4 Exview CCD, Video conference Camera system(SVC-HB04-18)





 18x optical zoom1/4 Exview CCD, Video conference Camera system(SVC-HB04-18)
