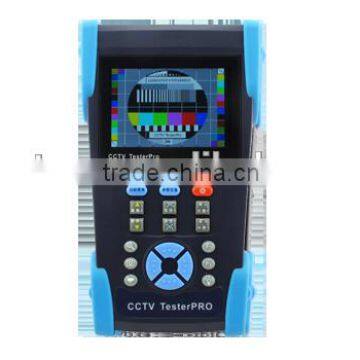

Wire Tracker low consumption PTZ address scan 3.5" LCD Wide viewing angle display CCTV ip camera Tester(HVT-6202)
- 10000 Piece / Pieces per Month
- Shenzhen China
- T/T D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Guangdong, China | Brand Name: | SMTSEC | Model Number: | HVT-6202 |
Product Description
Wire Tracker low consumption PTZ address scan 3.5" LCD Wide viewing angle display CCTV Tester(HVT-6202)
CCTV IP Camera Tester
Overview
The new CCTV tester is developed for the On-Site installation and maintenance of IP camera,analog camera and network device, with Video display, PTZ control, DC12v output power, Audio test, Color bar generator, RS 485 Data searching and Cable testing, which are the same to the previous models. The new developed functions include POE power supply testing, PING testing, IP address scan, Cable scan, Video snapshot, Video record, Image magnification, Port flicker, LED lamp etc. The new tester also has built in TDR cable testing, which is specialized designed for BNC cable testing in the security monitoring system. This function can accurately measure BNC cable and network cable’s break point and short-circuit location. The new tester designed with easy operation and portability makes it simple for a cctv technician or installer to install and maintain CCTV systems, improving work efficiency by reducing time in the field.
Features
—3.5 inch full-view TFT-LCD, 480(RGB)x320 NEW
—low consumption, work for 11 hours
—OSD menu, English, Chinese and other languages optional
—LCD screen brightness/contrast/color Saturation adjustable
—Cable scan, send the specific signal, easy to find the connected cable. NEW
—Automatically identify and adapt the video mode of NTSC and PAL
—Enhanced colorbar generator, by receiving the video color bar to test the video channel whether transmit normally NEW
—Moveable Micro SD NEW
—LED Lamp, easy to operate at night NEW
—User-defined shortcut keys(F1 and F2)NEW
—10x zoom,video image can be magnified to view the details, easy to use NEW
—Snapshot and save the current image as JPG file in the SD card NEW
—PING testing,test IP camera or other network devices’ethernet port whether work normally, and the IP address whether is right NEW
—IP address scan, quickly search the IP address for the connected IP camera and other network devices NEW
—POE voltage measurement, test the POE switch’s voltage to IP cameras, wireless AP device and other PD devices
—Device Port flicker, easy to find the connected POE switch port by sending special signals, the connected POE port will flicker at special frequency NEW
—Link monitor; check the setting IP address whether occupiedNEW
—TDR break point and short – circuit measurement( BNC cable, network cable etc) NEW
—PTZ address scan, search up the ID of PTZ camera.
—Network cable and Telephone cable testing, display the sequence of connection and the No of the LAN cable
—Multi-protocol. Supports more than thirty PTZ protocols. Such as PELCO-P, PELCO-D,
SAMSUNG
—Support RS232/RS485/RS422, rate 600 ~115200bps adjustable
—Lithium Ion Polymer Battery. The device employs advanced power control and protection circuit
—Display the data and image in on the screen at the same time
—Easy for use that the train is almost unnecessary
Parameters
Model | CCTV TESTER HVT-6202 | |
Video Test | ||
Signal mode | NTSC/PAL (Auto adapt) | |
Display | 3.5 inch digital TFT-LCD ,480(RGB)x 320 resolution | |
LCD adjustment | Brightness, Contrast, Saturation adjustable | |

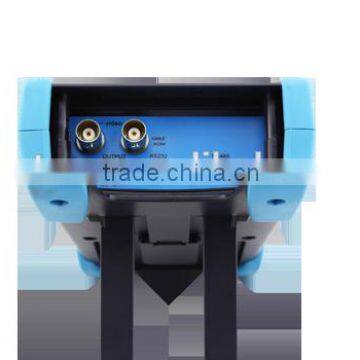

Video IN/OUT | 1 channel BNC Input & 1 channel Output | |
Video Output Mode | 1.0 Vp-p | |
Video Level test | ||
Level test | Video signals measured in IRE or mV | |
PTZ controller | ||
Communication | Support RS232 and RS485 | |
PTZ Protocol | Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc. | |
Baud Rate | 600,1200,2400,4800,9600,19200,57600,115200bps | |
Video Signal Generation | ||
Color bar generator | Output one channel PAL/NTSC color bar video signal for testing monitor or video cable.(red, green ,blue, white and black color ) | |
UTP CABLE TEST | ||
UTP cable test | Test UTP cable connection status and display in the screen. Read the number of the test box. | |
DC12V 1A power output | ||
DC12V power output | Output DC12V1A power for camera | |
Audio input test | ||
Audio input test | test the pickup and other audio equipments on the front-end | |
RS485 data analysis | ||
Data Monitor | Captures and analyzes the command data from controlling device | |
10 x zoom of image | ||
Image 10x zoom | 10x zoom image display and video out | |
Photograph,Video record, Record playback | ||
Photograph | snapshot and save the current image as JPG file | |
Video record | Video record and storage the file | |
Record playback | To view the storage file in the SD card | |
Port flicker | ||
Port flicker | Find the connected POE port quickly. | |
IP scan, Link monitor, PING test | ||
IP scan | Find out the connected IP camera or the other network equipment IP address quickly. | |
Link monitor | Check the IP address whether is occupied | |
PING testing | Test IP camera or Ethernet port of the other network equipment whether work normally, and check the IP address | |
Cable scan | ||
Cable scan | Search the cable by the audio signal | |
POE tester | ||
POE tester | Display the power supply voltage and cable connection states | |
TDR Tester | ||
TDR Tester | breakpoint and short circuit measurement(BNC cable, telephone cable) | |
POWER | ||
Power Adapter | DC 5V(1.5A) | |
Battery | Built-in 3.7V Lithium polymer battery ,3000mAh | |
Rechargeable | After charging 3-4 hour, working time lasts 11 hours | |
Low Consumption | Energy saving technology, the battery icon real-time display | |
Parameter | ||
Operation setting | English/Chinese and other languages OSD menu | |
Auto off | 5-60 (mins) | |
Keytone | On/Off | |
General | ||
Working Temperature | -10℃---+50℃ | |
Working Humidity | 30%-90% | |
Dimension /Weight | 194mm x 112mm x 48mm / 540g |
China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)
•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.
•All products have been checked and packaged in good condition before dispatch.
•All products have 1 year warranty.
