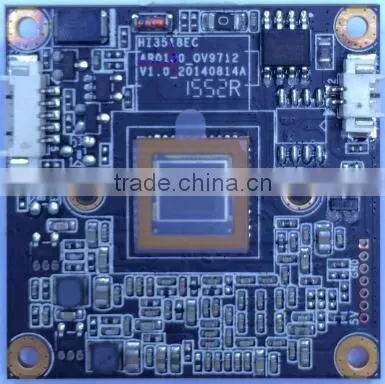

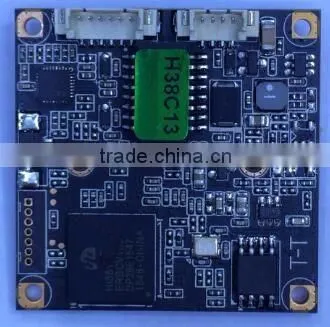

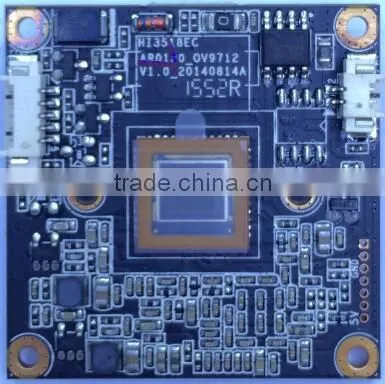

HD 960P 1.3MP IP Camera Module Hisilicon 3518E P2P 38X38 CCTV Security IP Board Camera (SIP-HS960PE)

HD 960P 1.3MP IP Camera Module Hisilicon 3518E P2P 38X38 CCTV Security IP Board Camera (SIP-HS960PE) thumbnail-1
HD 960P 1.3MP IP Camera Module Hisilicon 3518E P2P 38X38 CCTV Security IP Board Camera (SIP-HS960PE) thumbnail-2
HD 960P 1.3MP IP Camera Module Hisilicon 3518E P2P 38X38 CCTV Security IP Board Camera (SIP-HS960PE) photo-1
HD 960P 1.3MP IP Camera Module Hisilicon 3518E P2P 38X38 CCTV Security IP Board Camera (SIP-HS960PE) photo-2
US$ 11 - 12 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SMTSEC
Model Number:
SIP-HS960PE
Contact Supplier Request Quote Chat Now
Shenzhen Smart Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name SMTSEC
Model Number SIP-HS960PE
Type IP Camera
Sensor CMOS
Technology NetWork



Product Description

HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera   (SIP-HS960PE)



>HisiliconDSP32dual-core
>H.264,AVIvideoformat
>Streamrange:500-8000kbpsadjustable
>IE browser,Mobilephoneview,

>Clientmanagement

>SupportONVIF,NVRStorage,P2P
> IR CUT is not included


Model SIP-HS960PE
Camera Type HD 960P 1.3 Megapixel IP Camera Module
Camera
Image Sensor 1/3 inch Low illumination CMOS sensor
DSP Hisilicon  3518E DSP 32 dual-core , pure hardware compression
Day/Night Auto
IR-Cut Support (IR CUT is not included)
Min.Illumination Color 0.1Lux/F1.2,B/W 0.01 Lux/F1.2
Electronic Shutter 1/50(1/60)s-1/100,000s
Lens Mount CS Mount(Optional Board Mount)
Digital Zoom Support
Video
Compression Standard H.264
Compression Technology Dual-stream compression technology
System Structure Pure hardware compression, watchdog,8M FLASH,64M DDR2;
Video Frames  1-20fps Adjustable
Bitrate 500--8000Kbps Adjustable
Bitrate Control CBR/VBR/CVBR
Resolution Main Stream: 1280X960 16fps; Sub Stream:D1,VGA,CIF,QCIF
Parameter Settings Brightness, contrast, chroma saturation,Backlight Control,Mirror
Privacy Mask Support  4 area can be set
Image Capture Image quality , capture speed
Time and Title Transparency, Time position, Time Format, Title Content
Network
Protocol RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
Onvif Support Onvif 2.4
User Permission Multi-user Classification Management
Phone monitoring Support iPhone and android  Mobile phone view
SDK  Provide open SDK
Alarm Support Motion Detection, Linkage Alarm, Linkage recording, Video Loss Alarm
P2P Service P2P technical support, free DDNS
Network Interface 1 RJ45 Ethernet interface, 10/100M adaptation
Other
Work Environment -10°C- +60°C;≤95%
Power Supply DC 12V
Product Size 38X38X15mm
Package Size 38X38X15mm
Net Weight 0.2KG

 HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)






Packaging & Shipping



China Post (10-30 days)
EMS (5-15 working days)
DHL (3-5 working days)
UPS (3-5 working days)



•The most reliable, affordable way of shipping method deponds on your address.
•Online tracking number will be emailed to buyer through email.
•We dont take any responsibility for any custom delay.





Our Services





•All products have been checked and packaged in good condition before dispatch.

•All products have 1 year warranty.







HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)HD 960P 1.3MP IP camera module Hisilicon 3518E P2P 38X38 CCTV Security IP board camera (SIP-HS960PE)
