Galvanized road steel sign pole
1) Higher quality lower cost to win the competitive price
2) 3 production lines to ensure fast delivery
3) Skilled manufacturer, quality control and technical team
4) Warranty of quality : more than 20 years
street lamp poles: Material preparation-bending-welding-repair and grinding-reforming-flushing-fix bottom plate-welding bottom plate-opening door-welding door strip, electric strip, and locking-bending arm-hot dip galvanization-plastic powder painted-inspection-shipment.
We controlled the quality according to ISO9001:2008, every production processes has a squad leader to doubled check the quality. Our aim is to delivery the zero-defect products to our clients, and we solve all the quality problems in our factory before shipment.
| Shape of pole |
Round conical; Octagonal tapered; Straight square; Tubular stepped; Shafts are made of steel sheet folded into required shape and welded longitudinally by automaticarc welding machine. |
| Brackets/ Arm | Single or double brackets/ arms are in the shape and dimension as per customer's requirement. |
| Length | Within 14m once forming without slip joint |
| Wall thickness | 2.5mm-20mm |
| Application | Outdoor traffic signal, Road traffic signal, Street traffic signal |
| Welding | It has past flaw testing, internal and external double welding makes the welding beautiful in shape. It confirms with the international welding standard of CWB |
|
Jointing |
Jointing poles with insert mode, innerflange mode, face to face joint mode |
| Galvanizing | Hot dip galvanization with thickness of 80-100µm average in accordance with Chinese standardGB/T 13912-2002 or American standard ASTM A123, IS: 2626-1985. |
| Powder coating |
Pure polyester powder painting, color is optional according to RAL Color stardand. |
| Temperature range | 35 °C~+45 °C |
| Wind Resistance | Aganist wind pressure of 160Km/h |
| Manufacturing | According to GB/T 1591-1994 |
| Base plate mounted | Base plate is square, octagonal or round in shape with slotted holes for anchor bolt and dimension as per customer’s requirement. |
| Ground mounted | The length buried underground as per customer’s requirement |
| Quality Control | We control the quality according to the flow of ISO9001-2008. Quality is employed at every stage of production to ensure the product compliance to the specifications/standards. Careful inspection is carried out by well trained inspection engineers at every defined stage from raw material to finished product and delivery. Prototype assembly of towers is carried out in the plant. |
| Certificates | ISO9001-2008, SGS Audited Supplier, The AAA grade certificate of goodwill |

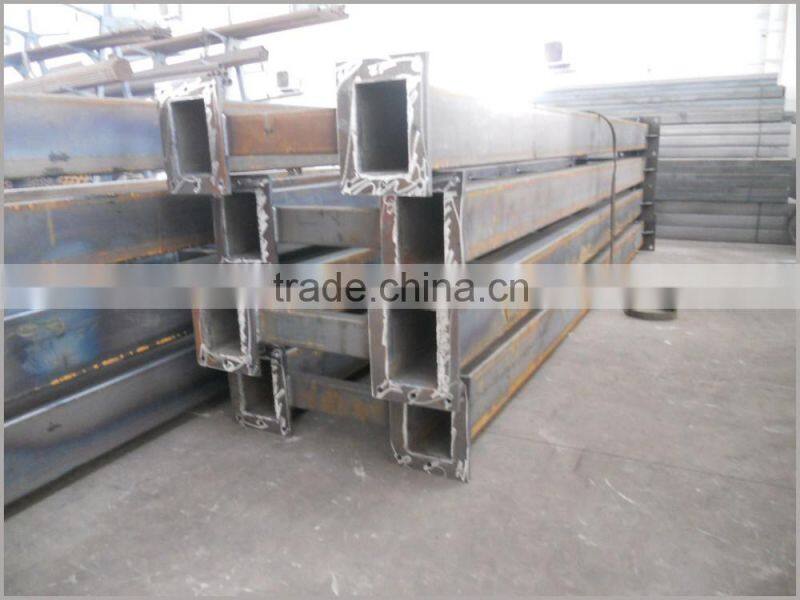

Half Finished Product (Black Pole)

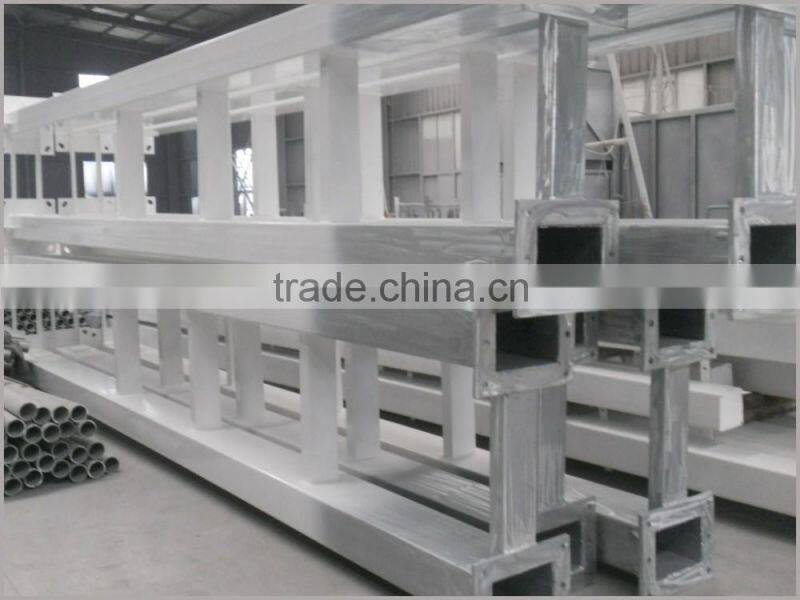

Hot dip galvanizing pole

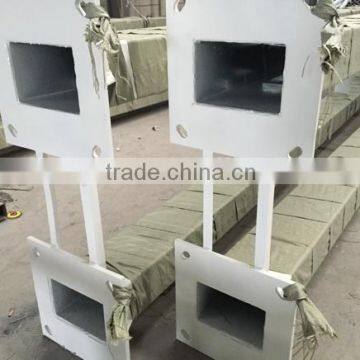

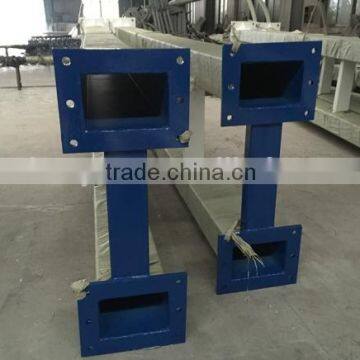

Pole with powder coating

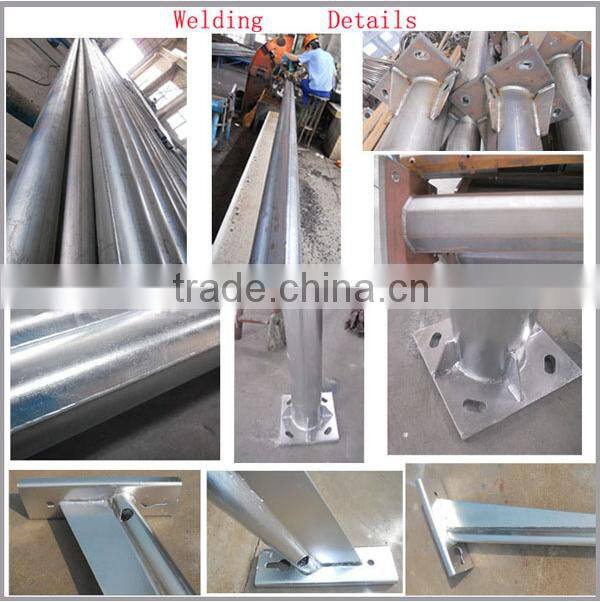

Welding details

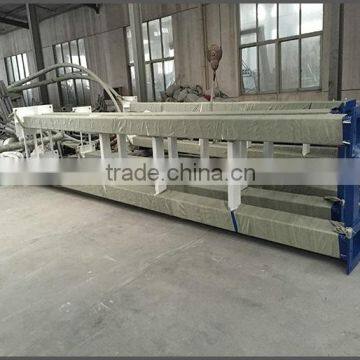

usually covered by woven bag, or following client's requirements, photos below for reference. and 15 days for a 40ft container quantity; or following the discussion between buyer and seller.
Our staff supply excellent after service, track and get the product information after our client got the products. We asked our client to fill a “Survey form for Satisfaction degree from Client”. We will solve the problems from client in 24 hours ,and we improve the quality and working method according to client’s good suggestions.
Welcome to contact us if you have interests. We are happy to receive your message. And we will give you best service.
